Name: TracoPower TEL 8-2415 DC/DC converter (print) 24 V DC 24 V DC 335 mA 8 W No. of outputs: 1 x Content 1 pc(s)
Brand: TracoPower
SKU: 3372832
Availability: BackOrder

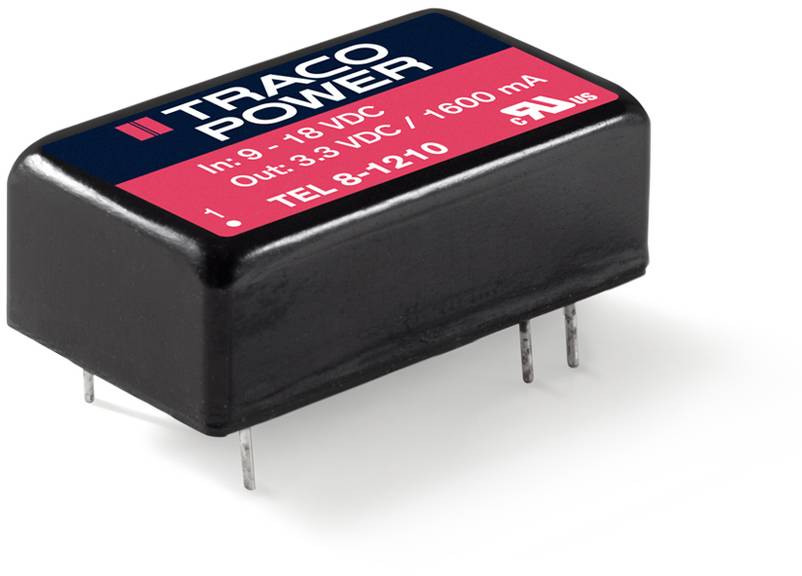

A black voltage converter with the inscription 'TRACO POWER'. Input: 18 VDC, Output: 3.3 VDC / 1600 mA, Model: TEL 8-1210.

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 10

Total (€ 27.99 / piece)

€ 279.90

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Product type: DC/DC converter (print)

Type: TEL 8-2415

Nominal voltage: 24 V DC

Min. input voltage: 18 V DC

Input voltage (max.): 36 V DC

No. of outputs: 1 x

Output voltages: 24 V DC

Max. output current: 335 mA

Output current (max.) - rounded: 335 mA

Efficiency (max.): 86 %

: 8 W

Insulation voltage: 1500 V DC

Enclosure: DIL 16

Connection: Solder pins

Operating temperature (min.): -40 °C

Operating temperature (max.): 80 °C

Dim: (L x W x H) 24.1 x 12.3 x 14 mm

Height: 14 mm

Length: 24.1 mm

Width: 12.3 mm

Output voltage (max.): 24 V DC

Output voltage (min.): 24 V DC

Weight: 6.1 g

Content: 1 pc(s)

UKCA: yes

Compliance & Certifications

Certified by EU Garan

Variants(All information include VAT, plus shipping costs)

Output voltages

Input voltage (max.)

Output current (max.) - rounded

Output voltage (max.)

Nominal voltage

Min. input voltage

TracoPower DC/DC converter (print) 12 V DC 12 V DC 665 mA 8 W No. of outputs: 1 x Content 10 pc(s)

Item no:2794051

Unavailable

Conrad Electronic

12 V DC

18 V DC

665 mA

12 V DC

9 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 244.99^*

TracoPower DC/DC converter (print) 12 V DC 12 V DC, -12 V DC 335 mA 8 W No. of outputs: 2 x Content 10 pc(s)

Item no:2794053

Unavailable

Conrad Electronic

12 V DC

18 V DC

335 mA

12 V DC

9 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 265.00^*

TracoPower DC/DC converter (print) 12 V DC 15 V DC 535 mA 8 W No. of outputs: 1 x Content 10 pc(s)

Item no:2794052

Unavailable

Conrad Electronic

15 V DC

18 V DC

535 mA

15 V DC

12 V DC

9 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 244.99^*

TracoPower DC/DC converter (print) 12 V DC 15 V DC, -15 V DC 265 mA 8 W No. of outputs: 2 x Content 10 pc(s)

Item no:2794054

Unavailable

Conrad Electronic

15 V DC

18 V DC

265 mA

15 V DC

12 V DC

9 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 265.00^*

TracoPower DC/DC converter (print) 12 V DC 3.3 V DC 1.6 A 8 W No. of outputs: 1 x Content 10 pc(s)

Item no:2794049

Unavailable

Conrad Electronic

3.3 V DC

18 V DC

1.6 A

3.3 V DC

12 V DC

9 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 244.99^*

TracoPower DC/DC converter (print) 12 V DC 5 V DC 600 mA 8 W No. of outputs: 1 x Content 10 pc(s)

Item no:2794050

Unavailable

Conrad Electronic

5 V DC

18 V DC

600 mA

5 V DC

12 V DC

9 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 244.99^*

TracoPower DC/DC converter (print) 24 V DC 12 V DC 665 mA 8 W No. of outputs: 1 x Content 10 pc(s)

Item no:2794057

Unavailable

Conrad Electronic

12 V DC

36 V DC

665 mA

12 V DC

24 V DC

18 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 244.99^*

TracoPower DC/DC converter (print) 24 V DC 12 V DC, -12 V DC 335 mA 8 W No. of outputs: 2 x Content 10 pc(s)

Item no:2794060

Unavailable

Conrad Electronic

12 V DC

36 V DC

335 mA

12 V DC

24 V DC

18 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 265.00^*

TracoPower DC/DC converter (print) 24 V DC 15 V DC 535 mA 8 W No. of outputs: 1 x Content 10 pc(s)

Item no:2794058

Unavailable

Conrad Electronic

15 V DC

36 V DC

535 mA

15 V DC

24 V DC

18 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 244.99^*

TracoPower DC/DC converter (print) 24 V DC 24 V DC 335 mA 8 W No. of outputs: 1 x Content 10 pc(s)

Item no:2794059

Unavailable

Conrad Electronic

24 V DC

36 V DC

335 mA

24 V DC

18 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 244.99^*

Documents & Downloads

Datasheet

Datasheet 3372832 TracoPower TEL 8-2415 DC/DC converter (print) 24 V DC 24 V DC 335 mA 8 W No. of outputs: 1 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3372832 TracoPower TEL 8-2415 DC/DC converter (print) 24 V DC 24 V DC 335 mA 8 W No. of outputs: 1 x Content 1 pc(s)

Warranty Terms

Warranty Terms 3372832 TracoPower TEL 8-2415 DC/DC converter (print) 24 V DC 24 V DC 335 mA 8 W No. of outputs: 1 x Content 1 pc(s)

Description

DC/DC converter TEL 8 series

Ultra-compact 8W converter in the DIL-16 metal housing, 2:1 input range, input filter according to EN 55022, class A, short-circuit proof.
