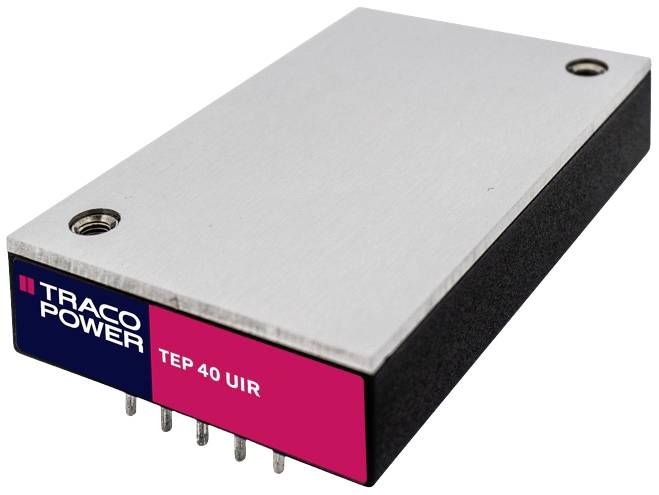

TracoPower TEP 40-7218UIR DC/DC converter (print) 830 mA 40 W No. of outputs: 1 x Content 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 144.99 / piece)
€ 144.99
incl. VAT
14-day return policy included
Technical specifications
- Product type
DC/DC converter (print)
- Type
TEP 40-7218UIR
- Min. input voltage
14 V DC
- Input voltage (max.)
160 V DC
- No. of outputs
1 x
- Max. output current
830 mA
- Output current (max.) - rounded
830 mA
- Efficiency (max.)
90 %
40 W
- Insulation voltage
3000 V DC
- Connection
Solder pins
- PSU features
DC-to-DC converter
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
85 °C
- Dim
(L x W x H) 57.9 x 36.8 x 12.7 mm
- Height
12.7 mm
- Length
57.9 mm
- Width
36.8 mm
- RoHS-compliant
Yes
- Output voltage (max.)
48.0 V DC
- Output voltage (min.)
48.0 V DC
- Weight
64 g
- Content
1 pc(s)
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2300183 TracoPower TEP 40-7218UIR DC/DC converter (print) 830 mA 40 W No. of outputs: 1 x Content 1 pc(s)
Datasheet 2300183 TracoPower TEP 40-7218UIR DC/DC converter (print) 830 mA 40 W No. of outputs: 1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 2300183 TracoPower TEP 40-7218UIR DC/DC converter (print) 830 mA 40 W No. of outputs: 1 x Content 1 pc(s)
