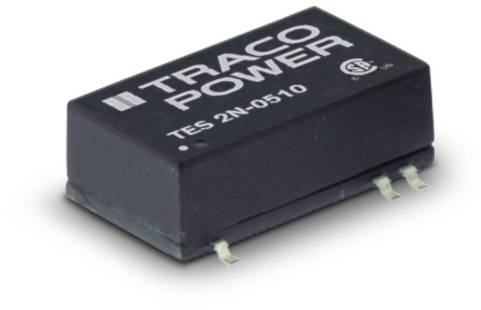

TracoPower TES 2N-4821 DC/DC converter (SMD) 48 V DC 5 V DC 200 mA 2 W No. of outputs: 2 x Content 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 30.99 / piece)
€ 30.99
incl. VAT
14-day return policy included
Technical specifications
- Product type
DC/DC converter (SMD)
- Type
TES 2N-4821
- Nominal voltage
48 V DC
- Min. input voltage
4.5 V DC
- Input voltage (max.)
5.5 V DC
- No. of outputs
2 x
- Output voltages
5 V DC
- Max. output current
200 mA
- Output current (max.) - rounded
200 mA
- Efficiency (max.)
71 %
2 W
- Insulation voltage
1500 V DC
- Enclosure
SMD
- Connection
SMD
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
85 °C
- Dim
(L x W x H) 24 x 18.1 x 9 mm
- Height
9 mm
- Length
24 mm
- Width
18.1 mm
- Output voltage (max.)
5 V DC
-5 V DC
- Output voltage (min.)
5 V DC
-5 V DC
- Weight
51 g
- Content
1 pc(s)
- Type
TES 2N-4821
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 1510240 TracoPower TES 2N-4821 DC/DC converter (SMD) 48 V DC 5 V DC 200 mA 2 W No. of outputs: 2 x Content 1 pc(s)
Datasheet 1510240 TracoPower TES 2N-4821 DC/DC converter (SMD) 48 V DC 5 V DC 200 mA 2 W No. of outputs: 2 x Content 1 pc(s)
Warranty Terms
Warranty Terms 1510240 TracoPower TES 2N-4821 DC/DC converter (SMD) 48 V DC 5 V DC 200 mA 2 W No. of outputs: 2 x Content 1 pc(s)
Description
SMD package with low profile, 2:1 input range, input/output insulation 1500 V/DC, input filter according to EN 55022, class A, short-circuit proof. Suitable for lead-free soldering process after IPC J-STD-020C.
This text is machine translated.
This text is machine translated.
