Name: TracoPower TSPC 080-124 Rail mounted PSU (DIN) 24 V DC 3.3 A 80 W No. of outputs:1 x Content 1 pc(s)
Brand: TracoPower
SKU: 514680
Availability: InStock

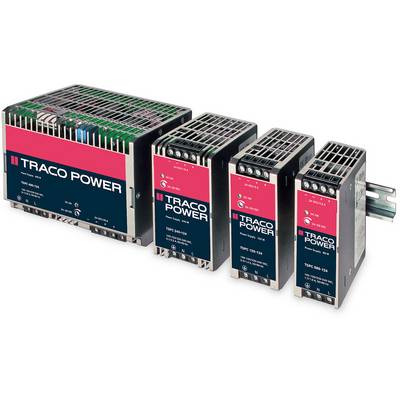

'TRACO POWER' power supplies in various sizes, mounted on a DIN rail. Ideal for power supply in industrial applications.

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Fri 6 Nov

9 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 114.99 / piece)

€ 114.99

incl. VAT

Only 9 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

TracoPower TSPC 080-124 Rail mounted PSU (DIN) 24 V DC 3.3 A 80 W No. of outputs:1 x Content 1 pc(s)

DC-OK Signal
Shock and vibration protection
Industrial safety approval package
Input voltage range: 85-132 / 187-264 V AC
1 phase
Output: 24V DC 3.3A 80W
Switched Mode
Termination type: Screw terminals

Technical specifications

Nominal input voltage: 115 V/AC
230 V/AC

Type: Switched Mode

Product type: Rail mounted PSU (DIN)

Min. input voltage: 85 V AC

Output voltage: 24 V DC

Input voltage: 85-132 / 187-264 V AC

Input voltage (max.): 264 V AC

Max. output current: 3.3 A

Output current (max.) - rounded: 3.3 A

: 80 W

Output type (power supply units): Fixed voltage

Phases: 1

Output voltage (nominal): 24 V DC

No. of outputs: 1 x

Connection: Screw terminal

Dim: (W x H x D) 40 x 110 x 110 mm

Weight: 400 g

Output voltage (max.): 28 V DC

Output voltage (min.): 24 V DC

Operating temperature (max.): +70 °C

Max. operating temperature (derating): 60 °C

Operating temperature (min.): -25 °C

Manufacturer part #: TSPC 080-124

Content: 1 pc(s)

PSU features: ATEX certificate

Width: 40 mm

Height: 110 mm

Type: TSPC 080-124

Efficiency: 92 %

Depth: 110 mm

: 80 W

Connections: Screw terminals

Output current (details): 3.3 A

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 514680 TracoPower TSPC 080-124 Rail mounted PSU (DIN) 24 V DC 3.3 A 80 W No. of outputs:1 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 514680 TracoPower TSPC 080-124 Rail mounted PSU (DIN) 24 V DC 3.3 A 80 W No. of outputs:1 x Content 1 pc(s)

Warranty Terms

Warranty Terms 514680 TracoPower TSPC 080-124 Rail mounted PSU (DIN) 24 V DC 3.3 A 80 W No. of outputs:1 x Content 1 pc(s)

Description

TSPC 080-124 industrial power supply with 24V DC 3.3A 80W output from TracoPower's TSPC series of high performance DIN rail power supplies, designed for harsh industrial environments.

Based on the popular the manufacturer's popular TSP series but with reduced electrical features, these power supplies are easy to install and cost efficient and represent a reliable solution for basic applications.

Excellent electrical specifications and high immunity against electrical disturbances makes these compact modules the best choice for reliable industrial systems and machines.

All models provide a Power-Good signal for system applications and the entire series complies with the latest safety and EMC standards for industrial environments and include ATEX EN 60079 certification and IEC 60079 test report for applications in hazardous locations.
