Name: Trend Networks TRADE163008 Trade-In LanTEK IV-S-500 CH/PL Cable certification tester 1 Set
Brand: Trend Networks
SKU: 3209142
Availability: BackOrder

Two blue cable testers with accessories and a blue case marked 'Trend Networks'. Ideal for network analysis.

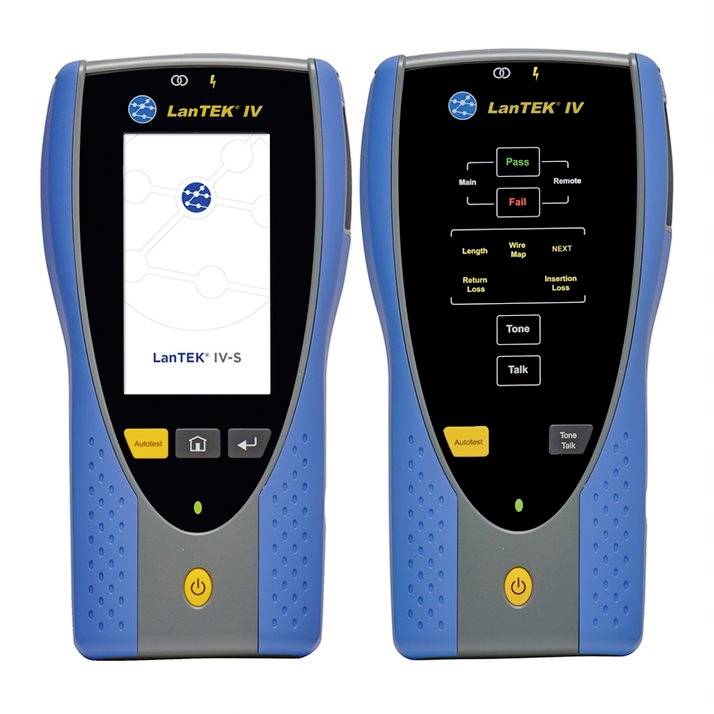

'LanTEK IV Cable Certifier' shows a device in the foreground with a touchscreen. Displays include 'Pass' and 'Fail' for test results.

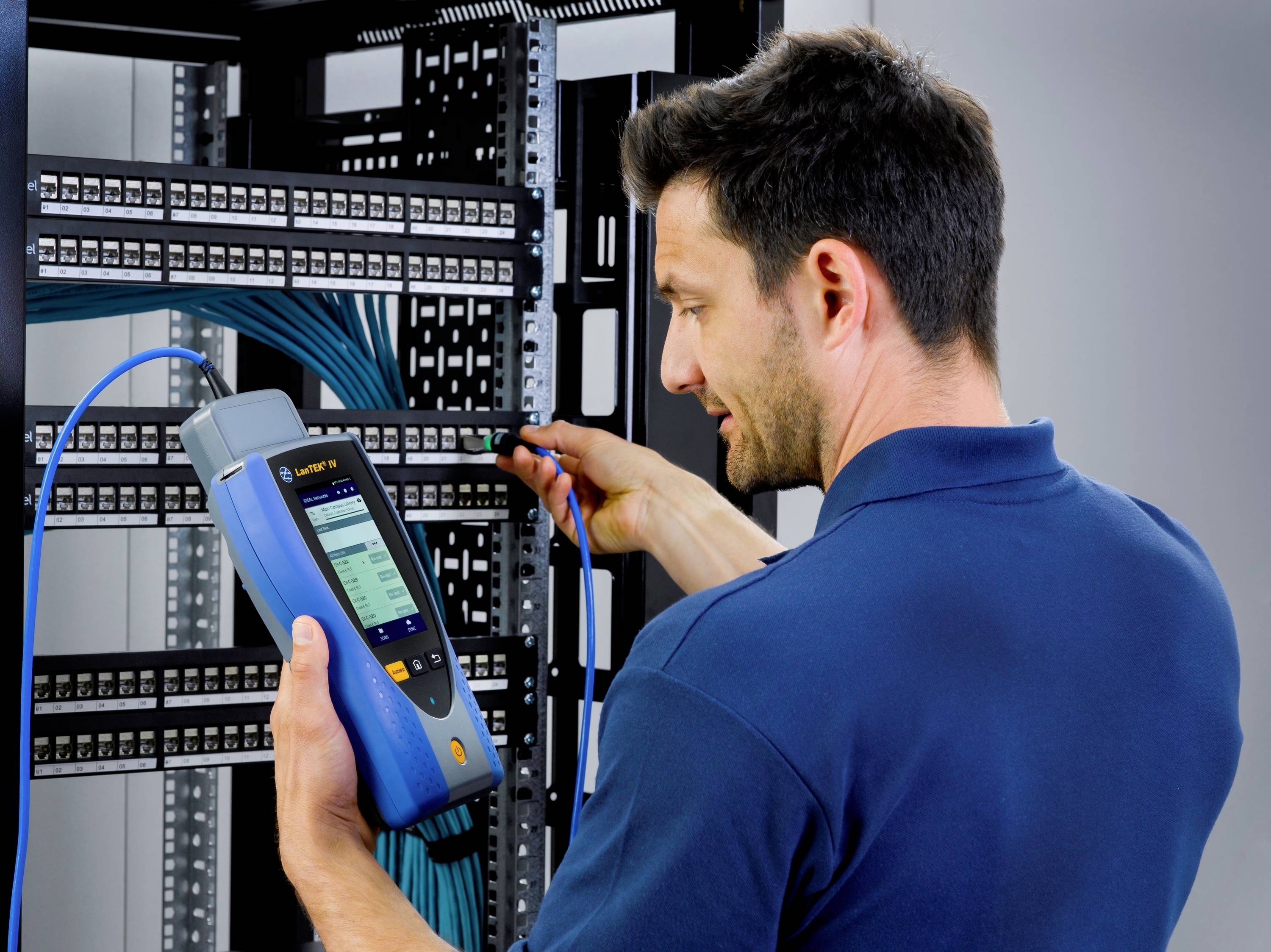

A technician is testing cable connections in a server room with a measuring device to carry out network improvements and troubleshooting.

1/3

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 12 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 16,025.00 / piece)

€ 16,025.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Trade-In Trade-In LanTEK IV-500 Cable certifier for acceptance measurements up to CAT. 6A/ISO class EA upon return of an old/defective cable certified professional

Frequency range up to 500 MHz
7 seconds test duration with storage for CAT. 5e/6 + 6A
Live wiring test
Measurement parameters for TCL and PoE DCRU
Anyware Cloud test management software
PASS/FAIL result via LED display directly on VisiLINQ adapter
TeamViewer support
WiFi

Technical specifications

Product type: Cable certification tester

Compatible with: Trend Networks

Type: Trade-In LanTEK IV-S-500 CH/PL

Documents & Downloads

Datasheet

Datasheet 3209142 Trend Networks TRADE163008 Trade-In LanTEK IV-S-500 CH/PL Cable certification tester 1 Set

User & Safety Instructions

User & Safety Instructions 3209142 Trend Networks TRADE163008 Trade-In LanTEK IV-S-500 CH/PL Cable certification tester 1 Set

Description

Trade-in Program - This item is only available when returning an old/broken cable certified company. The LanTEK IV-S-500 cable certified for copper and glass fiber cables including measurement of TCL/ELTCTL and DCRU - resistance asymmetry for certifying transmission lines according to the standards TIA/ISO/IEC measuring range up to 500 MHz/Cat. 6A/ISO-CLASS EA. The VisiLINQ™ permanent link adapter allows you to start tests directly on the adapter with PASS/FAIL results on both sides via the LED display. The RJ45 insert on the VisiLINQ™ Permanent Link Module is verified for up to 2000 mating cycles and can be replaced on site. The shortest measurement time of just 7 seconds for running and storing tests on Category 6A cables. The new TREND Anyware Cloud management system enables real-time collaboration between project managers and service engineers, pre-configuration of measurement settings, free storage, easy location of project files (including cable planning, videos and images), sharing links to test reports, WalkMe Introduction Program and Fleet Manager Device Management System, also available as a desktop system. There is a selection of adapter options for copper and fiber. The Team Viewer Live Support via the Anyware Cloud allows you to connect to the LanTEK IV to support troubleshooting. Extensive connection options like WLAN, USB A, USB C and label printer support. Clear user interface with high-resolution and impact-resistant touch-screen.

This text is machine translated.

Features

Certification: Frequency range up to 500 MHz, TIA CAT. 5e,6.6A / ISO class C,E,EA, including measurement of TCL/ELTCTL and DCRU
Easy setup: Set up the project on the same screen, configure copper and fiber measurements, and start the test
Live Wiring Test - This test shows a real-time wiring test without a complete autotest
DCRU - Resistance asymmetry: Measure resistance unbalance to ensure that the cabling meets the latest PoE requirements
TCL/ELTCTL: Measurement to meet symmetry requirements for optimal performance in noisy environments
VisiLINQ Permanent Link Adapter - Smarter, not harder to work: The VisiLINQ enables the service technician to start the tests and get a PASS/FAIL result through the LED indicator on both sides of the adapters. The measurement is started conveniently with the TEST button on the VisiLINQ
Simple project navigation with drag & drop in a cloud solution: Reducible folders make it easier to navigate between building/room/cabinet/rack like never before
Avoiding expensive configuration errors: Pre-configuration of the entire project via TREND Anyware Cloud
Live support: Online connection to the LanTEK IV-S reduces time spent troubleshooting, improves collaboration, and avoids unnecessary reruns

Scope of delivery

LanTEK IV-S 500 hand-and-end device
2x Li-Ion batteries
2x universal power supply
2x carrying strap
Short user guidelines
Carrying case
2x CAT. 6A RJ45 permanent link adapter Visilinq
2x CAT. 6A/6/5e RJ45 channel adapter

System requirements

Windows, iOS, Android
