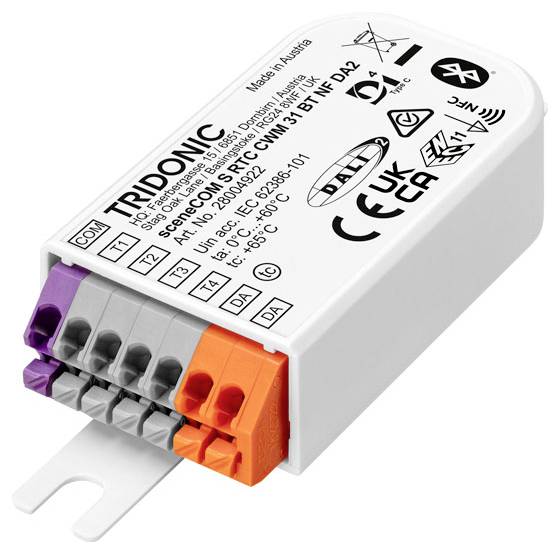

Tridonic LED controller DALI 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- Power consumption maximum 30 mA
- Product type
LED controller
- Operating current
30 mA
- Dim
(L x W x H) 80.07 x 30 x 15.3 mm
- Operating voltage
9.5 V
22.5 V
- Protection class
IP20
- LED driver features
DALI
IP20
- No. of inputs
4 x
- Weight
0.018 kg
- Width
30 mm
- Height
15.3 mm
- Length
80.07 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3557782 Tridonic LED controller DALI 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3557782 Tridonic LED controller DALI 1 pc(s)
Description
DALI-2 Application Controller for the management of small and medium-sized room/area lighting systems, can be easily integrated into the junction box behind the sensor interface.
Ultra-compact dimensions and new housing with removable mounting flaps enable the use as light controller for stand-alone and networked applications.
Support of the complete Tridonic ballasts with DALI and DALI-2, as well as the ballasts certified by other manufacturers with DALI and DALI-2 Secure for the future with simple firmware update via Bluetooth APP (SCS commissioning).
This text is machine translated.
Ultra-compact dimensions and new housing with removable mounting flaps enable the use as light controller for stand-alone and networked applications.
Support of the complete Tridonic ballasts with DALI and DALI-2, as well as the ballasts certified by other manufacturers with DALI and DALI-2 Secure for the future with simple firmware update via Bluetooth APP (SCS commissioning).
This text is machine translated.
Features
- Functions:
- DALI addressing
- DALI grouping
- -Sensor-based automation including presence/motion detection, daylight-dependent control
- -Static and dynamic Tunable White applications
- -Expandable with basicDIM Wireless
- -Mobile commissioning and control APP with intuitive user interface, available for Android and iOS
- -Support of the adaptive SWARM module
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
