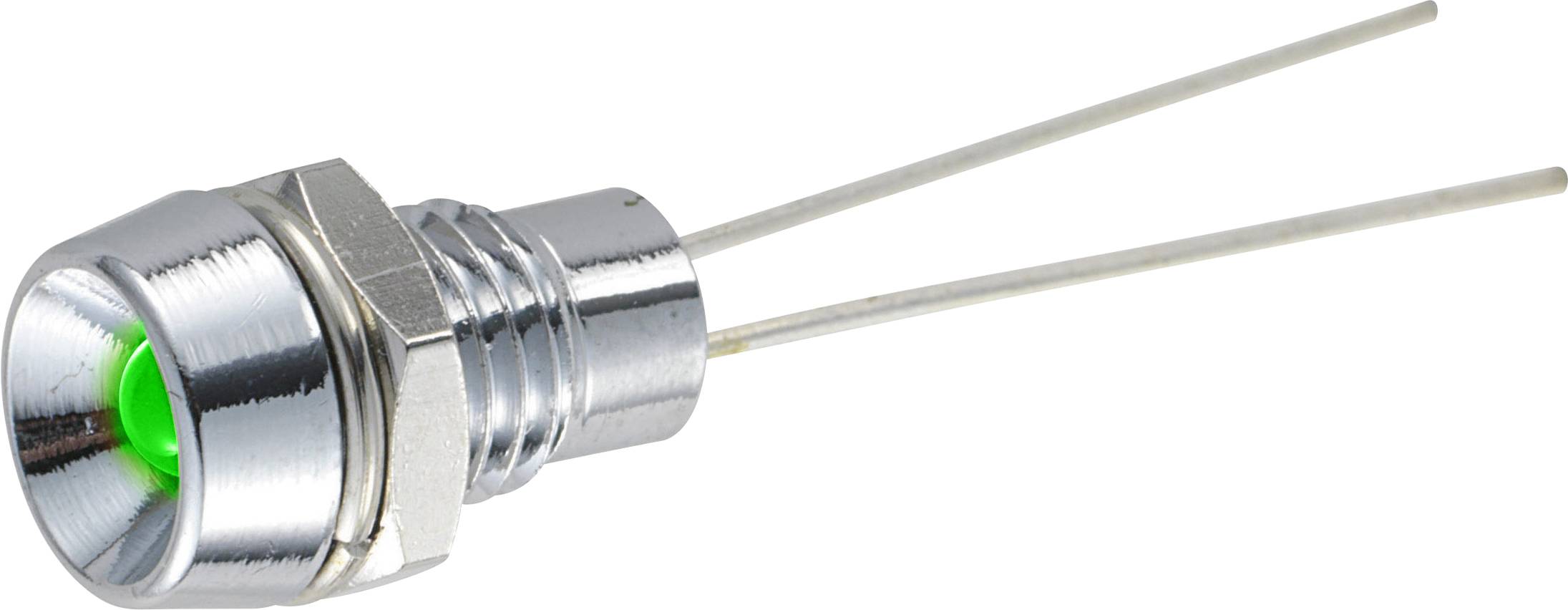

TRU COMPONENTS 1587947 LED indicator light Green 2.1 V 20 mA 45 mcd
EAN:
Part number:
Item no:
Product type
LED indicator light
Forward voltage U(F)
2.1 V
Forward current I(F)
20 mA
Recess diameter
6.2 mm
Light intensity I(V)
45 mcd
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.09
10
8% = € 0.16
€ 1.93
25
11% = € 0.22
€ 1.87
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.09 / piece)
€ 2.09
plus VAT.
Highlights & Details
LED indicator light Green 2.1 V - 20 mA SCI R9-1612, GREEN
Our service for you
Technical specifications
- Lens: diffuse
- Product type
LED indicator light
- Type
TC-R9-1612, GREEN
- Factory colour
Green
- Forward voltage U(F)
2.1 V
- Forward current I(F)
20 mA
- Recess diameter
6.2 mm
- Front panel thickness
max. 3.5 mm
- Case colour
Chrome
- Material
Brass
Phenol
- Material properties
shiny
- Mounting type
Screw
- Light intensity I(V)
45 mcd
- Radiation angle
50°
- LED features
Built-in reflector
LED 3 mm
- Connection
Soldering
- Min. temperature
-25 °C
- Max. temperature
85 °C
- RoHS-compliant
Yes
- Content
1 pc(s)
