Name: TRU COMPONENTS EMC shield clamp Terminal Ø (max.) 37 mm Board thickness (max.) 1 mm Spring steel, galvanized Silver 1 pc
Brand: TRU COMPONENTS
SKU: 3758733
Availability: InStock

Silver metal bracket clip with two curved spring arms and a perforated mounting base, shown on a white background.

Chrome U-shaped orthodontic dental retainer or mouthguard with side adjustment holes on a white background

Close-up of two black cables joined by a silver metal clamp, showing a braided inner core on a gray background.

1/4

Product type

EMC shield clamp

Material

Spring steel, galvanized

Clamp Ø

30 mm

Terminal Ø (max.)

37 mm

Mounting hole

3.2 mm

4.2 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

36 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1.29 / piece)

€ 1.29

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

TRU COMPONENTS EMC shield clamp 30-37 mm

Covered terminal Ø: 30 to 37 mm
Mounting hole diameter: 3.2 mm (2 holes), 4.2 mm (2 holes)
Material: Galvanized 65Mn spring steel (blue zinc plated)
Board thickness (max.): 1 mm

Technical specifications

Clamp Ø range: 30-37 mm

Product type: EMC shield clamp

Factory colour: Silver

Material: Spring steel, galvanized

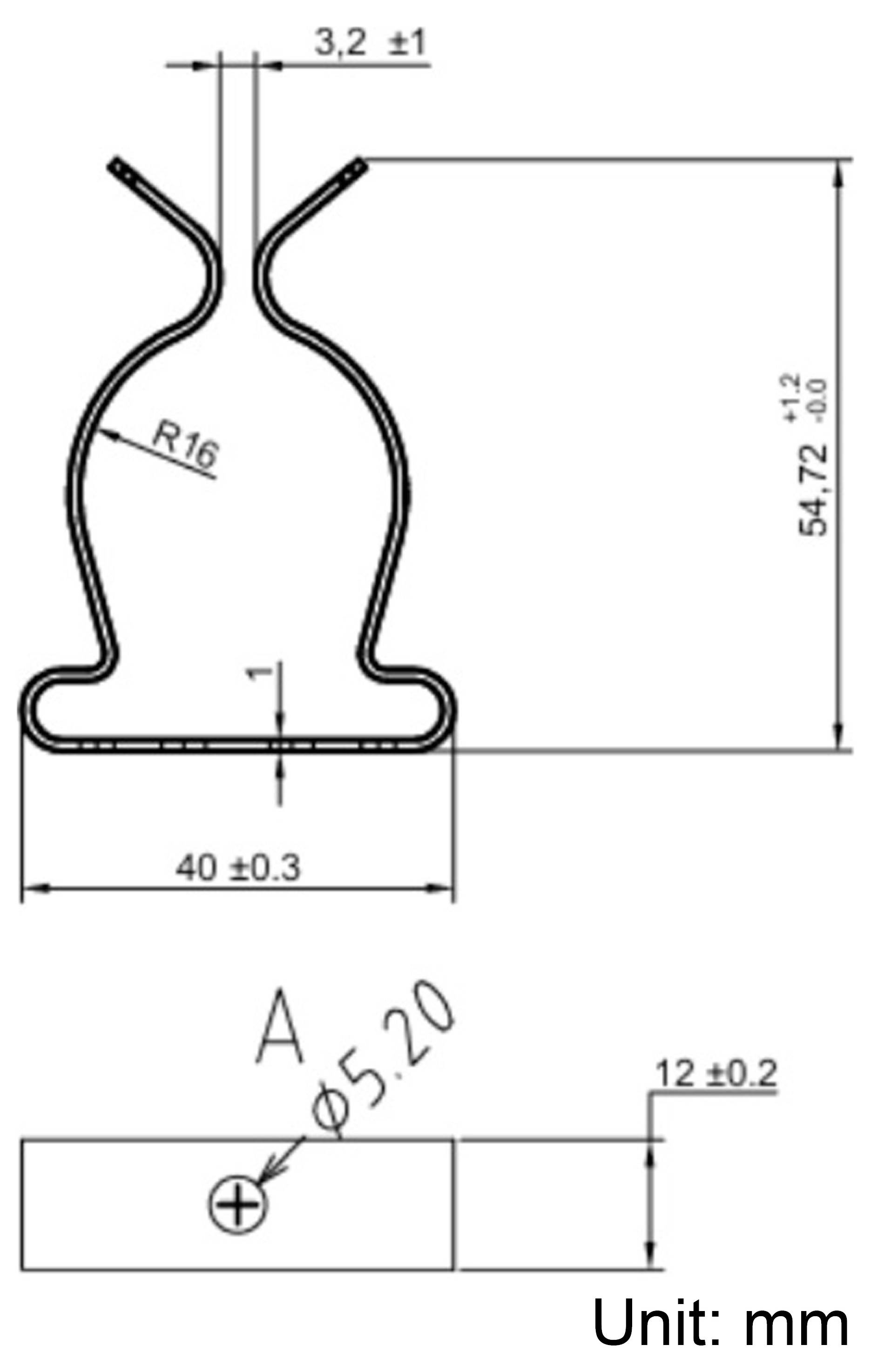

Length: 54.72 mm

Width: 40 mm

Height: 12 mm

Dim: (L x W x H) 54.72 x 40 x 12 mm

Clamp Ø: 30 mm

Terminal Ø (max.): 37 mm

Mounting hole: 3.2 mm
4.2 mm

Board thickness (max.): 1 mm

Min. temperature: -20 °C

Max. temperature: 70 °C

Weight: 16.2 g

Content: 1 pc(s)

Manufacturer part #: TC-15034932

Type: TC-15034932

Plastic free packaging: Plastic-free packaging

Variants(All information include VAT, plus shipping costs)

Clamp Ø

Mounting hole

Terminal Ø (max.)

TRU COMPONENTS EMC shield clamp Terminal Ø (max.) 37 mm Board thickness (max.) 1 mm Spring steel, galvanized Silver 1 pc(s)

Item no:3758733

Fast track dispatch on Thu 29 Oct

36 Piece(s)Conrad Electronic

This article

30 mm

3.2 mm

37 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1.29^*

TRU COMPONENTS EMC shield clamp Terminal Ø (max.) 11 mm Board thickness (max.) 0.5 mm Spring steel, galvanized Silver 1 pc(s)

Item no:3758727

Fast track dispatch on Thu 29 Oct

57 Piece(s)Conrad Electronic

8 mm

3.2 mm

11 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 0.79^*

TRU COMPONENTS EMC shield clamp Terminal Ø (max.) 17 mm Board thickness (max.) 0.5 mm Spring steel, galvanized Silver 1 pc(s)

Item no:3758728

Fast track dispatch on Thu 29 Oct

62 Piece(s)Conrad Electronic

11 mm

3.2 mm

17 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 0.83^*

TRU COMPONENTS EMC shield clamp Terminal Ø (max.) 22 mm Board thickness (max.) 0.5 mm Spring steel, galvanized Silver 1 pc(s)

Item no:3758731

Fast track dispatch on Thu 29 Oct

70 Piece(s)Conrad Electronic

17 mm

3.2 mm

22 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 0.89^*

TRU COMPONENTS EMC shield clamp Terminal Ø (max.) 3 mm Board thickness (max.) 0.5 mm Spring steel, galvanized Silver 1 pc(s)

Item no:3758730

Fast track dispatch on Thu 29 Oct

57 Piece(s)Conrad Electronic

1.5 mm

3.2 mm

3 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 0.63^*

TRU COMPONENTS EMC shield clamp Terminal Ø (max.) 30 mm Board thickness (max.) 0.5 mm Spring steel, galvanized Silver 1 pc(s)

Item no:3758734

Fast track dispatch on Thu 29 Oct

96 Piece(s)Conrad Electronic

22 mm

3.2 mm

30 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 0.95^*

TRU COMPONENTS EMC shield clamp Terminal Ø (max.) 48 mm Board thickness (max.) 1 mm Spring steel, galvanized Silver 1 pc(s)

Item no:3758732

Fast track dispatch on Thu 29 Oct

86 Piece(s)Conrad Electronic

38 mm

3.2 mm

48 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1.29^*

TRU COMPONENTS EMC shield clamp Terminal Ø (max.) 6 mm Board thickness (max.) 0.5 mm Spring steel, galvanized Silver 1 pc(s)

Item no:3758726

Fast track dispatch on Thu 29 Oct

27 Piece(s)Conrad Electronic

3 mm

3.2 mm

6 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 0.69^*

TRU COMPONENTS EMC shield clamp Terminal Ø (max.) 8 mm Board thickness (max.) 0.5 mm Spring steel, galvanized Silver 1 pc(s)

Item no:3758729

Fast track dispatch on Thu 29 Oct

27 Piece(s)Conrad Electronic

6 mm

3.2 mm

8 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 0.73^*

Documents & Downloads

Datasheet

Datasheet 3758733 TRU COMPONENTS EMC shield clamp Terminal Ø (max.) 37 mm Board thickness (max.) 1 mm Spring steel, galvanized Silver 1 pc

User & Safety Instructions

User & Safety Instructions 3758733 TRU COMPONENTS EMC shield clamp Terminal Ø (max.) 37 mm Board thickness (max.) 1 mm Spring steel, galvanized Silver 1 pc
