TRU COMPONENTS TC-11193848 Toggle switch 12 V DC 20 A 1 x Off/On latch 1 pc(s)

A toggle switch with a metal lever in the 'Off' position, terminal connections at the bottom, suitable for 20A at 12VDC.

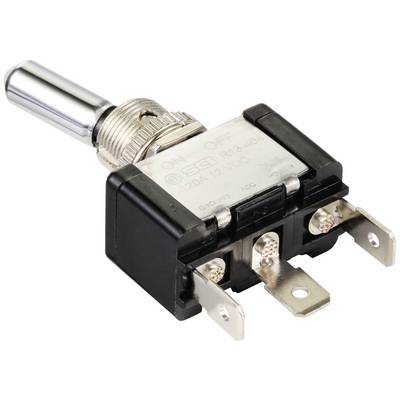

A toggle switch with a metal lever, marked with 'ON' and 'OFF', has three terminals on its underside, used for electrical connections.

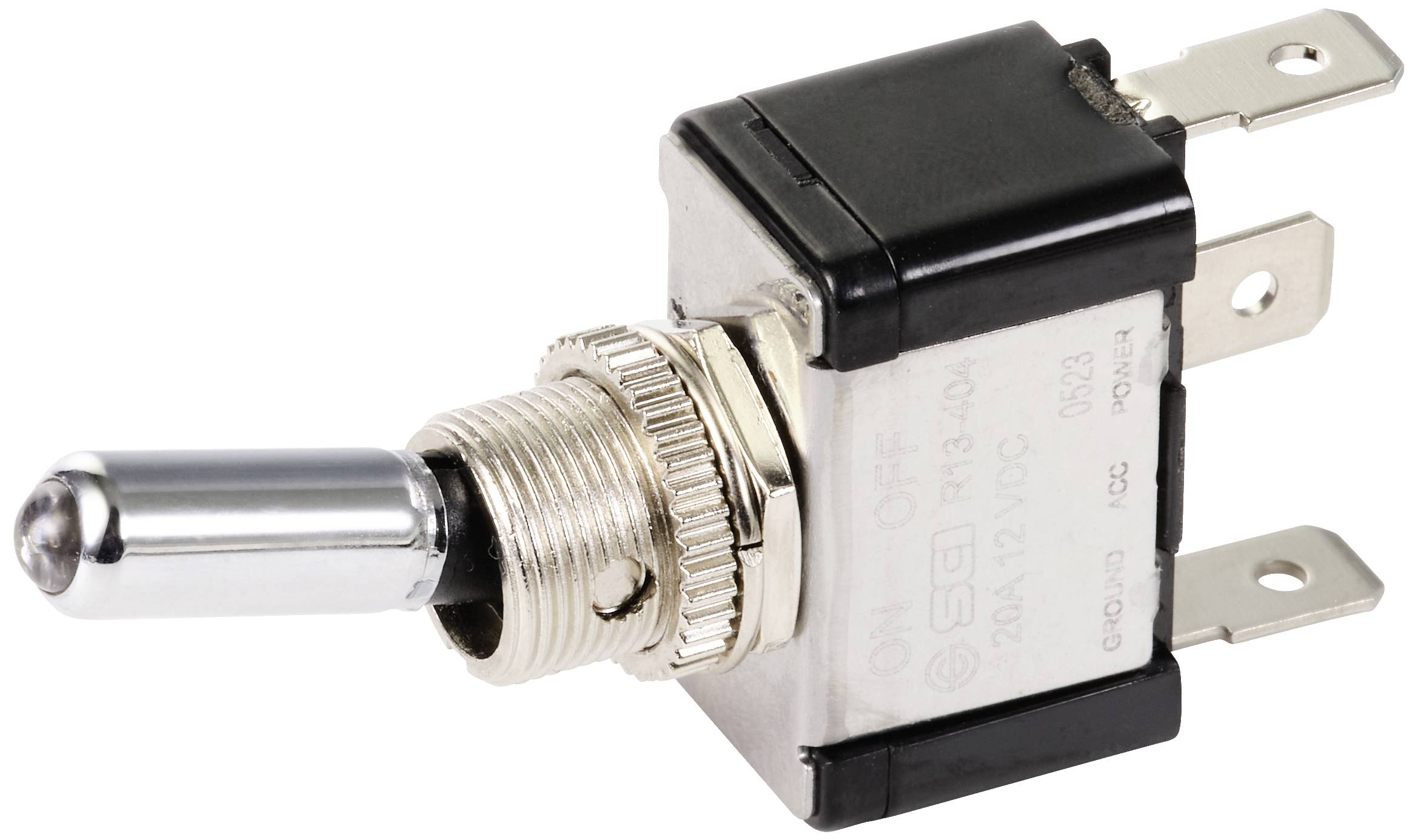

A toggle switch with a metal lever and three connection contacts, typical for electrical devices used to control electrical circuits.
1/3
Product type
Toggle switch
Switch/button features
Plastic lever
Casing/button colour
Black
Functions
latch
Lighting type
Spot lighting
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Fri 6 Nov
609 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 5.53 / piece)
€ 5.53
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Toggle switch

  • ()

Our service for you

Technical specifications

Product type

Toggle switch

Switch/button features

Plastic lever

Casing/button colour

Black

Functions

latch

Lighting type

Spot lighting

Colour

Blue

Bulb type

LED (monochrome)

Switch position

1 x Off/On

Connection

Type C CEE 7/16 plug 6.3 mm

Contact resistance

50 mΩ

Number of pins

1

Switching voltage

12 V DC

Switching current (max.)

20 A

Dielectric strength

(1 min) 1500 V AC

Min. temperature

-20 °C

Max. temperature

85 °C

Recess diameter

12.0 mm

Front panel thickness

max. 6 mm

Insulation resistance

(500 V DC) 100 MΩ

RoHS-compliant

Yes

Type

TC-11193848

Plastic free packaging

Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 2798462 TRU COMPONENTS TC-11193848 Toggle switch 12 V DC 20 A 1 x Off/On latch 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2798462 TRU COMPONENTS TC-11193848 Toggle switch 12 V DC 20 A 1 x Off/On latch 1 pc(s)

Description

Hints

Re switch position: content in parentheses describes the n/o and n/c contact constellation
