Industrial metal power supply unit with green terminal blocks, labeled 'POWER SUPPLY' and 'Output 24 VDC 20 A'.

Industrial metal power supply unit with green terminal blocks, labeled 'POWER SUPPLY' and 'Output 24 VDC 20 A'.

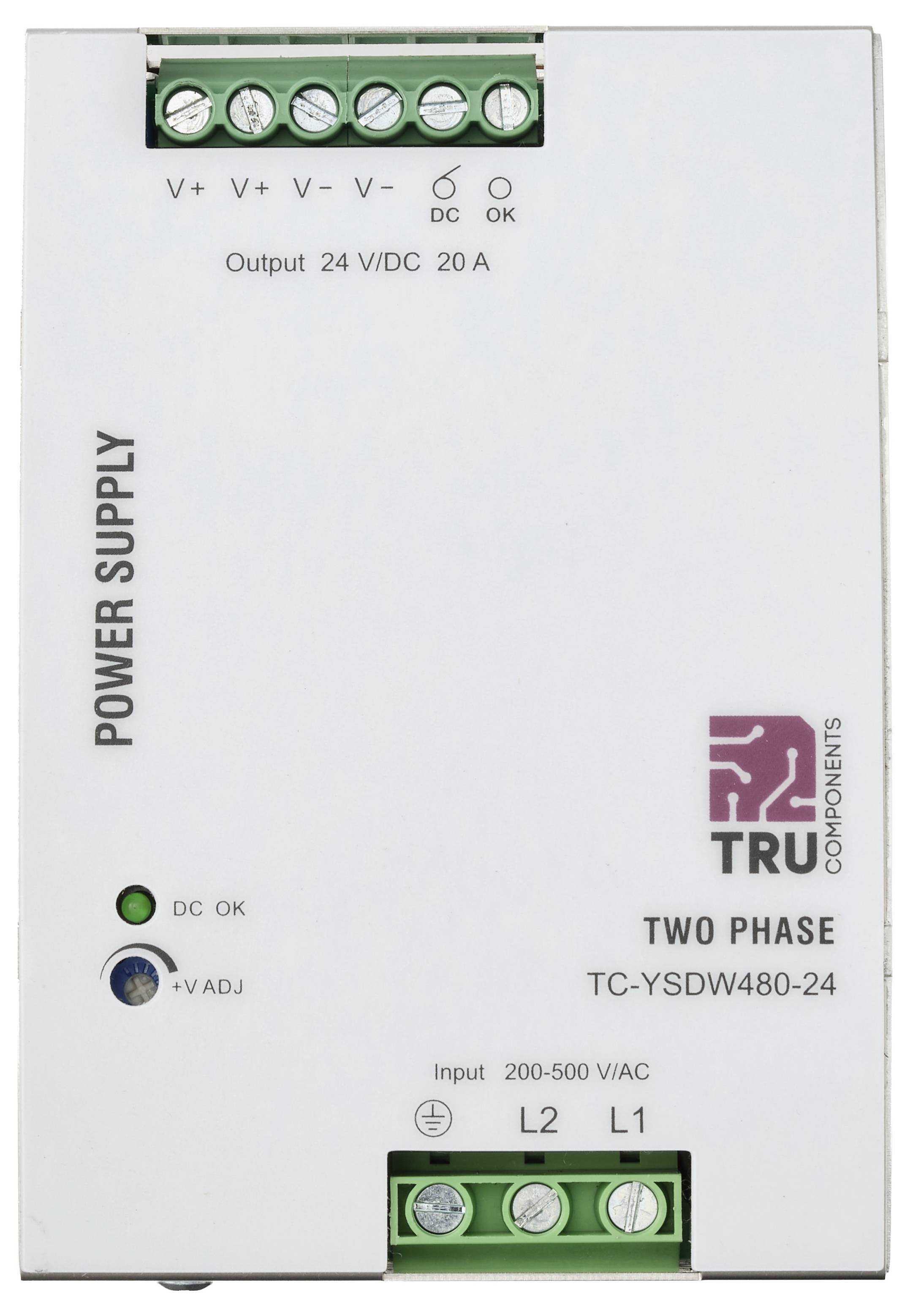

Photo of a TRU Components two-phase power supply, labeled 'Output 24 V/DC 20 A' and 'Input 200-500 V/AC', with terminal connectors and status lights.

Rear view of a wall-mounted flat-screen TV with its metal mounting bracket attached.

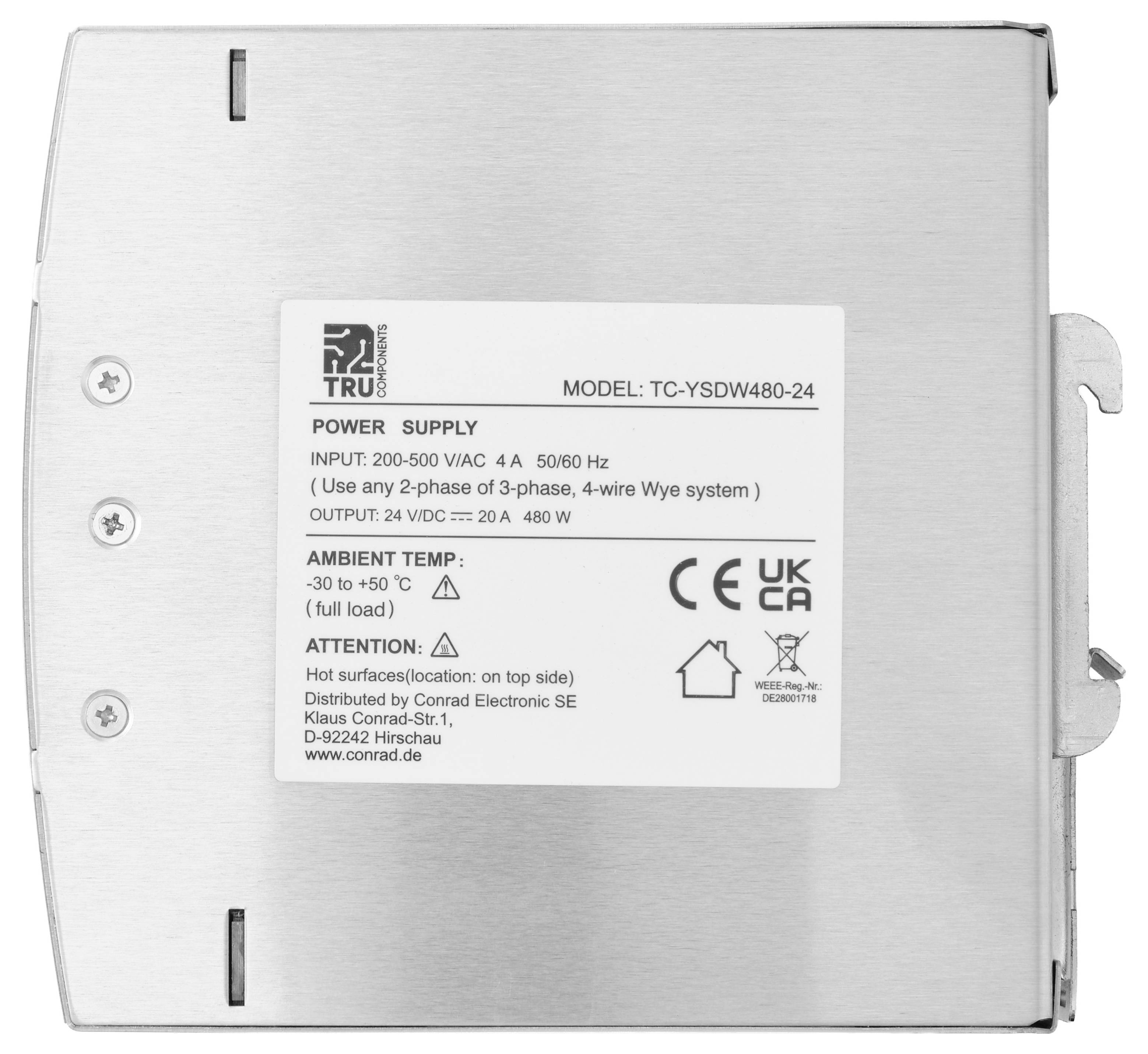

Metal power supply unit with label showing model TC-YSDW480-24, 24 VDC 20 A output, 480 W, and safety markings on a brushed metal casing.

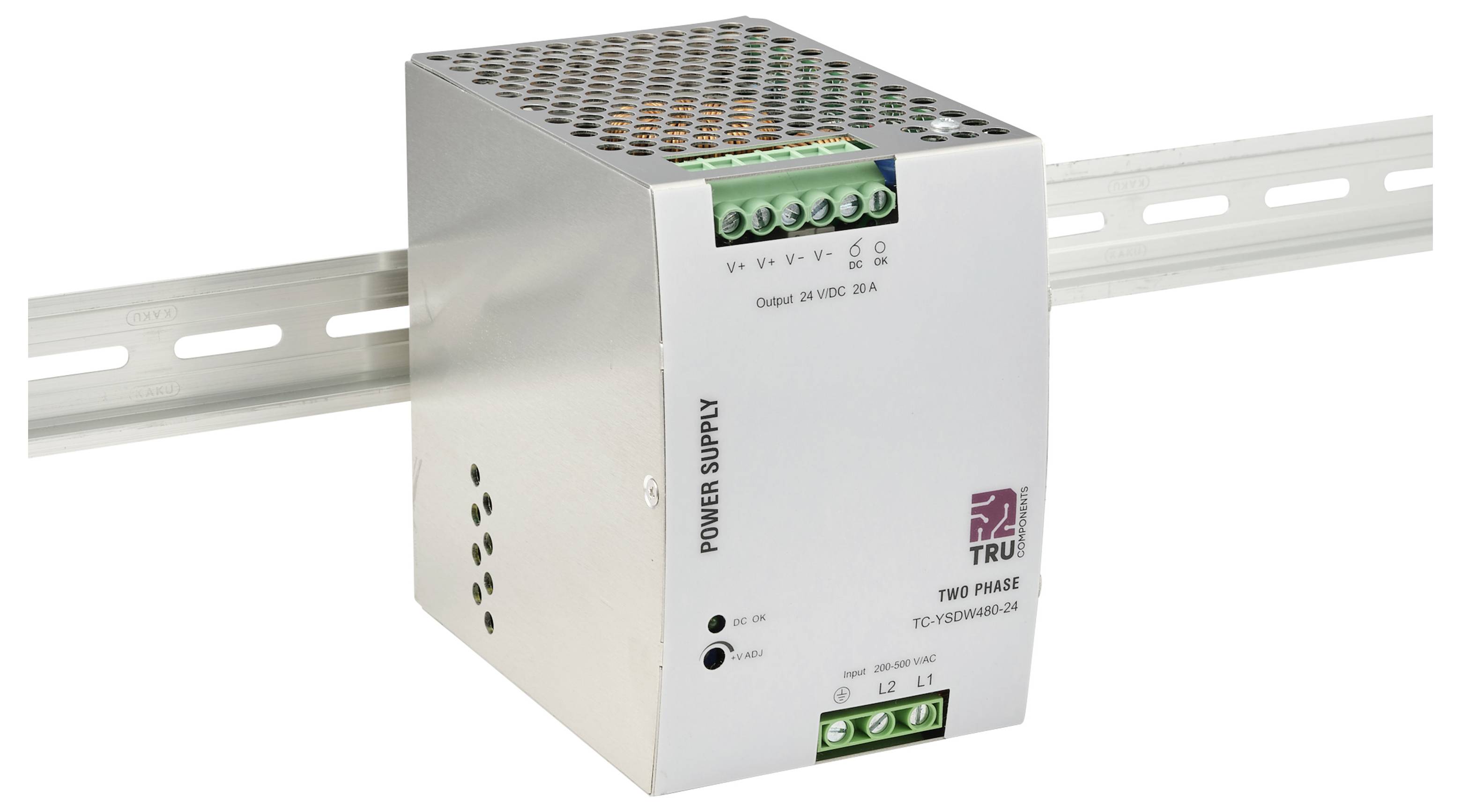

DIN-rail mounted AC-to-DC power supply unit with vented metal casing, terminal connectors, and front label 'POWER SUPPLY' and '24V DC 20A'.<br>

1/5

TRU COMPONENTS

Datasheet (PDF)

Dispatches on Mon 2 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 104.99 / piece)

€ 104.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

TRU COMPONENTS TC-YSDW480-24 Hutschienen-Netzteil (DIN-Rail) 24 V DC 20 A 480 W

Input voltage range: 200 - 500 V AC
Output voltage (nominal): 24 V DC
Max. output current: 20 A
Power: 480 W

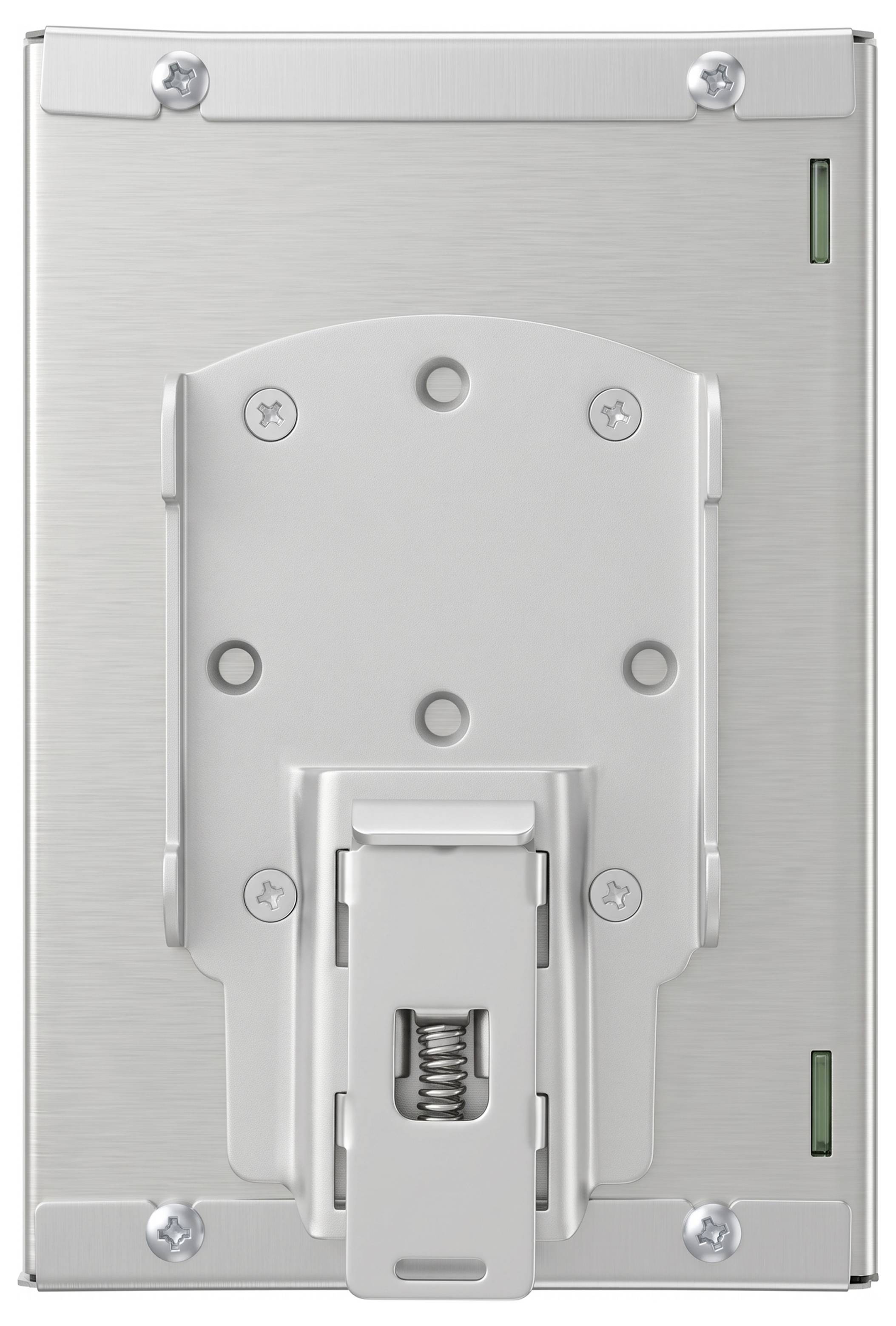

Can be installed on TS-35/7.5 or TS-35/15 DIN rail

Technical specifications

MTBF: >700,000 h (Telcordia SR-332 / Bellcore)
Connection: Screw DIN Terminal
Input: 3 poles, Output: 6 poles
Number of output: 1x
Protection: Output voltage shutdown, recovers upon re-power
Withstand voltage: I/P-O/P: 3 kV AC, I/P-FG: 2 kV AC, O/P-FG: 0.5 kV AC, O/P-DC OK: 0.5 kV AC (1 minute)

Type: Wide input type

Product type: Rail mounted PSU (DIN)

Min. input voltage: 200 V AC

Input voltage: 200 - 500 V AC

Input voltage (max.): 500 V AC

Max. output current: 20 A

Output current (max.) - rounded: 20 A

: 480 W

Output voltage (nominal): 24 V DC

No. of outputs: 1 x

Dim: (L x W x H) 129 x 85.5 x 125 mm

Weight: 1.7 kg

Output voltage (max.): 28 V DC

Output voltage (min.): 24 V DC

Operating temperature (max.): 70 °C

Operating temperature (min.): -30 °C

Manufacturer part #: TC-14556832

Content: 1 pc(s)

Width: 85.5 mm

Height: 125 mm

Length: 129 mm

Type: TC-YSDW480-24

Consumption (standby): 7 W

Efficiency: 93 %

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 3639208 TRU COMPONENTS TC-14556832 Rail mounted PSU (DIN) Consumption (standby) 7 W 24 V DC 20 A 480 W No. of outputs:1 x Conten

User & Safety Instructions

User & Safety Instructions 3639208 TRU COMPONENTS TC-14556832 Rail mounted PSU (DIN) Consumption (standby) 7 W 24 V DC 20 A 480 W No. of outputs:1 x Conten

Features

Built-in constant current limiting circuit
DC output voltage adjustable
Built-in DC OK relay contact
Protection: Short circuit, overload, over voltage, over temperature

Scope of delivery

DIN rail power supply
User manual

Description

Features

Built-in constant current limiting circuit
DC output voltage adjustable
Built-in DC OK relay contact
Protection: Short circuit, overload, over voltage, over temperature

Scope of delivery

DIN rail power supply
User manual
