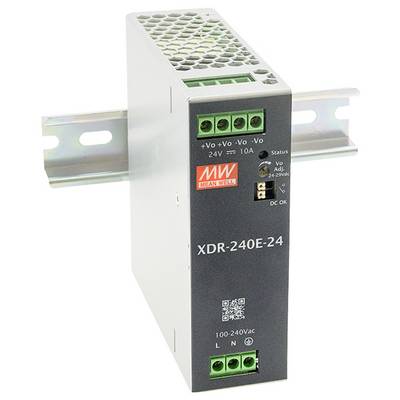

MEAN WELL XDR-240E-24 Rail mounted PSU (DIN) 24 V 10 A 240 W Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
86 Piece(s)
Sales and shipping:
Number
Total (€ 50.41 / piece)
€
Technical specifications
- Product type
Rail mounted PSU (DIN)
- Min. input voltage
85 V
- Input voltage (max.)
264 V
- Max. output current
10 A
- Output current (max.) - rounded
10 A
240 W
- Output voltage (nominal)
24 V
- Connection
Screw terminal
- Dim
(L x W x H) 116 x 40 x 125.2 mm
- Output voltage (max.)
24 V
- Operating temperature (max.)
+70 °C
- Operating temperature (min.)
-40 °C
- Manufacturer part #
XDR-240E-24
- Content
1 pc(s)
- Width
40 mm
- Height
125.2 mm
- Length
116 mm
Protection class I
- Max. temperature
-40 °C
- Min. temperature
+70 °C
- Type
XDR-240E-24
- Efficiency
95.2 %
