TRU COMPONENTS TC-JPT10 Grey Continuity 10.2 mm Quick-connect Number of pins: 2 0.5 mm² 10 mm² Grey 1 pc(s)
EAN:
Part number:
Item no:
Connection
Quick-connect
Cross section (flexible) (min.)
0.5 mm²
Cross section (flexible) (max.)
10 mm²
Cross section (inflexible) (min.)
0.5 mm²
Cross section (inflexible) (max.)
16 mm²
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 3.61
10
7% = € 0.27
€ 3.34
25
11% = € 0.38
€ 3.23
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 3.61 / piece)
€
Highlights & Details

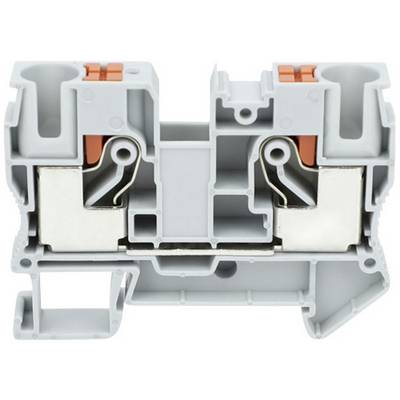

TC-JPT10 Grey Push-in terminal
- TC-JPT10 Grey
Our service for you
Technical specifications
- Connection
Quick-connect
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
10 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
16 mm²
- Clamp width
10.2 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Grey
- Nominal current
70 A
- Nominal current - rounded value
70 A
- Nominal voltage
1000 V
- Manufacturer part #
TC-11592360
- Content
1 pc(s)
- Type
TC-JPT10 Grey
- Dim
(L x W x H) 67.7 x 10.2 x 49.5 mm
- Width
10.2 mm
- Height
49.5 mm
- Length
67.7 mm
- RoHS-compliant
Yes
- Plastic free packaging
Plastic-free packaging
- Product type
Continuity
Documents & Downloads
Datasheet
Datasheet 2898090 TRU COMPONENTS TC-JPT10 Grey Continuity 10.2 mm Quick-connect Number of pins: 2 0.5 mm² 10 mm² Grey 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2898090 TRU COMPONENTS TC-JPT10 Grey Continuity 10.2 mm Quick-connect Number of pins: 2 0.5 mm² 10 mm² Grey 1 pc(s)
