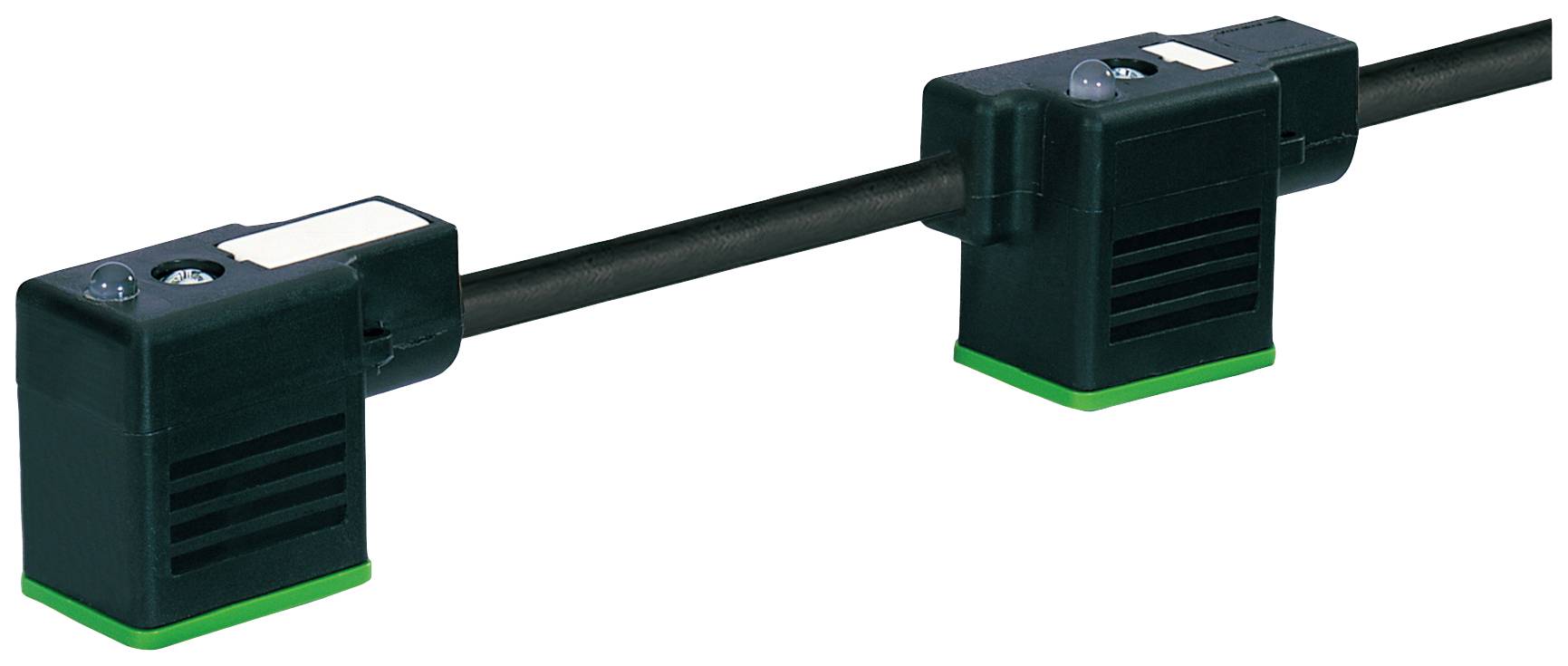

Twin connector with connection cable Black Pins:4 7000-58471-6270250 Murrelektronik Content: 1 pc(s)
EAN:
Part number:
Item no:
Product type
Twin connector + lead
Type
C standard
Connection
Open end cable
IP rating
IP67
Number of pins
4
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 39.99 / piece)
€ 39.99
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details
Twin connector with connection cable
Our service for you
Technical specifications
- Switch-off tip: Max. 55 V
- wire insulation: PVC (sw, num, nge)
- Construction (conductor): 42× 0.15 mm (strand class 6)
- AWG: Similar AWG 18
- Mounting type: Plugged, screwed
- Rated surge voltage: 0.8 kV
- Operating current per contact: Max. 4 A
- Bend radius (moving): 15× Outer Ø
- Bend radius (fixed): 10× Outer Ø
- Single wire Ø (conductor): 0.15 mm
- /cable weight: 7g: Cable weight: 0.15 mm/cable weight: PBT
- Material (wire insulation): PVC
- Material (seal): PUR
- Material (contact): Copper alloy
- Material (contact surface): AG
- Material (conductor): CU strand, bare
- test voltage: 2000 V/AC
- Current consumption: 4 mA
- Temperature range (moving): -5 °C - +80 °C
- Temperature range (fixed): -30 °C - +80 °C
- Pollution degree: 3
- Resistance (conductor): Max. 26 Ω/km (20 °C)
- Pins
4
- Conductor material
PUR
- Product type
Twin connector + lead
- Type
C standard
- Connection
Open end cable
IP67
- Number of pins
4
- Nominal voltage
300 V AC
- Display
LED
- Total no. of pins
4
- Weight
260 g
- Manufacturer part #
7000-58471-6270250
- Factory colour
Black
- Content
1 pc(s)
- Cable Ø
6.5 mm
- Cable length
2.50 m
- Cable cross section
4x 0.75 mm²
- max. cross section
0.75 mm²
- RoHS-compliant
Yes
- Circuit layout description
incl. yellow LED
- Max. temperature
+85 °C
- Min. temperature
-25 °C
- Type
7000-58471-6270250
- Features
Oil-resistant
Documents & Downloads
Datasheet
Datasheet 2311648 Twin connector with connection cable Black Pins:4 7000-58471-6270250 Murrelektronik Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2311648 Twin connector with connection cable Black Pins:4 7000-58471-6270250 Murrelektronik Content: 1 pc(s)
