Ubiquiti Networks G5 Dome Ultra UVC-G5-DOME-ULTRA-B Corded IP CCTV camera 2688 x 1512 p

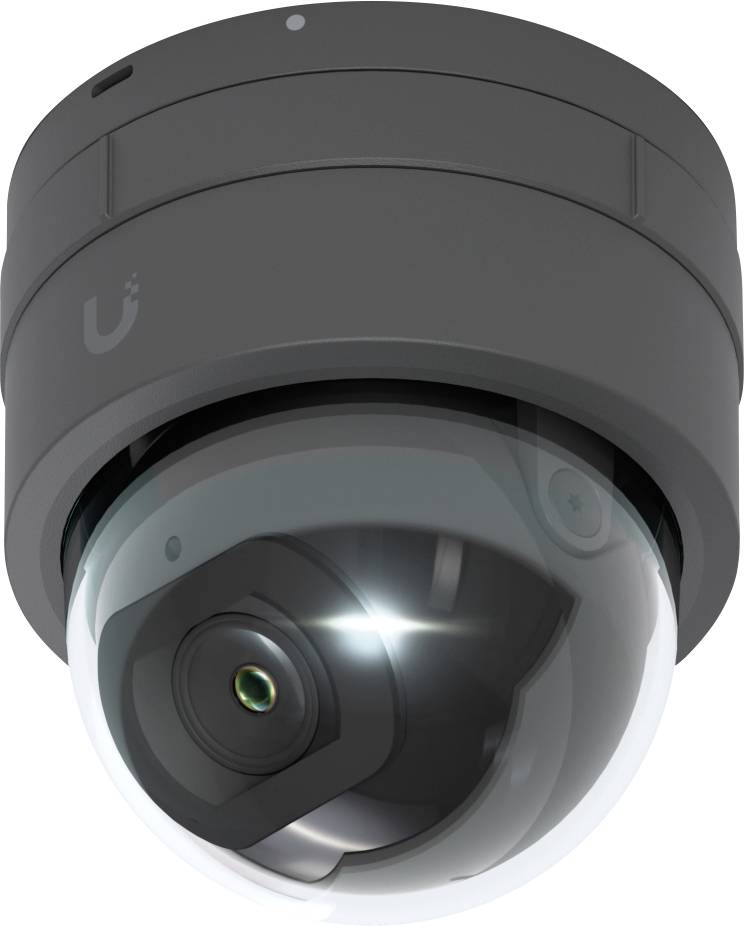

Dome security camera with a clear bubble cover and visible lens, shown on a white background.<br>

Dome security camera with a clear bubble cover and visible lens, shown on a white background.<br>

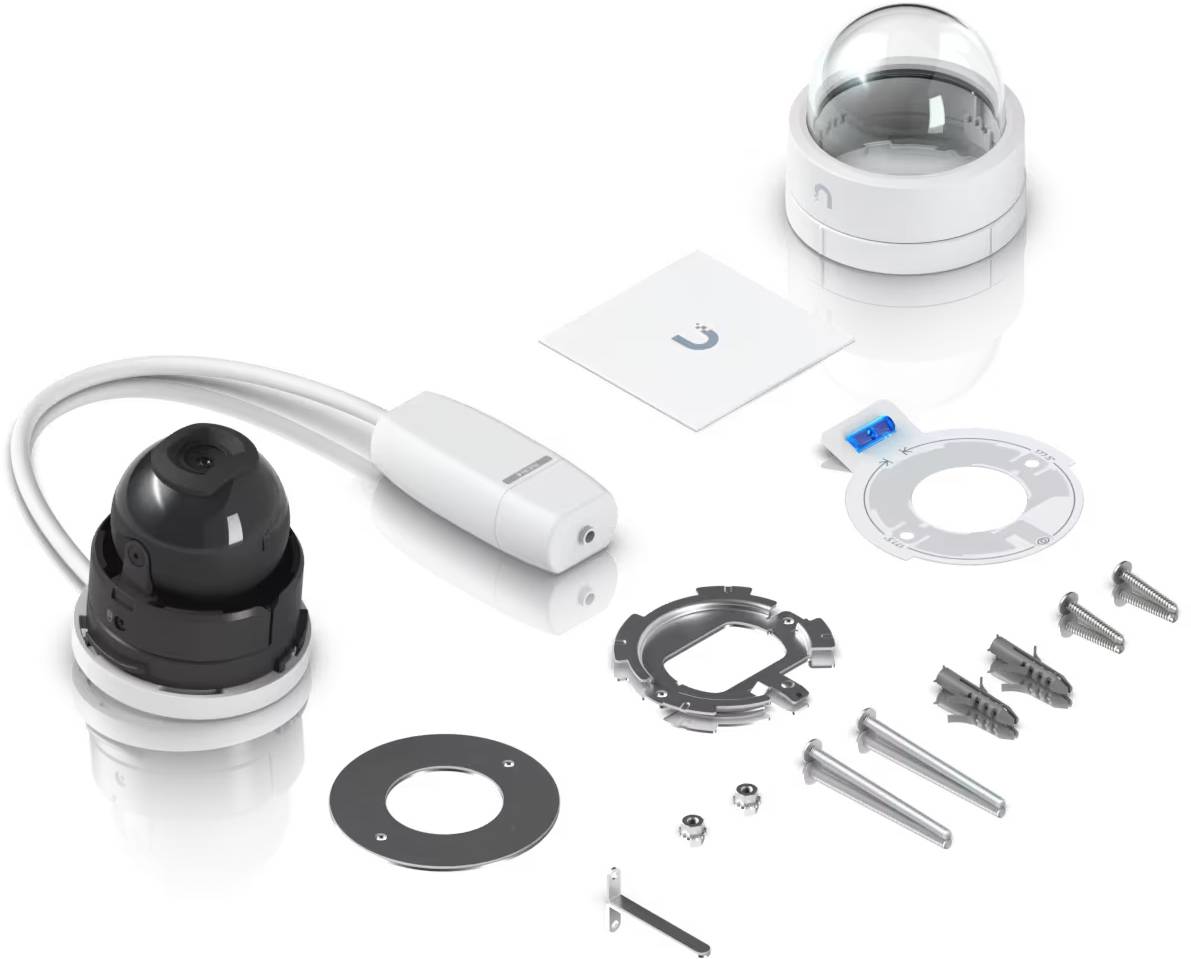

Exploded view of a ceiling security camera kit with domed camera units, mounting brackets, cables, screws, and installation accessories on a white background.

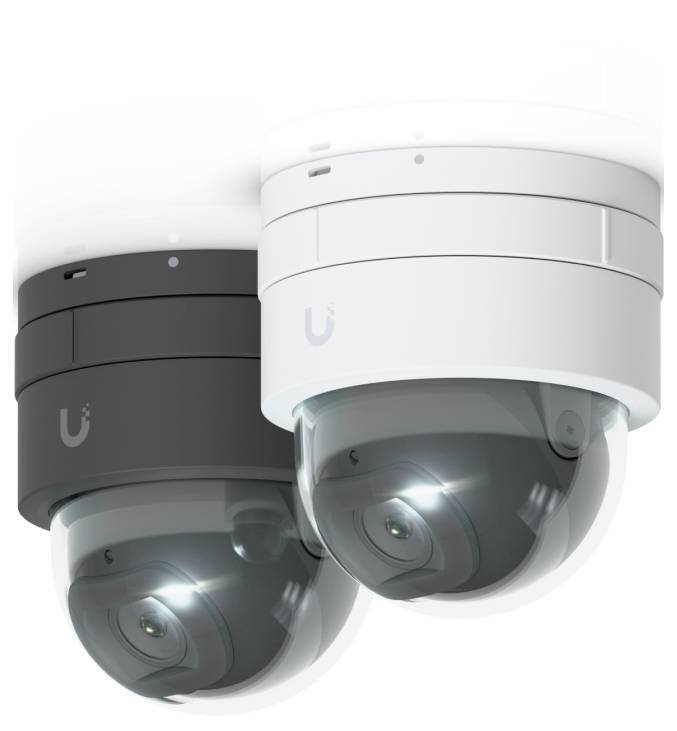

Two dome security cameras, one black and one white, shown against a white background.

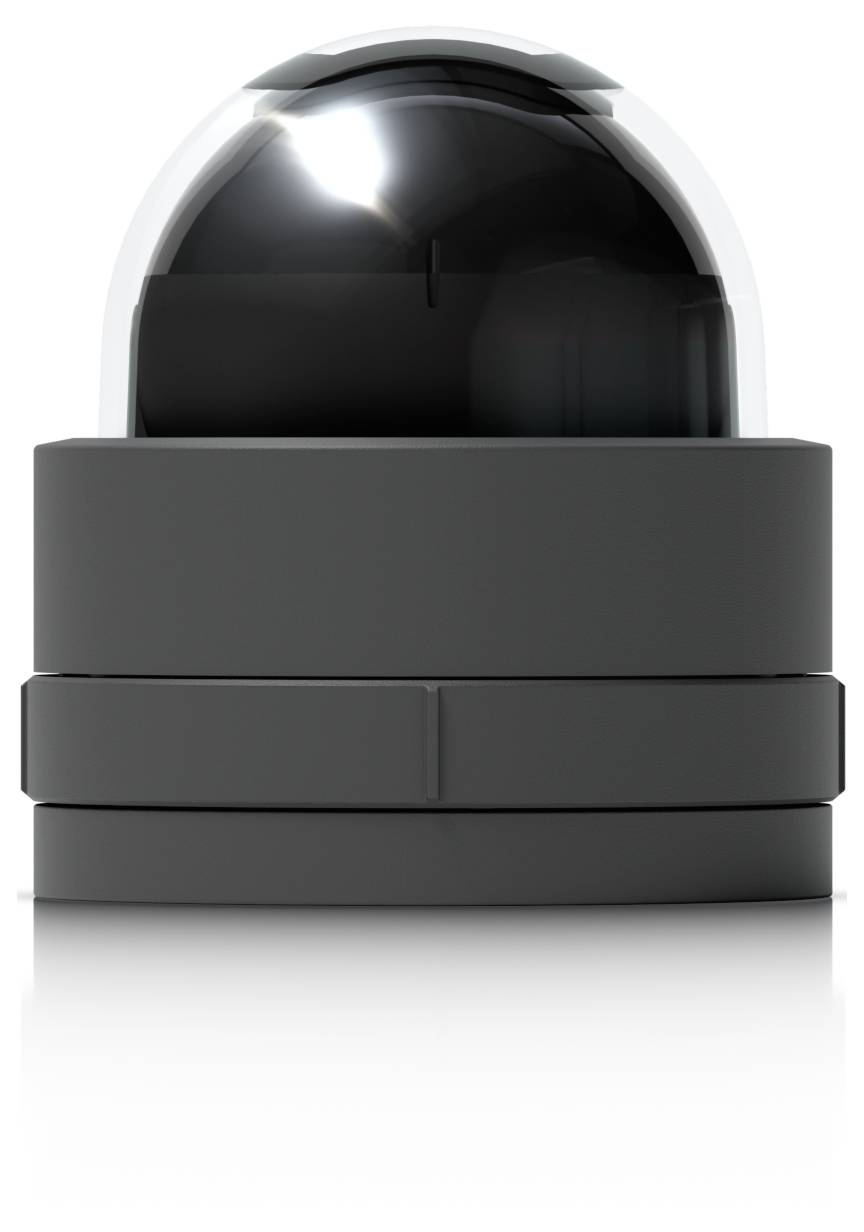

Dark dome-shaped security camera on a gray base against a white background, shown front view.

Front view of a dark gray security camera with a glossy dome cover on a white background.

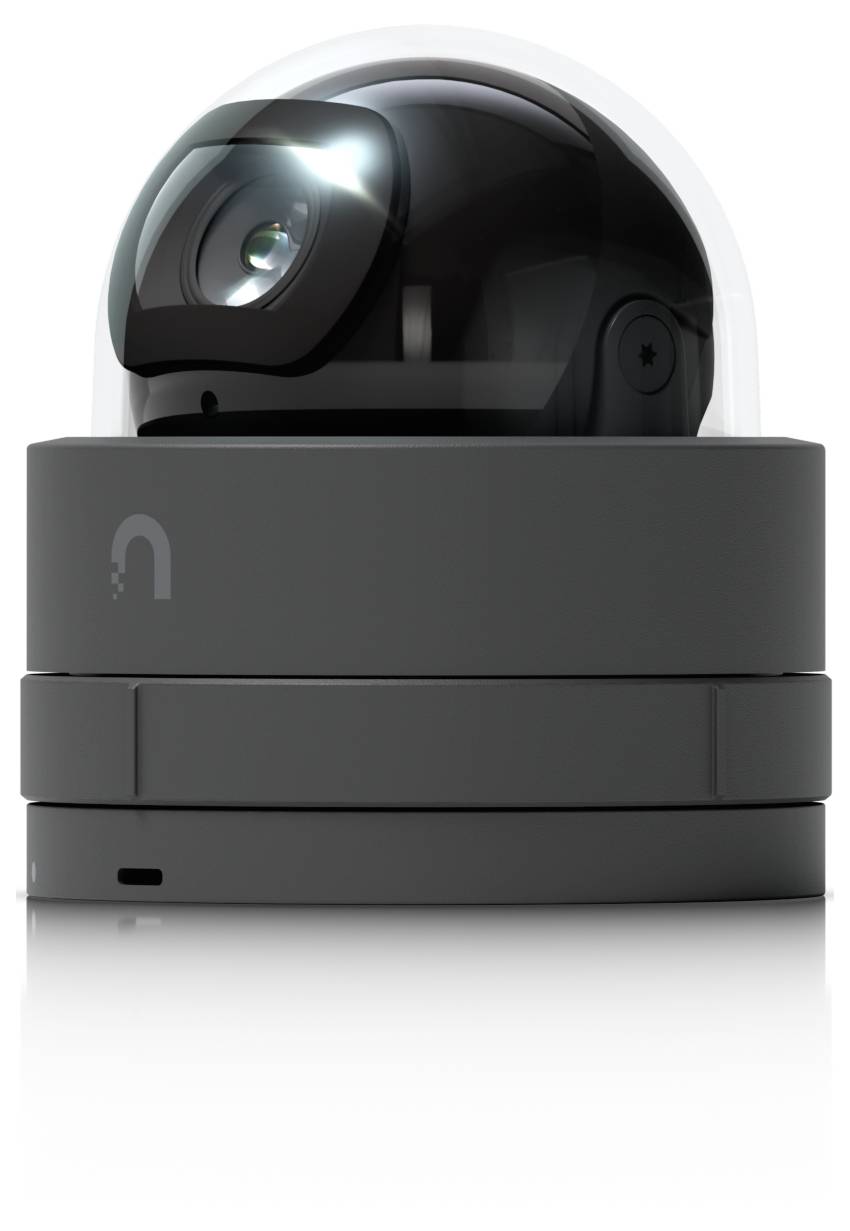

A black dome security camera with a visible lens sits on a rectangular base against a white background.

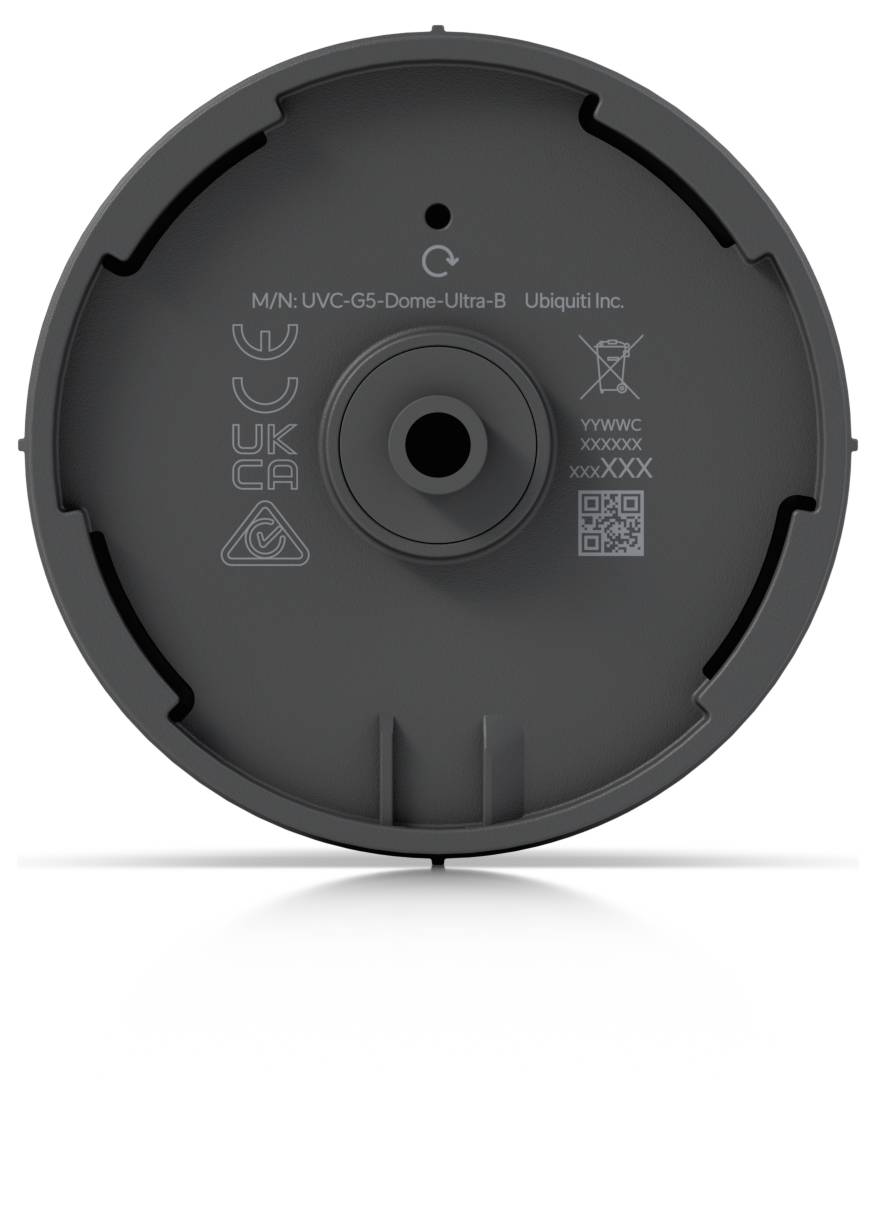

Underside of a Ubiquiti UniFi UVC-G5-Dome-Ultra-B camera mount with center cable opening and regulatory markings.

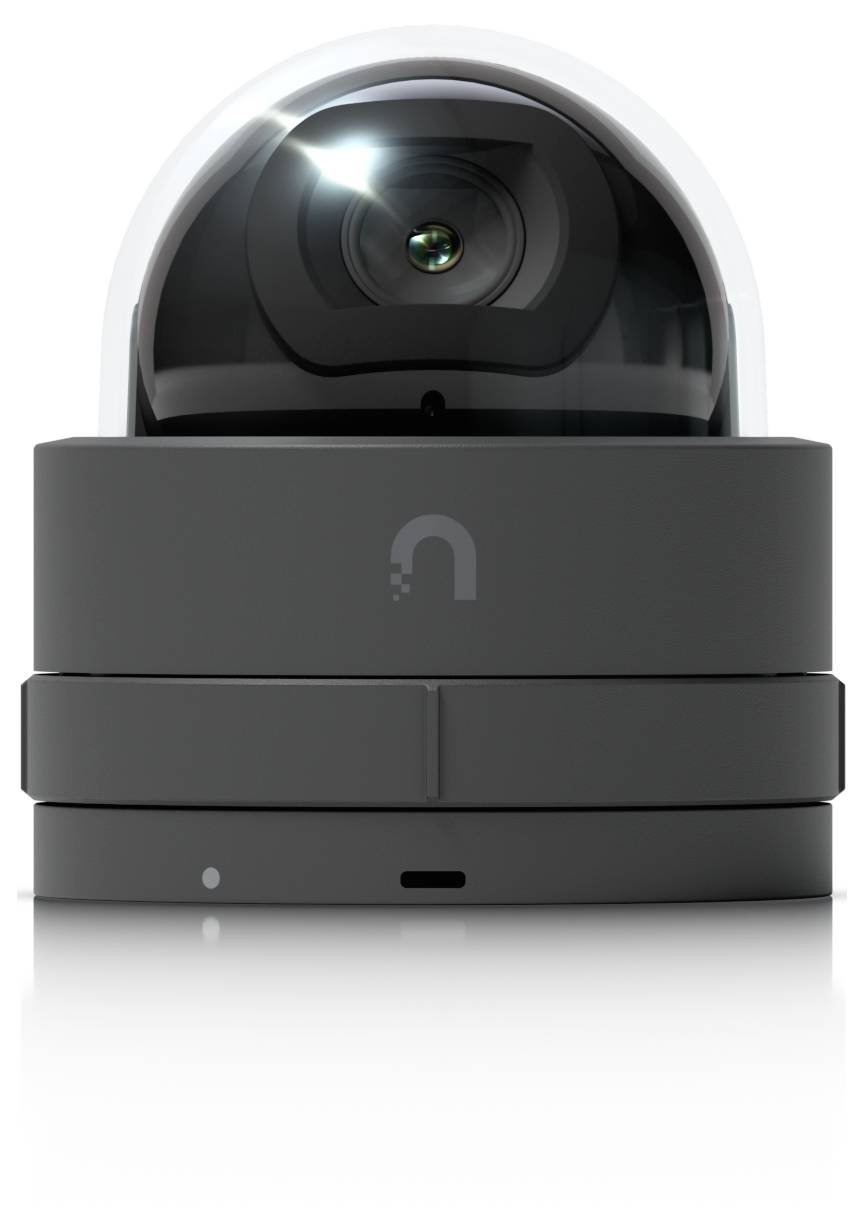

Front-facing security camera with a dome lens and dark gray body on a white background.

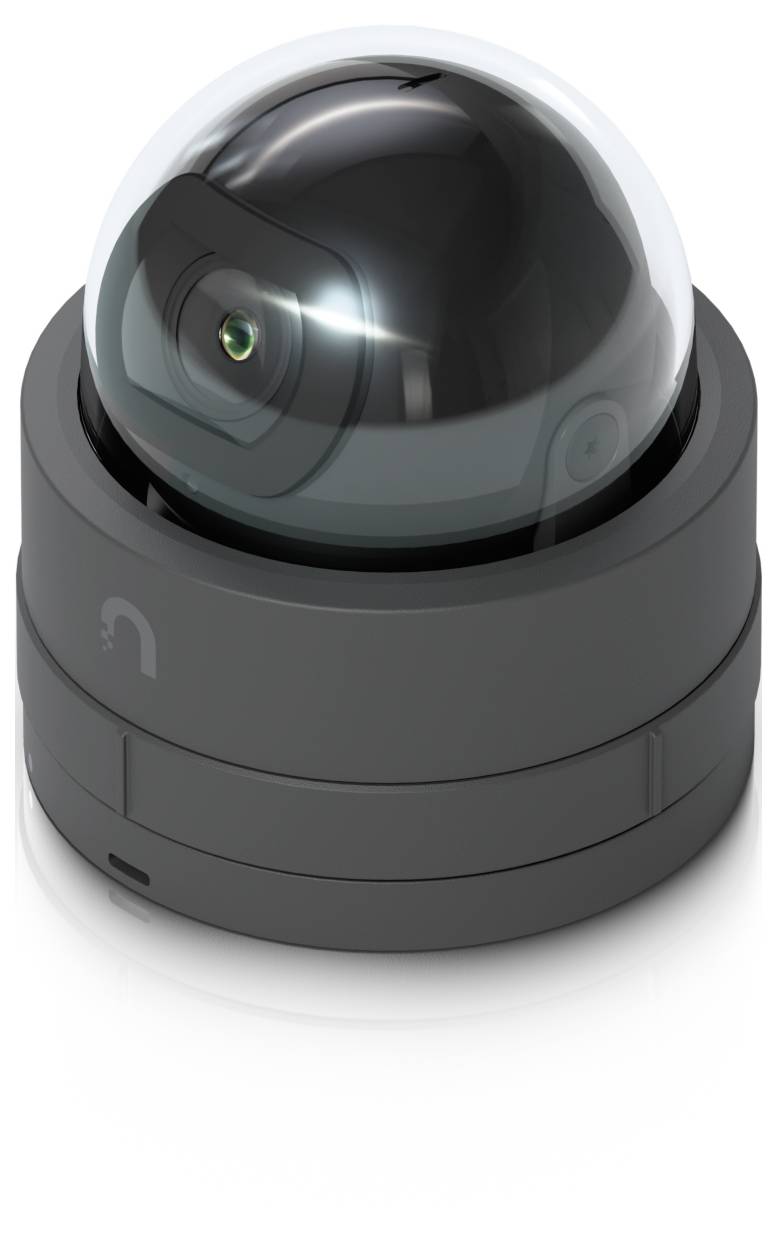

Dark gray dome security camera on a cylindrical base, viewed at an angle on a white background.

1/9

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Corded IP-Dome camera;2688 x 1512 p;Ubiquiti NetworksG5 Dome Ultra;UVC-G5-DOME-ULTRA-BOutdoors, Indoors

IP security camera for indoors and outdoors
CMOS 25.4 / 2.4 mm (1 / 2.4") 4 MP 2688 x 1512 pixels
Wired Ethernet/LAN
Night view 20 m IR
Dome ceiling / wall Vandalism proof
IK06

Technical specifications

Product type: CCTV camera

CCTV features: Vehicle recognition
Pet recognition
Identity recognition

Camera type: Dome camera

Power supply: PoE (Power over Ethernet)

Resolution (max.): 2688 x 1512 p

Sensor type: CMOS

Max. viewing angle hor.: 102.4°

Vertical viewing angle: 54.9°

Vertical viewing angle: 120.6°

Transfer type: Corded

IR range (max.): 20 m

Used at: Outdoors
Indoors

Height: 68.2 mm

(Ø): 63.6 cm

Dim: (Ø x H) 63.6 cm x 68.2 mm

Weight: 175 g

Enclosure material: Aluminium alloy
Polycarbonate (PC)

Factory colour: Black

: IK06

Signal standard: IP

Bluetooth: No

Cable length: 0 cm

Display resolution: 2688 x 1512 Pixel

Keyboard layout: German, QWERTZ

Material (details): Aluminium
Polycarbonate (PC)
Stainless steel

Type: IP-security camera

10/100/1000 Mbps ports: 1 x

Power consumption (ON): 4.2 W

Power supply (details): 37 - 57 V

Sensor type: CMOS

Processor/type: ARM Cortex-A7

Wi-Fi: No

UKCA: yes

Screws included: yes

Operating temperature (T-T): -20 - 40 °C

Ethernet LAN: yes

Optical sensor size: 25,4 / 2,4 mm (1 / 2.4")

Number of lenses: 1

Privacy masking: yes

Text caption overlay: yes

Infrared (IR) cut-off filter: yes

Number of sensors: 1

Noise reduction: yes

Frame rate: 30 fps

Reset button: yes

Night vision: yes

Operating relative humidity (H-H): 10 - 90 %

Built-in processor: yes

Total megapixels: 4 MP

Mounting kit: yes

Built-in HDD: no

Day/night mode: yes

Number of cameras: 1

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3784684 Ubiquiti Networks G5 Dome Ultra UVC-G5-DOME-ULTRA-B Corded IP CCTV camera 2688 x 1512 p

Description

Ultra-compact, tamper-proof 2K HD PoE camera with night vision for indoor security.

This text is machine translated.

Scope of delivery

IP-security camera

Related products can be found here

Earphones Monitor Cables IP Camera Accessories Fixed Voltage Mains Adapters Radios Network Switches MicroSD Cards PoE Network Components Power Strips SD Cards Network Cables, 1-1 wired Weather stations Smartphones CCTV Camera Brackets USB Cables Powerline Network Video Recorder (NVR)Mobile Phone Sleeves LED Light Bulbs

Description

Ultra-compact, tamper-proof 2K HD PoE camera with night vision for indoor security.

This text is machine translated.

Scope of delivery

IP-security camera
