Name: Ubiquiti Networks Pro XG 48 PoE 19" switch box 52 ports 896 GBit/s PoE
Brand: Ubiquiti Networks
SKU: 3738668

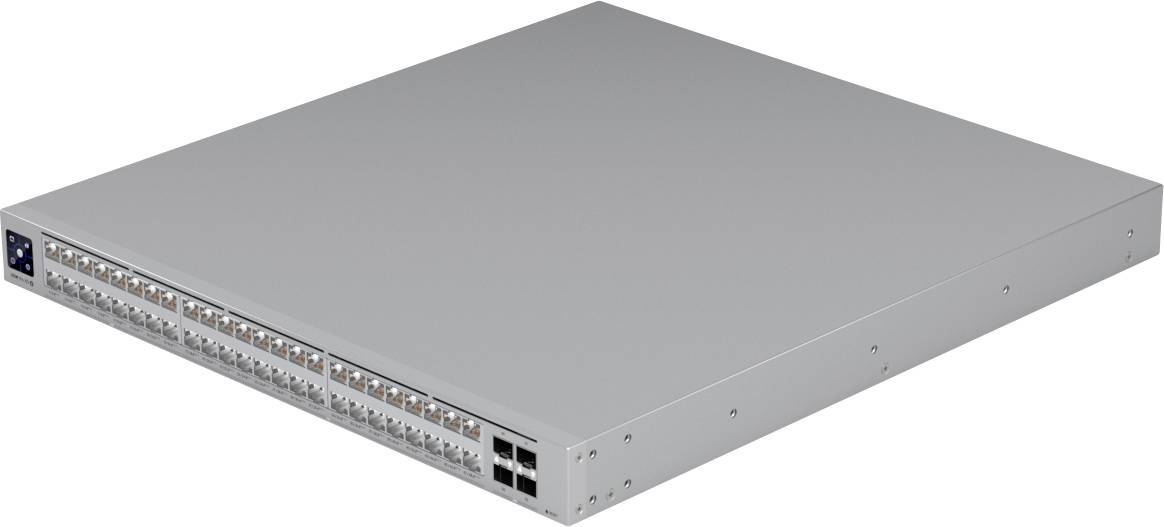

A silver network switch with multiple Ethernet ports and four SFP ports, used for connecting and managing network devices.

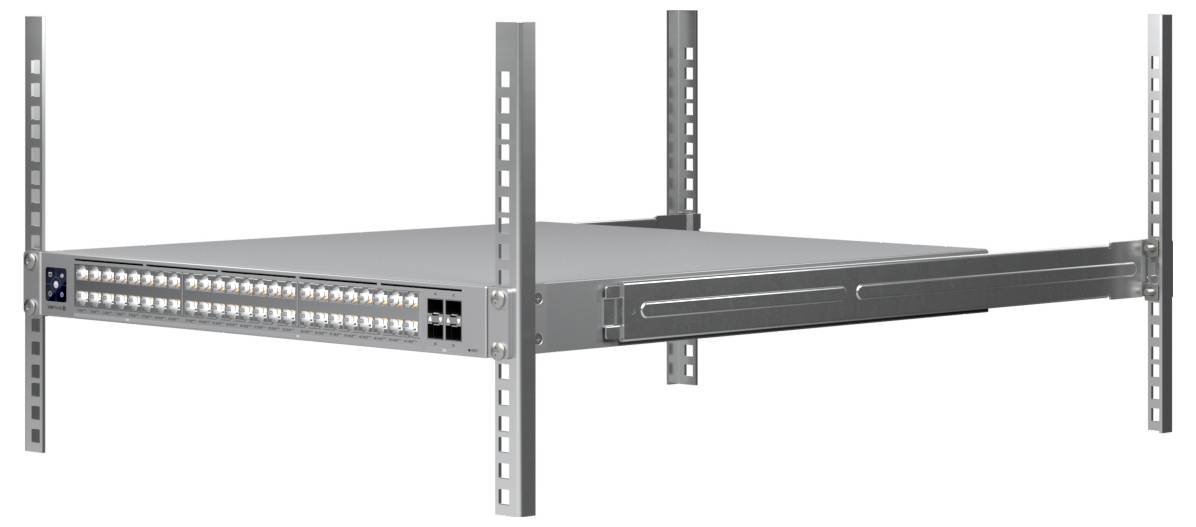

A metal server rack shelf with multiple ports designed for network hardware installation, featuring adjustable mounting brackets.

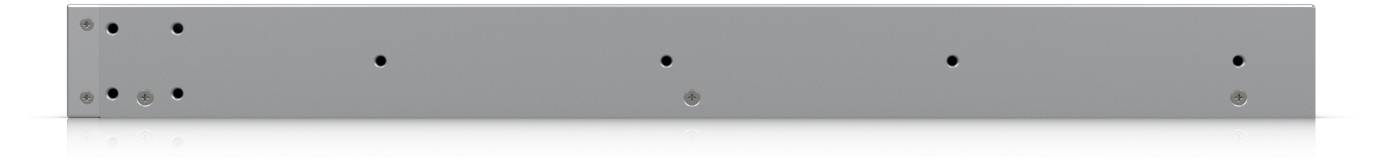

A long, gray metal bracket with multiple evenly spaced holes, likely used for mounting or structural support.

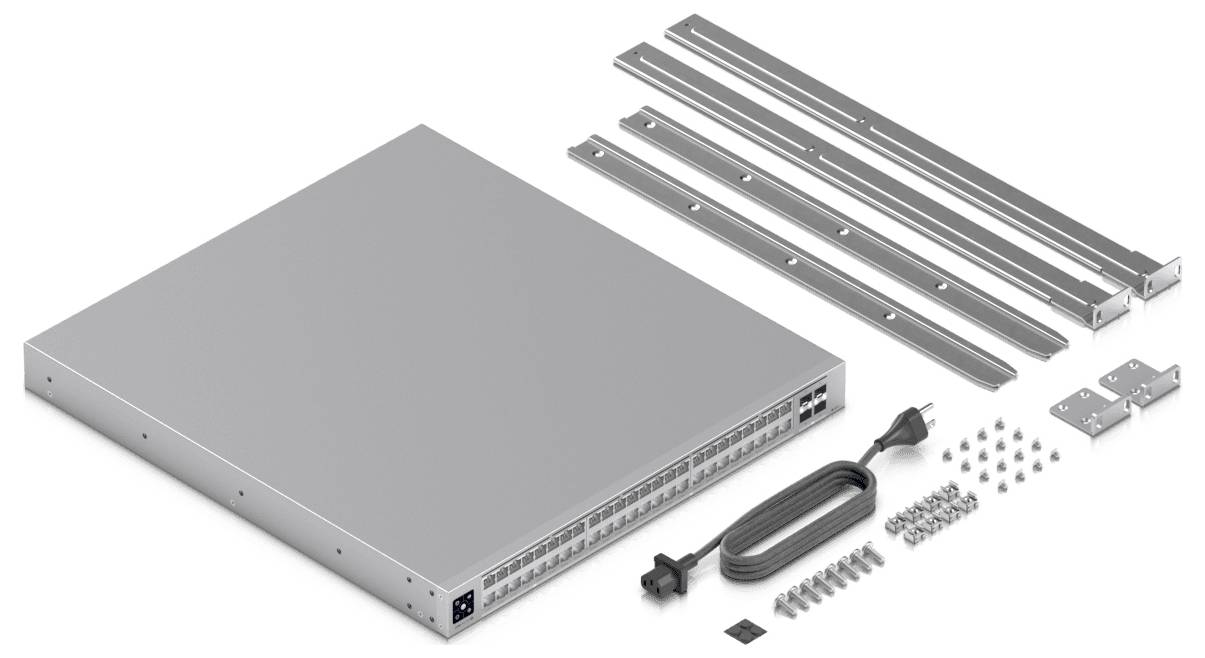

A server rack kit with a silver server unit, four mounting rails, power cord, screws, and brackets, arranged on a flat surface.

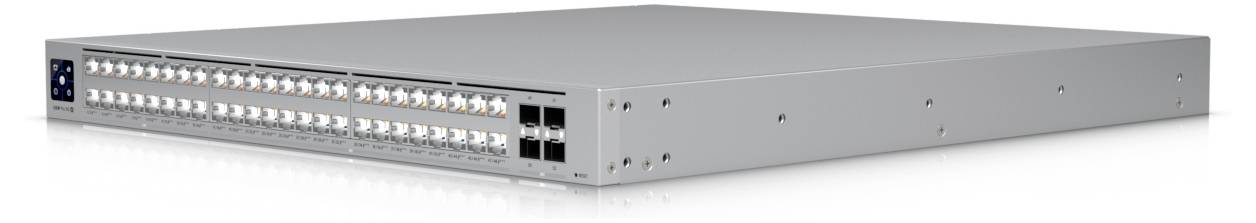

A silver network switch with multiple Ethernet ports displayed on its front panel, designed for rack-mount installation in data centers.

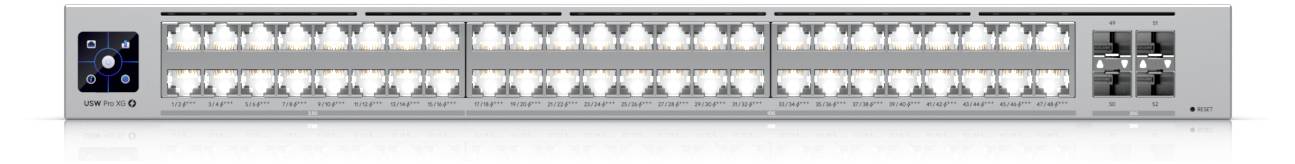

A rack-mounted network switch with multiple Ethernet ports and indicator lights.

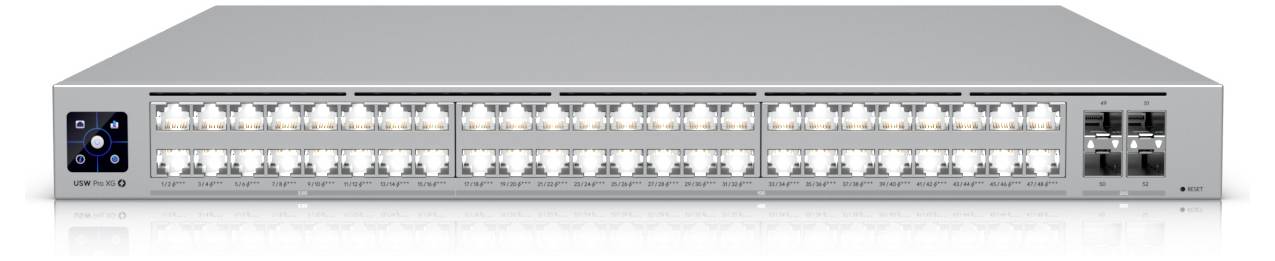

A network switch with 48 Ethernet ports and 4 additional uplink ports, designed for managing data traffic in a network system.

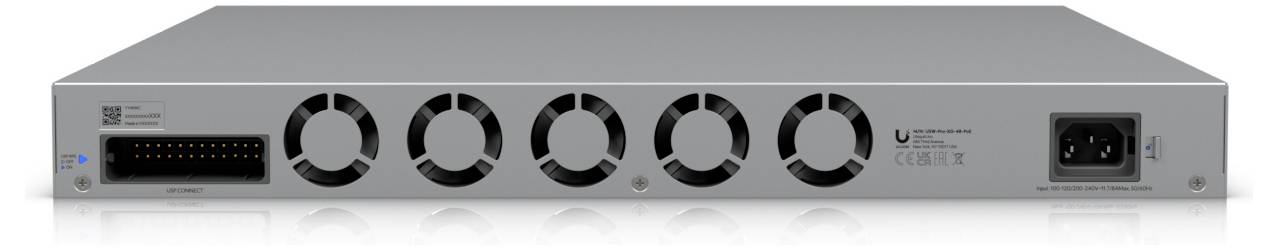

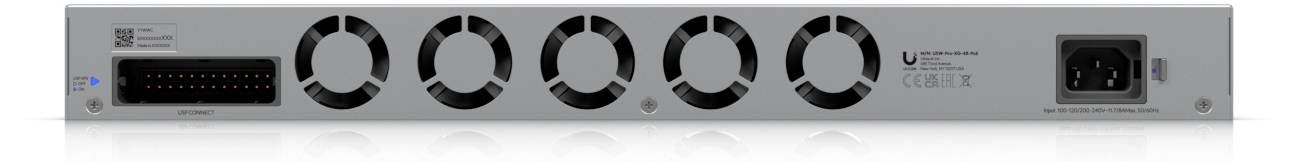

Back view of a network device with multiple circular fan vents, a large connector port on the left, and a power input on the right.

1/9

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Ubiquiti switch fully managed Layer3 52-port • 16x 2.5 GbE • 32x 10 GbE • PoE budget 1080W • 48x PoE++ • 4x SFP28 • 19" • Unifi • USW-Pro-XG-48-PoE

Etherlighting™ ports that light to display port location, speed/connection, and native VLAN/network*
(32) 10 GbE, (16) 2.5 GbE ports, all PoE+++ (90 W capable)
(4) 25G SFP28-connections
Ready for emergency power supply**
1,080 W PoE total availability

Technical specifications

Form factor: 1U
Energy source AC / DC

Product type: 19" switch box

LAN transfer rate: 25000 MBit/s

Transfer rate: 896 GBit/s

Working principle: Managed switch

Ethernet ports: 48

No. of 100 Mbps/1Gbps/10Gbps ports: 32 x

10/100 Mbps ports: 48 x

10/100/1000 Mbps ports: 48 x

Jumbo frames: Yes

Router features: PoE

Power supply (LOV): mains-powered

MAC addresses: 128000

Weight: 8.7 kg

Width: 442 mm

Height: 44 mm

Depth: 480 mm

Type: Pro XG 48 PoE

Rack size: 483 mm (19")

Interfaces: RJ45

Factory colour: Grey

Current consumption: 1280 W

Max. ambient temperature: 40 °C

Min. ambient temperature: -5 °C

Port: 52 ports

Cable length: 0 cm

Keyboard layout: German, QWERTZ

Material (details): SGCC

Power supply (details): 100 - 240 V

UKCA: yes

Operating temperature (T-T): -5 - 40 °C

Basic switching RJ-45 Ethernet ports quantity: 48

Total Power over Ethernet (PoE) budget: 1080 W

Packet buffer memory: 8 MB

Backlight display: yes

Switching capacity: 920 Gbit/s

Rack mount kit: yes

Loop protection: yes

Power over Ethernet (PoE) power per port: 15.4 W

Flow control support: yes

Power over Ethernet (PoE): yes

Quality of Service (QoS) support: yes

Port mirroring: yes

Stackable: yes

Jumbo frames support: yes

Redundant power supply (RPS) support: yes

Multicast support: yes

Broadcast storm control: yes

Static route: yes

Throughput: 460 Gbit/s

Access Control List (ACL) IPv4 entries: 256

Rate limiting: yes

Reset button: yes

SFP28 ports quantity: 4

IPv4 routes: 256000

2.5G Ethernet (copper) ports quantity: 16

10G Ethernet (copper) ports quantity: 32

Rack mounting: yes

MAC address table: 128000 Eintragungen

IGMP snooping: yes

Number of VLANs: 1000

Operating relative humidity (H-H): 10 - 90 %

VLAN support: yes

10G support: yes

Forwarding rate: 684 Mpps

Power consumption (max): 1280 W

Power supply included: yes

Documents & Downloads

Datasheet

Datasheet 3738668 Ubiquiti Networks Pro XG 48 PoE 19" switch box 52 ports 896 GBit/s PoE

User & Safety Instructions

User & Safety Instructions 3738668 Ubiquiti Networks Pro XG 48 PoE 19" switch box 52 ports 896 GBit/s PoE

Description

Professional 48-port Layer 3 EtherLighting™ PoE++ switch with (32) 10 GbE, (16) 2.5 GbE PoE and (4) 25G SFP28 ports.

This text is machine translated.

Hints

*Combine with Unifi Etherlighting patch cables for optimal brightness.

**Requires Unifi RPS .

Description

Professional 48-port Layer 3 EtherLighting™ PoE++ switch with (32) 10 GbE, (16) 2.5 GbE PoE and (4) 25G SFP28 ports.
