Buy Ubiquiti Networks USW-Flex-2.5G-8-PoE Flex 2.5G PoE Network switch

A small, white, rectangular device with rounded edges and a sleek, smooth surface, likely an electronic gadget or accessory.

A white network switch with eight Ethernet ports, one additional network port, and a power input. Indicators show port status.

A white Wi-Fi router with multiple Ethernet ports and indicator lights on the top edge is shown from the side and back.

'Back view of a 9-port network switch, showing eight Ethernet ports and one SFP port, plus a power input on the right.'

1/7

8 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 201.67 / piece)

€

Only 8 Piece(s) available

Report legal concerns

Highlights & Details

Ubiquiti switch Smart managed Layer2 9 port • 8x 2.5 GbE PoE+ • 1x 10 GbE PoE bt In • Desktop • No fan • Unifi • USW-Flex 2.5G-8 PoE

(8) 2.5 GbE PoE+ output ports
(1) 10 GbE PoE++ input port for power/SFP+ port combination
— 57 W PoE availability with PoE++ input
— 37 W PoE availability with PoE++ input
— 12 W PoE availability with PoE+ input
196 W PoE availability with optional AC power supply*

Technical specifications

Form factor: Desktop/wall mounting
Power source AC / DC / PoE
No. of 2.5G Ethernet (copper) ports - 8

Product type: Network switch

Working principle: Managed switch

Ethernet ports: 8

IEEE 802.3af PoE: 8

No. of 100 Mbps/1Gbps/10Gbps ports: 1 x

Weight: 567 g

Width: 212.9 mm

Height: 33.5 mm

Depth: 99.4 mm

Type: Flex 2.5G PoE

Factory colour: White

Current consumption: 196 W

SFP+ ports: 1 x

Material (details): Polycarbonate (PC)

DIN rail mounting: yes

Operating temperature (T-T): -20 - 45 °C

Power over Ethernet plus (PoE+) ports quantity: 8

Basic switching RJ-45 Ethernet ports quantity: 8

Total Power over Ethernet (PoE) budget: 196 W

Wall mountable: yes

Switching capacity: 60 Gbit/s

Loop protection: yes

Power over Ethernet (PoE) power per port: 15.4 W

SFP+ module slots quantity: 1

Flow control support: yes

Power over Ethernet (PoE): yes

Port mirroring: yes

Jumbo frames support: yes

Multicast support: yes

Broadcast storm control: yes

Throughput: 30 Gbit/s

Power over Ethernet (PoE) voltage: 57 V

Rate limiting: yes

Reset button: yes

2.5G Ethernet (copper) ports quantity: 8

10G Ethernet (copper) ports quantity: 1

Power over Ethernet 4PPoE (PoE++) ports quantity: 1

Operating relative humidity (H-H): 10 - 90 %

10G support: yes

Forwarding rate: 44.64 Mpps

Power consumption (max): 17 W

Power supply included: no

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3738675 Ubiquiti Networks USW-Flex-2.5G-8-PoE Flex 2.5G PoE Network switch

Description

Flexible 8-port 2.5 GbE PoE+ switch with a 10 GbE RJ45/SFP+ combo uplink port that can be powered with PoE++ or an AC power supply*.

This text is machine translated.

Hints

*Power supply available separately.

What kind of Network Switches are you looking for?

Accessories

(^*All information is plus legal VAT)

The necessary accessories are required to use the article as described.

Phoenix Contact 1656725 VS-08-RJ45-5-Q/IP20 RJ45-Plug Connector IP20 - CAT5e 8 RJ45 Plug, straight Grey

Conrad Electronic

€ 21.84^*

Lumberg 2533 01 2533 01 Protective Cap - RJ45 RJ45 Black

Conrad Electronic

€ 0.53^*

Renkforce RF-4538220 RJ45 Network cable, patch cable CAT 6A S/FTP 20.00 m Black incl. ring pull unlocking 1 pc(s)

Conrad Electronic

€ 10.08^*

Renkforce RF-4538216 RJ45 Network cable, patch cable CAT 6A S/FTP 0.50 m Black incl. ring pull unlocking 1 pc(s)

Conrad Electronic

€ 4.61^*

Renkforce RF-4538214 RJ45 Network cable, patch cable CAT 6A S/FTP 0.25 m Black incl. ring pull unlocking 1 pc(s)

Conrad Electronic

€ 4.61^*

TRU COMPONENTS CAT 6a RJ45 plug connector, tool-free 1610346 Plug, straight No. of pins (RJ) 8P8C 1 pc(s)

Conrad Electronic

€ 7.13^*

Renkforce RF-4149846 RJ45 Network cable, patch cable CAT 6A U/FTP 5.00 m Grey highly flexible, incl. detent, Flame-retar

Conrad Electronic

€ 7.97^*

More interesting products

(^*All information is plus legal VAT)

Renkforce Network switch 3 ports 100 MBit/s

Conrad Electronic

€ 13.44^*

Renkforce RF-4270245 RF-4270245 Network switch 4 ports 1000 MBit/s USB power supply

Conrad Electronic

€ 43.69^*

-16%

Renkforce RF-4133262 Network switch 5 ports 1 GBit/s

Conrad Electronic

€ 57.97

€ 48.73^*

Renkforce RF-4451433 RF-4451433 Network switch 5 ports 100 MBit/s USB power supply

Conrad Electronic

€ 20.16^*

Renkforce RF-4288692 Network switch 5 ports 100 MBit/s

Conrad Electronic

€ 15.96^*

Renkforce RF-6739678 RF-GES-200 Network RJ45 switch 2 ports USB power supply

Conrad Electronic

€ 11.76^*

Renkforce RF-6385004 RF-6385004 Network RJ45 switch 5 ports 1 GBit/s

Conrad Electronic

€ 14.28^*

Renkforce RF-6736628 RF-EW-700 Network RJ45 switch 2 ports 5 GBit/s USB power supply

Conrad Electronic

€ 10.08^*

Renkforce RF-6739680 RF-GES-400 Network RJ45 switch 5 ports 1 GBit/s USB power supply

Conrad Electronic

€ 15.12^*

Renkforce RF-3394868 FEH-800 Industrial Ethernet switch

Conrad Electronic

€ 96.63^*

SpeaKa Professional SP-GNS-240 Splitter 2 ports USB C® 1 GBit/s USB power supply

Conrad Electronic

€ 15.96^*

TRU COMPONENTS TC-9744164 Industrial Ethernet switch 1+4 ports 10 / 100 MBit/s

Conrad Electronic

€ 67.22^*

TP-LINK TL-SG105E TL-SG105E Network switch 5 ports 1 GBit/s

Conrad Electronic

€ 17.64^*

TRU COMPONENTS TC-9744168 Industrial Ethernet switch 1+4 ports 10 / 100 / 1000 MBit/s

Conrad Electronic

€ 88.23^*

Renkforce SP-13748848 RF-NS-200 Splitter 4 ports 1 GBit/s

Conrad Electronic

€ 33.61^*

SpeaKa Professional SP-GNS-190 Splitter 1+1 ports RJ45, USB C® 1 GBit/s USB power supply

Conrad Electronic

€ 14.28^*

TRU COMPONENTS TC-XL-205GP Industrial Ethernet switch 1+4 ports 10 / 100 / 1000 MBit/s PoE

Conrad Electronic

€ 75.62^*

Renkforce RF-3394866 FEH-500 Industrial Ethernet switch

Conrad Electronic

€ 117.64^*

Renkforce RF-3336016 GSHS800 Network switch

Conrad Electronic

€ 142.85^*

Siemens 6GK52062BD002AC2 6GK5206-2BD00-2AC2 Industrial Ethernet switch 10 / 100 MBit/s

Conrad Electronic

€ 1,189.08^*

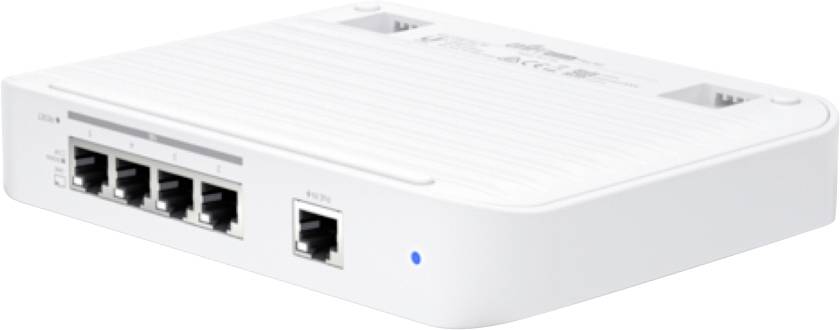

Ubiquiti Networks USW-Flex-XG Flex 10 GbE Network switch

Conrad Electronic

€ 284.87^*

Ubiquiti Networks USW-PRO-8-POE UniFi USW Pro Network switch 8 + 2 ports PoE

Conrad Electronic

€ 301.68^*

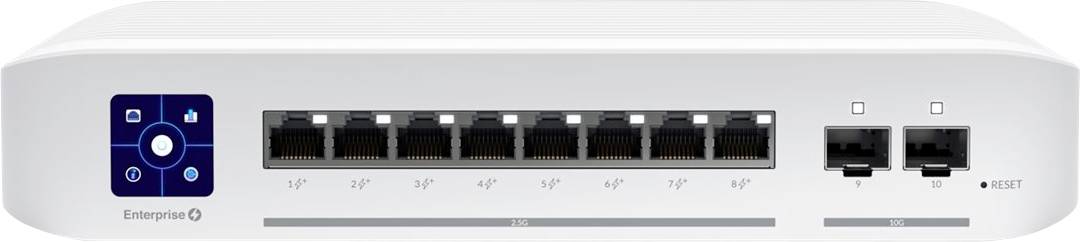

Ubiquiti Networks USW-ENTERPRISE-8-POE UniFi USW-Enterprise Network switch 8 + 2 ports PoE

Conrad Electronic

€ 486.55^*

Ubiquiti Networks A121455 USW-LITE-16-POE Network switch 16 ports 1 GBit/s

Conrad Electronic

€ 197.47^*

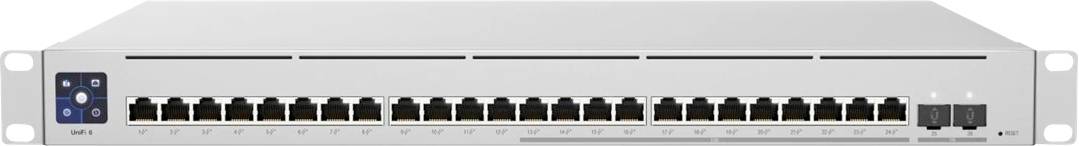

Ubiquiti Networks USW-ENTERPRISE-24-POE UniFi USW-Enterprise Network switch 24 + 2 ports PoE

Conrad Electronic

€ 873.11^*

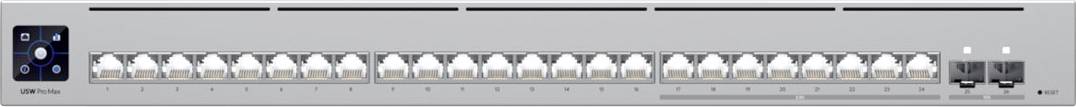

Ubiquiti Networks USW-PRO-MAX-24 UniFi USW Pro Max Network switch 24 + 2 ports
