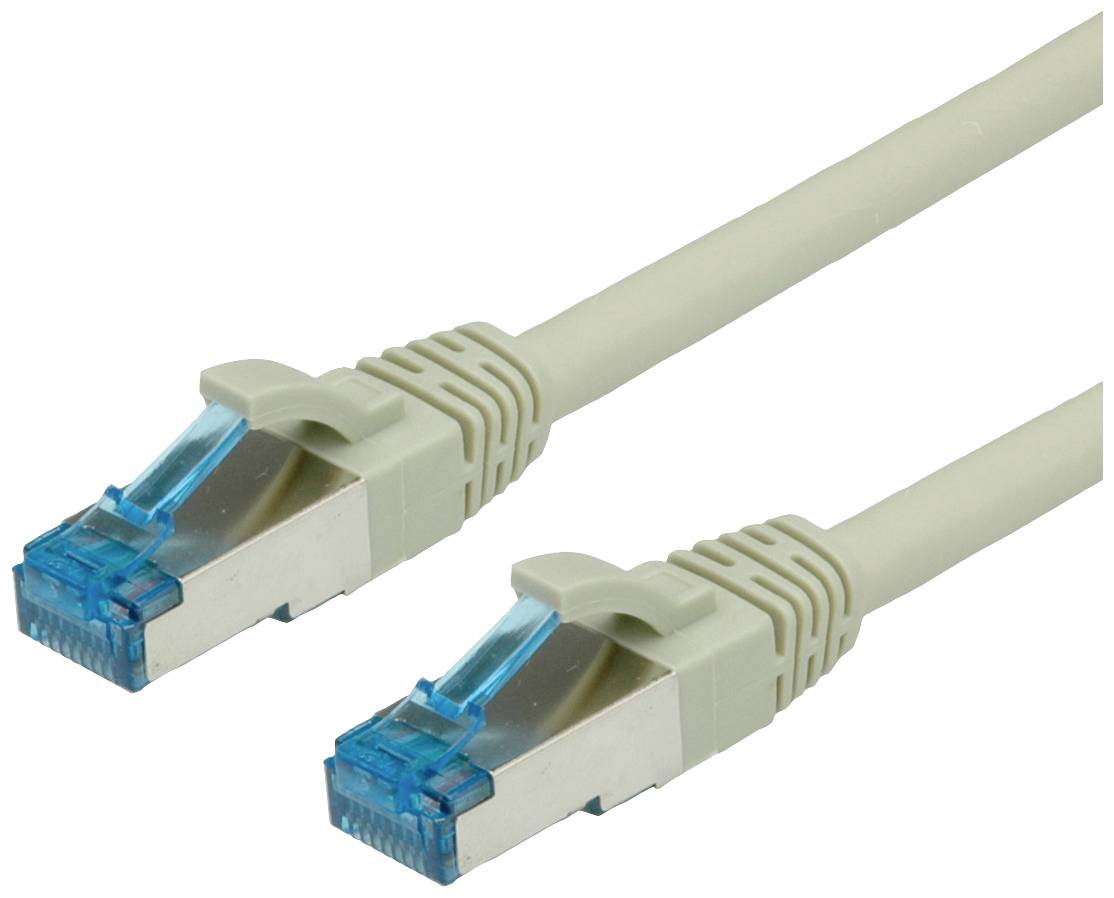

Value 21.99.0867 RJ45 Patch cable CAT 6A S/FTP 10.00 m Grey double shielding, Halogen-free, Flame-retardant 1 pc(s)
EAN:
Part number:
Item no:
Product type
Patch cable
Specification
CAT 6A
Shielding
S/FTP
Connection type
RJ45
Cable length
10.00 m
Number
Total (€ 10.92 / piece)
€ 10.92
plus VAT.
Technical specifications
- Wire type: Stranded wireNumber of wires 8Weight 285.8 gCable LSOH: Yes
- Product type
Patch cable
CAT 6A
S/FTP
- Connection type
RJ45
- No. of A connectors
1 x
- Type A
RJ45 plug
- No. of B connections
1 x
- Type B
RJ45 plug
- Cable length
10.00 m
- Factory colour
Grey
- Connector version
straight
- Cable features
double shielding
Halogen-free
Flame-retardant
- Cable use
Networks
- Version
Cable
Copper
- Max. frequency
500 MHz
- LAN transfer rate
100 MBit/s
1000 MBit/s
2500 MBit/s
10000 MBit/s
- Halogen-free
Yes
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2557636 Value 21.99.0867 RJ45 Patch cable CAT 6A S/FTP 10.00 m Grey double shielding, Halogen-free, Flame-retardant 1 pc(s)
Description
The economical solution for Cat.6A cabling for data rates up to 10Gbit/s. Double shielded (PiMF) twisted pair connection cable with shielded RJ-45 plugs attached on both sides. Suitable as patch cable in patch fields or as device connection cable. Sturdy with sprayed kink protection. Contact assignment 1:1 according to EIA/TIA 568, 8 wires. Design: 8 wires stranded wire, pair-wise shielding in aluminum-laminated foil, braided shield. Impedance 100 Ohm. Halogen-free, flame-resistant, low smoke. The following components are recommended for the construction of a shielded structured Cat.6A cabling: 25.16.8484 surface frame for keystones. 25.16.8579 Module acceptance for keystones, 2fach. 21.99.0881 VALUE S/FTP Installation cable Solid wire Cat.6A, 100m. 26.99.0366 VALUE Cat.6A keystone, RJ-45, STP. 21.99.0865 VALUE S/FTP patch cable, Cat.6A, gray, 5.0m. 26.11.0359/26.11.0360 19" keystone patch panel, unfitted, 24 ports.
