Name: VER A-2YF(L)2Y 4x2x0,8 Tr.500 Data cable A-2YF(L)2Y 4 x 2 x 0.8 mm² 500 m
SKU: 3336546

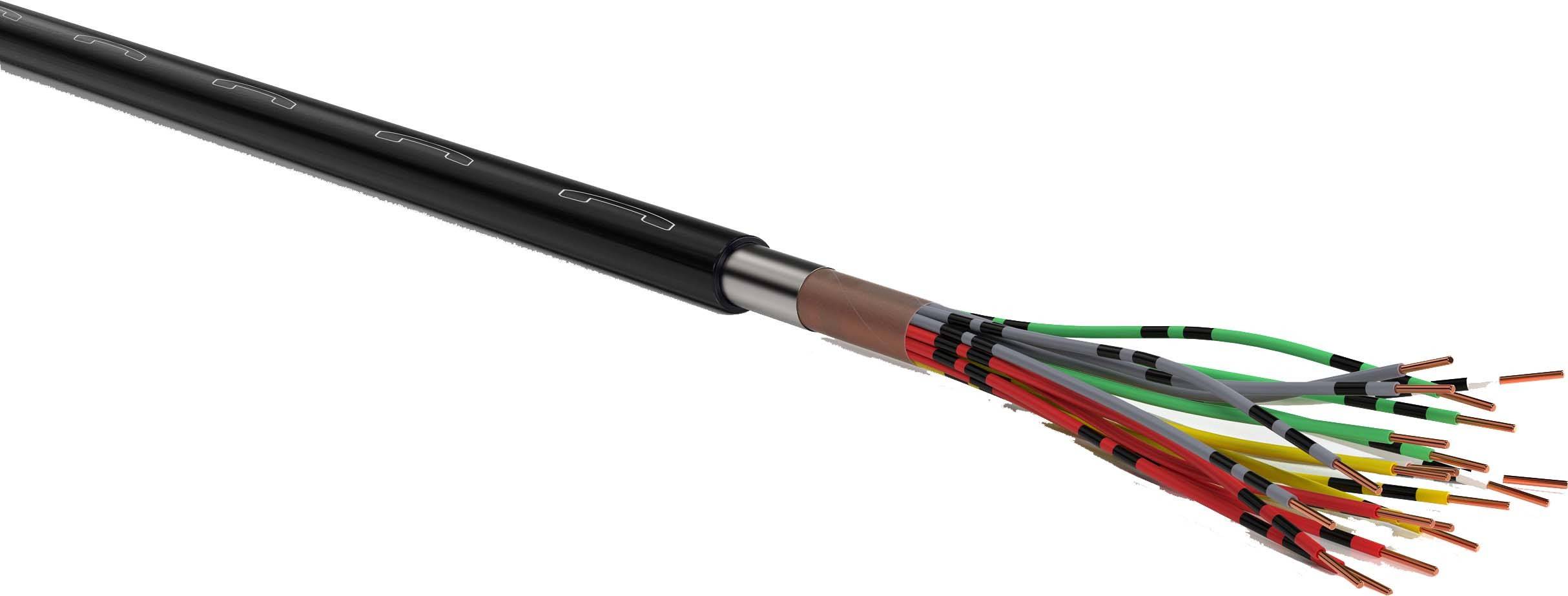

Multi-core cable with coloured insulating layers surrounding the different copper conductors.

Image similar

Product type

Data cable

No. of leads

8 x

Cross section (each core)

0.8 mm²

Cable type

A-2YF(L)2Y

Twisted pair cabling (part 1)

Yes (1)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Conductor class: Single-wire
Specification of wire insulation: Polyethylene (PE)
Wire identification color + rings
Wire diameter 0.8 mm
Number of rope elements: 4
Wire rope element: Four-fold
Shield over wire element: Without
Wiring: Bundles and layers
Shield over stranding: Without
Cable longitudinally watertight: Yes
Cable transverse water-tightness: Yes
Protection sheath AL/PE/PA
Min Permitted bending radius, stationary use/fixed installation: 135 mm
Specification of sheath material: Polyethylene (PE)

Product type: Data cable

Cable type: A-2YF(L)2Y

No. of leads: 8 x

Cross section (each core): 0.8 mm²

Twisted pair cabling (part 1): Yes (1)

Cross section: 4 x 2 x 0.8 mm²

Outside Ø: 13.50 mm

Content: 500 m

Packaged: Yes

Manufacturer part #: VER A-2YF(L)2Y 4x2x0,8 Tr.500

Min. temperature range (flexible installation): -20 °C

Max. temperature range (flexible installation): 50 °C

Min. temperature range (fixed installation): -20 °C

Max. temperature range (fixed installation): 70 °C

Type: VER A-2YF(L)2Y 4x2x0,8 Tr.500

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3336546 VER A-2YF(L)2Y 4x2x0,8 Tr.500 Data cable A-2YF(L)2Y 4 x 2 x 0.8 mm² 500 m

Description

Complies with VDE 0816. Works as a connection cable in local networks and extension systems for long-distance calls and transmission of signals over shorter distances. Intended for direct laying in the ground or in cable ducts and cable ducts. The rope cavities are continuously filled with petrols, longitudinally watertight. The outer sheath is UV-resistant.

This text is machine translated.
