Technical specifications
- Conductor class: Single-wire
- Wire identification: Colour
- Fire classification to EN 13501-6: ECA
- Wire diameter 0.8 mm
- Number of rope elements: 1
- Wire rope element: Four-fold
- Shield over wire element: Without
- Versioning: Layers
- Shield over stranding: Foil
- Cable longitudinally watertight: No.
- Cable transverse water-proof: No.
- Protection jacket: Without
- Min Permitted bending radius, stationary use/fixed installation: 51 mm
- Halogen-free according to IEC 60754-2: Yes
- Product type
Data cable
- Cable type
EIB-HStH
- No. of leads
4 x
- Cross section (each core)
0.8 mm²
- Twisted pair cabling (part 1)
Yes (1)
- Cross section
2 x 2 x 0.8 mm²
- Outside Ø
6.80 mm
- Factory colour
Green
- Content
100 m
- Packaged
Yes
- Manufacturer part #
VER EIB-HStH 2x2x0,8 Eca Ri100
- Min. temperature range (flexible installation)
-5 °C
- Max. temperature range (flexible installation)
50 °C
- Min. temperature range (fixed installation)
-30 °C
- Max. temperature range (fixed installation)
70 °C
- Type
VER EIB-HStH 2x2x0,8 Eca Ri100
Documents & Downloads
User & Safety Instructions

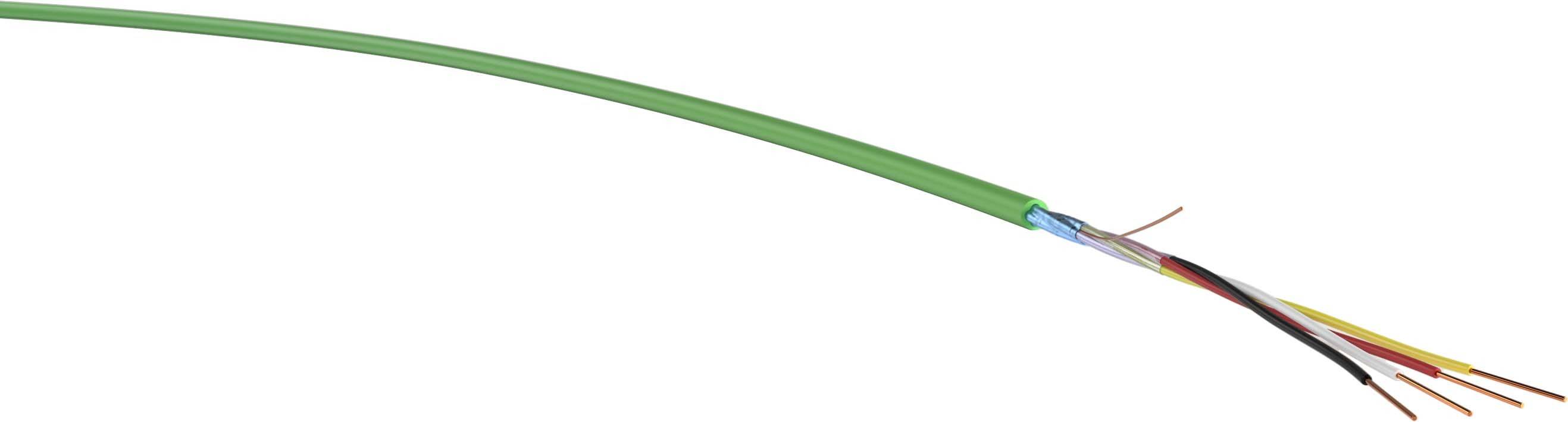

User & Safety Instructions 3336406 VER EIB-HStH 2x2x0,8 Eca Ri100 Data cable EIB-HStH 2 x 2 x 0.8 mm² Green 100 m
Description
The cable is designed for transmission of the bus signals in the building system technology. It can also be used for the transmission of measured values as an MSR cable in power plants or in process data processing.
This text is machine translated.
This text is machine translated.
Hints
Made in Europe
