Technical specifications
- Conductor class: Single-wire
- Wire identification: Colour
- Jacket material: Polyvinyl chloride (PVC)
- Fire classification to EN 13501-6: ECA
- Wire diameter 0.8 mm
- Number of rope elements: 1
- Wire rope element: Four-fold
- Shield over wire element: Without
- Versioning: Layers
- Shield over stranding: Foil
- Min Permitted bending radius, stationary use/fixed installation: 51 mm
- Product type
Data cable
- Cable type
EIB-YStY
- No. of leads
4 x
- Cross section (each core)
0.8 mm²
- Twisted pair cabling (part 1)
Yes (1)
- Cross section
2 x 2 x 0.8 mm²
- Outside Ø
6.80 mm
- Factory colour
Green
- Content
250 m
- Packaged
Yes
- Manufacturer part #
VER EIB-YStY 2x2x0,8 Eca Ri250
- Insulation material
Polyvinyl chloride
- Min. temperature range (flexible installation)
-5 °C
- Max. temperature range (flexible installation)
50 °C
- Min. temperature range (fixed installation)
-30 °C
- Max. temperature range (fixed installation)
70 °C
- Type
VER EIB-YStY 2x2x0,8 Eca Ri250
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3337664 VER EIB-YStY 2x2x0,8 Eca Ri250 Data cable EIB-YStY 2 x 2 x 0.8 mm² Green 250 m
Description

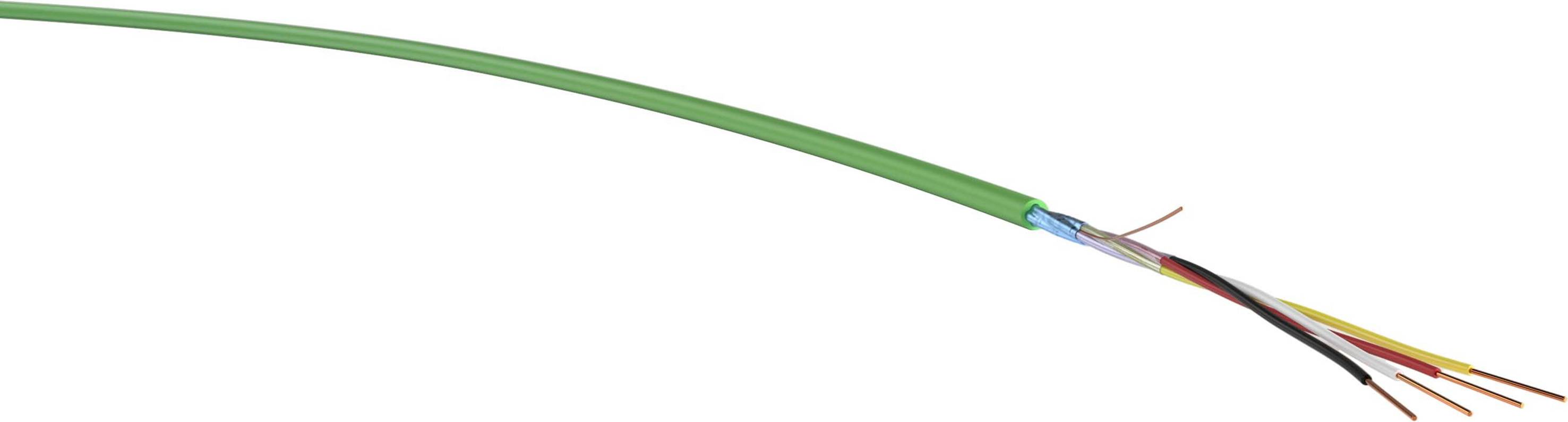

The cable is designed for transmission of the bus signals in the building system technology. It can also be used for the transmission of measured values as an MSR cable in power plants or in process data processing.
This text is machine translated.
This text is machine translated.
Hints
Made in Europe
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
