Name: VER EUP NHXH E30 3x 1,5RE T Power feed NHXH 2 x 1.50 mm² Orange 500 m
SKU: 3336403

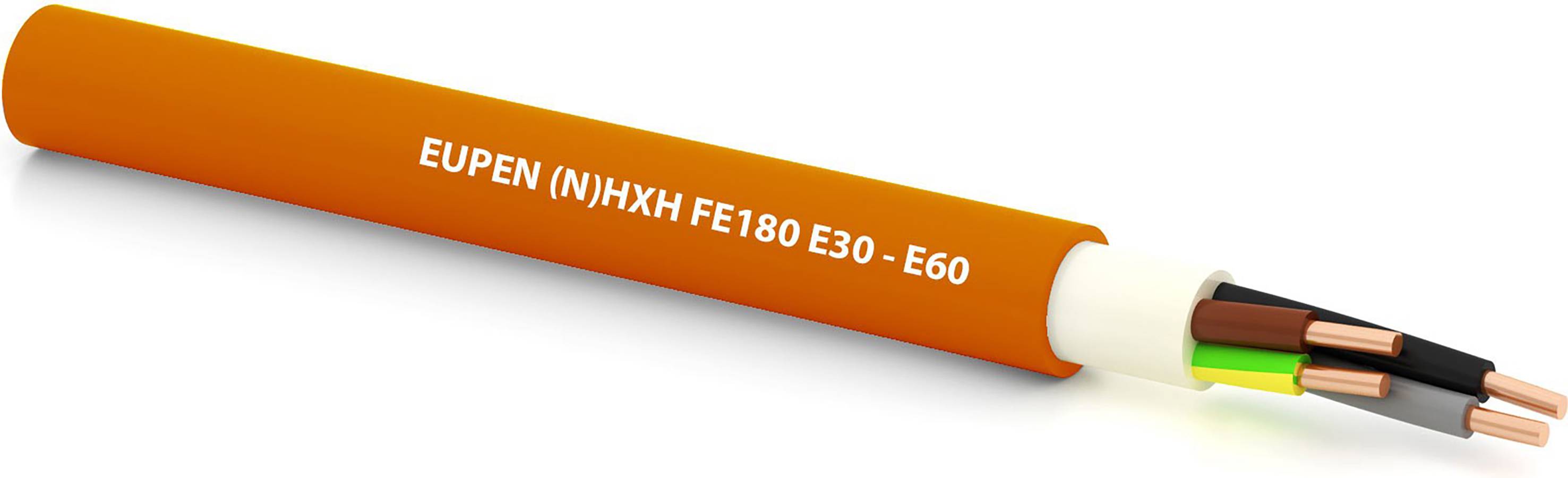

An orange cable marked 'EUPEN (N)HXH FE180 E30 - E60', reveals copper wires with black, green, and yellow insulation.

Product type

Power feed

Cable type

NHXH

No. of leads

2 x

Cross section (each core)

1.50 mm²

Cable features

Flat

Flexible

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Conductor material: Copper
Conductor class: Single-wire
Wire identification: Colour
With ground wire: Yes
Max. Load Conductor temperature 90 °C
Side wire: No.
Sheath material: Polyolefin
Fire classification according to EN 13501-6: Without
Conductor surface: Plain
Min Permitted bending radius, stationary use/fixed installation: 112.8 mm
Oil resistant according to EN 60811-404: No.
Low smoke in accordance with IEC 61034-2: Yes
Halogen-free according to IEC 60754-2: Yes
Smoke generation class according to EN 13501-6: Without
Drip protection class according to EN 13501-6: Without
Acid development class according to EN 13501-6: Without
Conductor shape: Round
Lead jacket: No.
Concentric conductor: Without
Layer sheath: No.
Fibre optic elements: No.
Inner control layer: No.
Ã"Outer conductive layer: No.
Conductive coating: No.
Conductor longitudinally watertight: No.
Longitudinally watertight: No.

Product type: Power feed

Cable type: NHXH

No. of leads: 2 x

Cross section (each core): 1.50 mm²

Cross section: 2 x 1.50 mm²

Cable features: Flat
Flexible

Outside Ø: 9.40 mm

Factory colour: Orange

Content: 500 m

Nominal voltage: 1000 V

Nominal voltage U0: 600 V

Packaged: Yes

Sold per metre: No

Halogen-free: Yes

Manufacturer part #: VER EUP NHXH E30 3x 1,5RE T

Insulation material: Polyolefin

Min. temperature range (flexible installation): -5 °C

Max. temperature range (flexible installation): 50 °C

Min. temperature range (fixed installation): -25 °C

Max. temperature range (fixed installation): 80 °C

Max. length sold by the metre: 500 m

Type: VER EUP NHXH E30 3x 1,5RE T

Shielded: No

Documents & Downloads

Datasheet

Datasheet 3336403 VER EUP NHXH E30 3x 1,5RE T Power feed NHXH 2 x 1.50 mm² Orange 500 m

User & Safety Instructions

User & Safety Instructions 3336403 VER EUP NHXH E30 3x 1,5RE T Power feed NHXH 2 x 1.50 mm² Orange 500 m

Description

Complies with VDE 0266, VDE 0276-604 and DIN 4102-12. In internal rooms, in air or in concrete. Laying in soil or water is only permitted in the pipe if precautions are taken to prevent water accumulation in the pipe. Suitable for connection of devices of protection class II.
