Name: VER H07V-U 16 gn/ge Ri.100 Wire core (H)07V-U 1 x 16 mm² Green-yellow 100 m
SKU: 3337300

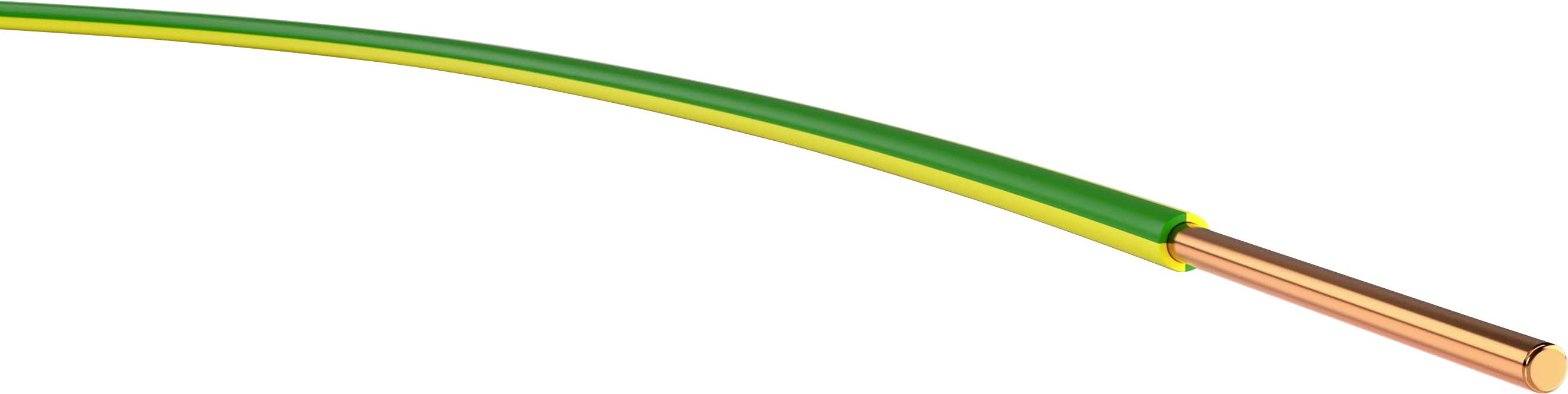

An isolated electrical cable with a green and yellow outer sheathing, which surrounds a copper wire. It is commonly used for earthing.

Product type

Wire core

Cable type

(H)07V-U

No. of leads

1 x

Cross section (each core)

16 mm²

No. of leads (part 2)

1 x

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Conductor material: Copper
Conductor class: Single-wire
Wire color: Green/yellow
Working temperature 5 - 70 °C
Oil resistant according to EN 60811-404: No.
Cold resistant according to EN 60811-504+505+506: No.
Smoke arm according to IEC 61034-2: No.

Product type: Wire core

Cable type: (H)07V-U

No. of leads: 1 x

Cross section (each core): 16 mm²

No. of leads (part 2): 1 x

Cross section (each core) (part 2): 16 mm²

Cross section: 1 x 16 mm² + 1 x 16 mm²

Cable features: Flat
Flexible

Outside Ø: 6.40 mm

Factory colour: Green-yellow

Content: 100 m

Nominal voltage: 750 V

Nominal voltage U0: 450 V

Packaged: Yes

Sold per metre: Yes

Manufacturer part #: VER H07V-U 16 gn/ge Ri.100

Insulation material: Polyvinyl chloride

Min. temperature range (fixed installation): 5 °C

Max. temperature range (fixed installation): 70 °C

Max. length sold by the metre: 100 m

Type: VER H07V-U 16 gn/ge Ri.100

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3337300 VER H07V-U 16 gn/ge Ri.100 Wire core (H)07V-U 1 x 16 mm² Green-yellow 100 m

Description

Complies with VDE 0281. In dry rooms, in devices, switchgear and distributors, in pipes on and under plaster as well as in closed installation channels. In protected laying in and at lights. In and on electronic equipment in power plants for the purpose of measuring, controlling and regulating. Not permitted for direct installation in walls. Max. operating temperature: 70 °C
