Name: VER JHSTH 10x2x0,8gr Eca T500 Data cable JHSTH 10 x 2 x 0.8 mm² Grey 500 m
SKU: 3335891

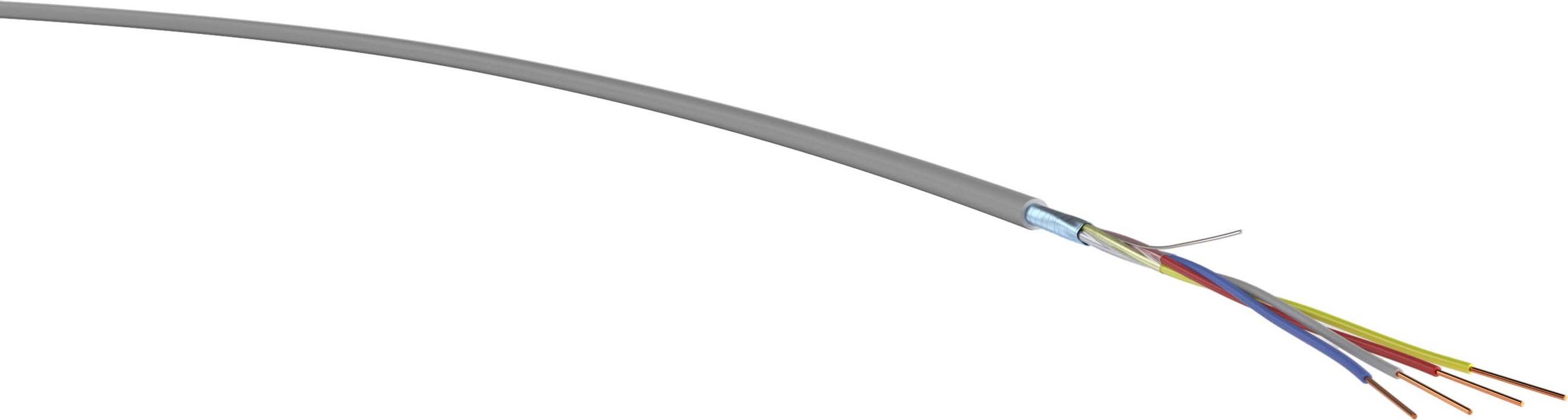

A grey cable with multiple coloured copper cores protruding from the insulating sheath.

Image similar

Product type

Data cable

No. of leads

20 x

Cross section (each core)

0.8 mm²

Cable type

JHSTH

Twisted pair cabling (part 1)

Yes (1)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Conductor class: Single-wire
Wire identification color + rings
Fire classification to EN 13501-6: ECA
Conductor surface: Plain
Wire diameter 0.8 mm
Number of rope elements: 10
Wire rope element: Pairs
Shield over wire element: Without
Wiring: Bundle
Shield over stranding: Foil
Cable longitudinally watertight: No.
Cable transverse water-proof: No.
Protection jacket: Without
Min Permitted bending radius, stationary use/fixed installation: 150 mm

Product type: Data cable

Cable type: JHSTH

No. of leads: 20 x

Cross section (each core): 0.8 mm²

Twisted pair cabling (part 1): Yes (1)

Cross section: 10 x 2 x 0.8 mm²

Outside Ø: 15.00 mm

Factory colour: Grey

Content: 500 m

Packaged: Yes

Halogen-free: Yes

Manufacturer part #: VER JHSTH 10x2x0,8gr Eca T500

Min. temperature range (flexible installation): -5 °C

Max. temperature range (flexible installation): 50 °C

Min. temperature range (fixed installation): -30 °C

Max. temperature range (fixed installation): 70 °C

Type: VER JHSTH 10x2x0,8gr Eca T500

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3335891 VER JHSTH 10x2x0,8gr Eca T500 Data cable JHSTH 10 x 2 x 0.8 mm² Grey 500 m

Description

Complies with VDE 0815. Halogen-free installation cables with improved fire behavior in case of fire are used for telephone transmission, for measurement and signal purposes. The design with a static shield (plug) protects the transmission circuits against external electrical interference fields. A fire transmission is prevented by the high oxygen index of the insulation and the sheath. They do not release any corrosive gases in the event of a fire. Preferably used for telecommunications installations within buildings and in special cases also outdoors under protection against exposure to sunlight. Max. operating temperature: 70 °C

This text is machine translated.
