Name: VER JY(ST)Y 10x2x0,8Eca Ri100 Data cable JY(ST)Y 10 x 2 x 0.8 mm² Grey 100 m
SKU: 3335883

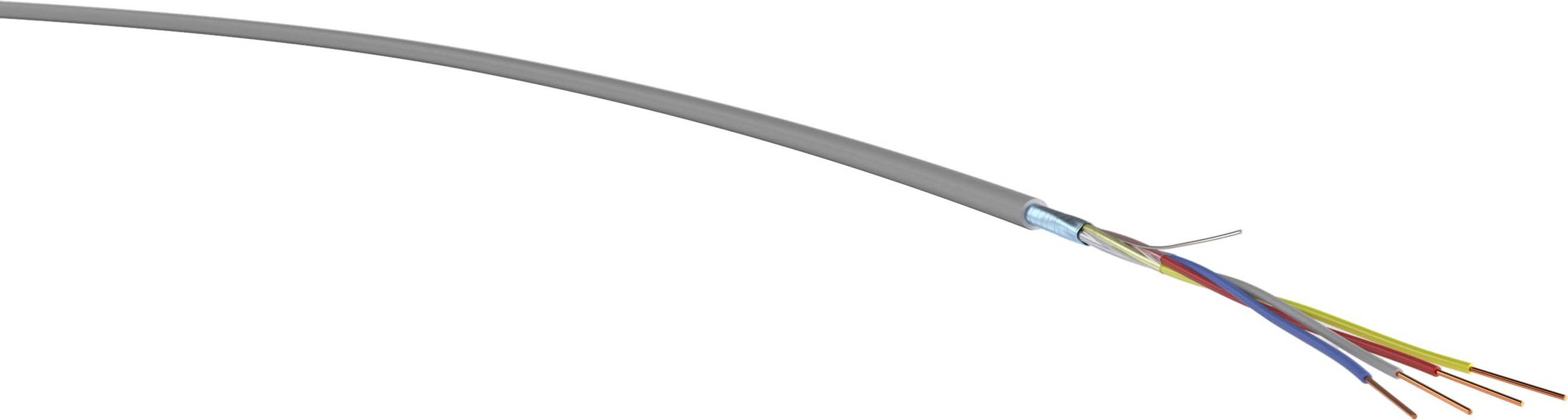

A half-stripped grey cable reveals multiple colourful, exposed wires.

Image similar

Product type

Data cable

No. of leads

20 x

Cross section (each core)

0.8 mm²

Cable type

JY(ST)Y

Twisted pair cabling (part 1)

Yes (1)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Conductor class: Single-wire
Wire identification: Colour
Jacket material: Polyvinyl chloride (PVC)
Fire classification to EN 13501-6: ECA
Wire diameter 0.8 mm
Number of rope elements: 10
Wire rope element: Pairs
Shield over wire element: Without
Versioning: Layers
Shield over stranding: Foil
Cable longitudinally watertight: No.
Cable transverse water-proof: No.
Protection jacket: Without
Min Permitted bending radius, stationary use/fixed installation: 140 mm

Product type: Data cable

Cable type: JY(ST)Y

No. of leads: 20 x

Cross section (each core): 0.8 mm²

Twisted pair cabling (part 1): Yes (1)

Cross section: 10 x 2 x 0.8 mm²

Outside Ø: 14.00 mm

Factory colour: Grey

Content: 100 m

Packaged: Yes

Manufacturer part #: VER JY(ST)Y 10x2x0,8Eca Ri100

Insulation material: Polyvinyl chloride

Min. temperature range (flexible installation): -5 °C

Max. temperature range (flexible installation): 50 °C

Min. temperature range (fixed installation): -30 °C

Max. temperature range (fixed installation): 70 °C

Type: VER JY(ST)Y 10x2x0,8Eca Ri100

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3335883 VER JY(ST)Y 10x2x0,8Eca Ri100 Data cable JY(ST)Y 10 x 2 x 0.8 mm² Grey 100 m

Description

Complies with VDE 0815. For remote installation within buildings in dry and damp rooms, as well as in the open for permanent routing at external walls of buildings. The transmission circuits are protected against external electrical interference fields by the static shield (ST). For communication station and extension line, but also suitable for signal and measurement data transmission. Max. operating temperature: 70 °C
