Name: VER LIYCY-OB 2x 1,5 Ri.100 Data cable LIYCY-OB 2 x 1.5 mm² Grey 100 m
SKU: 3336742

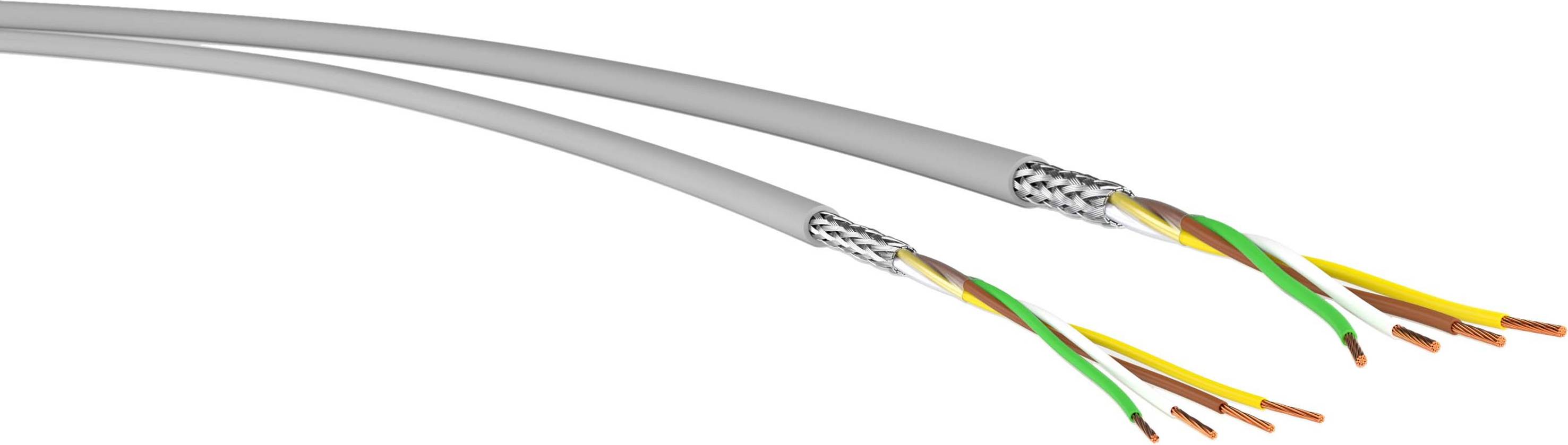

Two grey cables with exposed copper wires at the ends, partially coated in green, yellow, and red insulation.

Image similar

Product type

Data cable

No. of leads

2 x

Cross section (each core)

1.5 mm²

Cable type

LIYCY-OB

Cross section

2 x 1.5 mm²

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Conductor class: Fine strands
Wire identification: Colour
Jacket material: Polyvinyl chloride (PVC)
Conductor surface: Plain
Rope element: No.
Shield over wire element: Without
Shield over stranding: Braid
Cable longitudinally watertight: No.
Cable transverse water-proof: No.
Min Permitted bending radius, stationary use/fixed installation: 75 mm
Min Permissible bending radius, flexible use with positive guide: 150 mm

Product type: Data cable

Cable type: LIYCY-OB

No. of leads: 2 x

Cross section (each core): 1.5 mm²

Cross section: 2 x 1.5 mm²

Outside Ø: 7.50 mm

Factory colour: Grey

Content: 100 m

Packaged: Yes

Manufacturer part #: VER LIYCY-OB 2x 1,5 Ri.100

Insulation material: Polyvinyl chloride

Min. temperature range (flexible installation): -5 °C

Max. temperature range (flexible installation): 80 °C

Min. temperature range (fixed installation): -40 °C

Max. temperature range (fixed installation): 80 °C

Type: VER LIYCY-OB 2x 1,5 Ri.100

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3336742 VER LIYCY-OB 2x 1,5 Ri.100 Data cable LIYCY-OB 2 x 1.5 mm² Grey 100 m

Description

As data cable in control and regulation technology, tool and mechanical engineering, in computing systems, and as signal cable in electronics. The high shielding density ensures interference-free transmission of signals and pulses. Max. operating temperature: 80 °C
