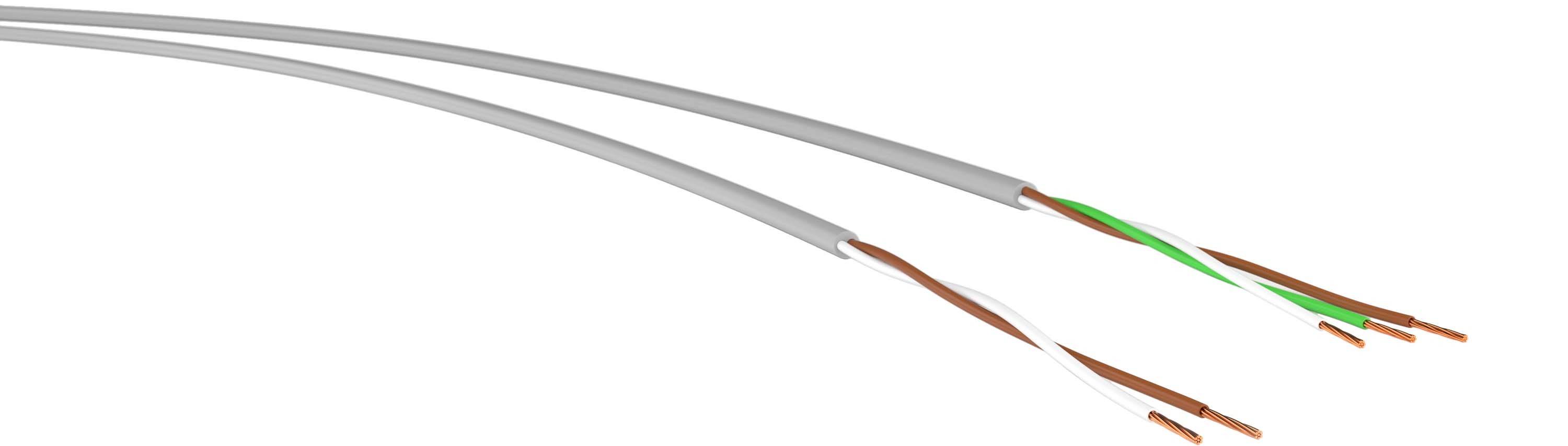

Image similar
Technical specifications
- Conductor class: Fine strands
- Wire identification: Colour
- With ground wire: No.
- Jacket material: Polyvinyl chloride (PVC)
- Rope element: No.
- Shield over wire element: Without
- Shield over stranding: Without
- Min Permitted bending radius, stationary use/fixed installation: 36 mm
- Oil resistant according to EN 60811-404: No.
- Cold resistant according to EN 60811-504+505+506: No.
- Smoke arm according to IEC 61034-2: No.
- Min Permissible bending radius, flexible use/free movement: 72 mm
- Product type
Power feed
- Cable type
LIYY-OB
- No. of leads
4 x
- Cross section (each core)
0.14 mm²
- No. of leads (part 2)
4 x
- Cross section (each core) (part 2)
0.14 mm²
- Cross section
4 x 0.14 mm² + 4 x 0.14 mm²
- Cable features
Flat
Flexible
- Outside Ø
3.60 mm
- Factory colour
Grey
- Content
100 m
- Nominal voltage
300 V
- Packaged
Yes
- Manufacturer part #
VER LIYY-OB 4x 0,14 Ri.100
- Insulation material
Polyvinyl chloride
- Min. temperature range (flexible installation)
-5 °C
- Max. temperature range (flexible installation)
50 °C
- Min. temperature range (fixed installation)
-30 °C
- Max. temperature range (fixed installation)
80 °C
- Type
VER LIYY-OB 4x 0,14 Ri.100
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3337614 VER LIYY-OB 4x 0,14 Ri.100 Power feed LIYY-OB 4 x 0.14 mm² Grey 100 m
Description
Used at all places, where the smallest possible control and signal cables are required in the outer diameter through design or structural measures, such as in machines, tools and plant construction, as well as in electronics. In addition in computer systems, scales, as well as in measurement and control technology. Max. operating temperature: 80 °C
This text is machine translated.
This text is machine translated.
Hints
Made in Europe
