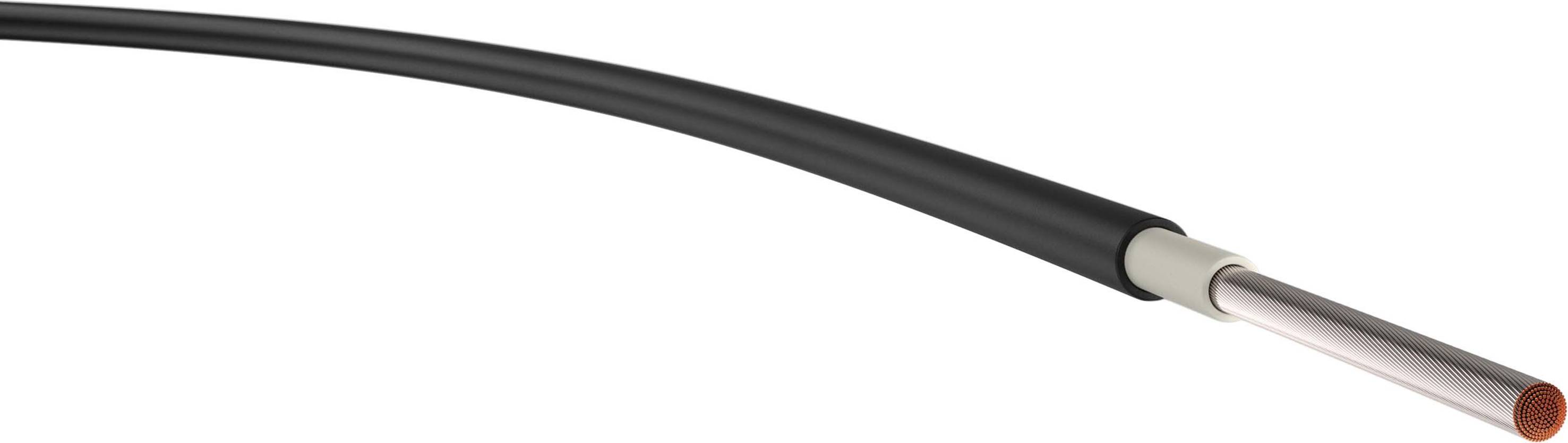

Image similar
Technical specifications
- Conductor material: Copper
- Conductor class: Fine strands
- Specification Wire insulation: Rubber - ethylene propylene rubber (EPR)
- Side wire: No.
- Min Permitted bending radius, stationary use/fixed installation: 32 mm
- Smoke arm according to IEC 61034-2: No.
- Conductor shape: Round
- Lead jacket: No.
- Concentric conductor: Without
- Fibre optic elements: No.
- Conductive coating: No.
- Conductor longitudinally watertight: No.
- Product type
Power feed
- Cable type
NSGAFÖU
- No. of leads
1 x
- Cross section (each core)
2.50 mm²
- No. of leads (part 2)
1 x
- Cross section (each core) (part 2)
2.50 mm²
- Cross section
1 x 2.50 mm² + 1 x 2.50 mm²
- Cable features
Flat
Flexible
- Outside Ø
6.40 mm
- Factory colour
Black
- Content
50 m
- Nominal voltage
3000 V
- Nominal voltage U0
1800 V
- Packaged
Yes
- Sold per metre
No
- Manufacturer part #
VER NSGAFÖU 2,5 sw Ri. 50
- Insulation material
Rubber
- Min. temperature range (flexible installation)
-25 °C
- Max. temperature range (flexible installation)
80 °C
- Min. temperature range (fixed installation)
-40 °C
- Max. temperature range (fixed installation)
80 °C
- Max. length sold by the metre
50 m
- Type
VER NSGAFÖU 2,5 sw Ri. 50
- Shielded
No
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3336699 VER NSGAFÖU 2,5 sw Ri. 50 Power feed NSGAFÖU 1 x 2.50 mm² Black 50 m
Description
For the use in rail vehicles and buses as well as in dry rooms. Short-circuit proof cable.
This text is machine translated.
This text is machine translated.
Hints
Made in Europe
