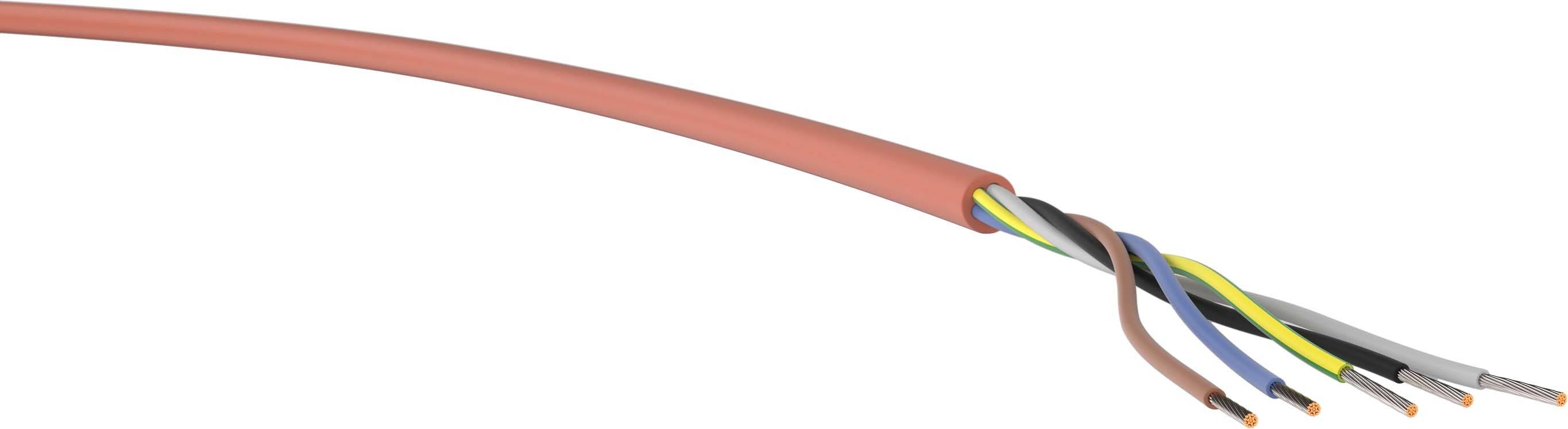

Image similar
Technical specifications
- Conductor class: Fine strands
- Specification Wire insulation: Rubber - silicone rubber (SIR)
- With ground wire: Yes
- Min Permitted bending radius, stationary use/fixed installation: 26 mm
- Specification of sheath material: Rubber - silicone RUBBER (SIR)
- Cable geometry: Round
- Min Permissible bending radius, flexible use/free movement: 34 mm
- Product type
Power feed
- Cable type
SIHF-JB
- No. of leads
5 x
- Cross section (each core)
0.75 mm²
- No. of leads (part 2)
5 x
- Cross section (each core) (part 2)
0.75 mm²
- Cross section
5 x 0.75 mm² + 5 x 0.75 mm²
- Cable features
Flat
Flexible
- Outside Ø
8.50 mm
- Content
50 m
- Nominal voltage
500 V
- Nominal voltage U0
300 V
- Packaged
Yes
- Manufacturer part #
VER SIHF-JB 5x 0,75 Ri. 50
- Insulation material
Rubber
- Min. temperature range (fixed installation)
-60 °C
- Max. temperature range (fixed installation)
180 °C
- Max. length sold by the metre
50 m
- Type
VER SIHF-JB 5x 0,75 Ri. 50
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3337386 VER SIHF-JB 5x 0,75 Ri. 50 Power feed SIHF-JB 5 x 0.75 mm² 50 m
Description
Used at places where high temperature fluctuations make conventional PVC-insulated cables fragile or rough. The insulation is built on silicon-rubber basis. It is resistant to vegetable and animal fats, many oils and dilute acids as well as decomposition by alcohols, plasticizers, lyes and salt solutions. The insulation is tropical and resistant to oxygen and ozone. In case of fire, an insulating layer around the bare wires is created. Max. operating temperature: 180 °C
This text is machine translated.
This text is machine translated.
Hints
Made in Europe
