Name: Victron Energy VRLA charger Blue Smart 12/30 12 V Charging current (max.) 30 A
Brand: Victron Energy
SKU: 2497266

Victron Energy charger with a blue design, three outputs and Bluetooth functionality, pictured alongside a smartphone.

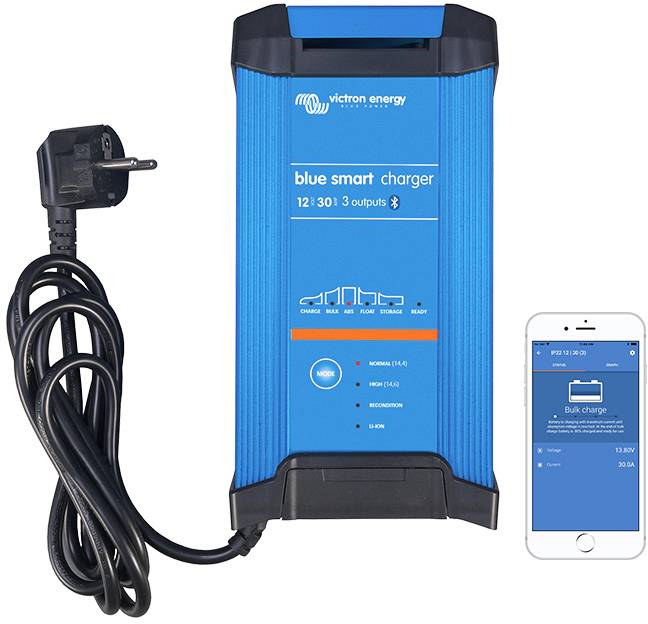

'Blue Smart Charger' by Victron Energy, a 12V, 30A battery charger with three outputs, shown with mains plug and smartphone app.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Charger Blue Smart 12/30

6-stage charging characteristic curve
Bluetooth Smart connection to a smartphone or tablet
Battery management system
Desulfation function

Technical specifications

Efficiency 93%
Power consumption without load: 0.5 W
Protection class: IP22
Battery connection: Screw terminals 13 mm²/AWG6
Cable length: 1.5 m
Temperature range -20 to +50 ºC
Frequency 45 - 65 Hz

Product type: VRLA charger

Matching rechargeable battery: SLA
Lead-acid
Lead acid membrane
Li-ion
LiFePO

Suitable for lead-type rechargeables: 12 V

Charging slots: 3

Operating voltage: 198 - 264 V

Charging current (max.): 30 A

Charging current at 12 V: 30 A

Charge Voltage: 14.7 V

Length: 235 mm

Width: 108 mm

Height: 65 mm

Depth: 235 mm

Weight: 1300 g

Dim: (L x W x H) 235 x 108 x 65 mm

Factory colour: Sky blue

Connector: Pin contact

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2497266 Victron Energy VRLA charger Blue Smart 12/30 12 V Charging current (max.) 30 A

User & Safety Instructions

User & Safety Instructions 2497266 Victron Energy VRLA charger Blue Smart 12/30 12 V Charging current (max.) 30 A

Description

Bluetooth smart
The Blue Smart IP22 battery charger is the wireless solution for monitoring voltage and current, adjusting settings and updating the charger when new functions are available.

High performance level
With an efficiency of up to 94%, these chargers generate up to four times less heat than the industry standard. After the battery has also been fully charged, the power consumption drops to less than 0.5 watts, which is about five to ten times better than the industry standard.

Adaptive 6-stage charging algorithm: Test bulk - absorption - recondition - float - storage
The Blue Smart charger features microprocessor-controlled, “adaptive” battery management. "Adaptive" means that the charging process is automatically adapted to the type of battery use.

Storage mode: Less maintenance and aging when the battery is idle:
The storage mode is activated whenever no discharge has taken place within 24 hours. The charge retention voltage is then reduced to 2.2 V/cell (13.2 V for a 12V battery) to minimize gas development and thus prevent corrosion on the positive plates. Once a week, the voltage is increased to the level of the gassing voltage. This results in a kind of equalizing charge that prevents electrolyte stratification and sulphation - the two main causes of premature battery failure.

Also charges lithium-ion (LiFePO₄) batteries
LiFePO₄ batteries are charged with a simple constant current phase – constant voltage phase – charge retention voltage phase algorithm.

THE NIGHT and LOW settings
If the device is in NIGHT or LOW mode, the output current is reduced to a maximum of 50% of the nominal output and the charger works absolutely noiseless. NIGHT mode ends automatically after 8 hours. The LOW mode can be manually terminated.

Protection against overheating
The output current is reduced when the temperature rises to 50°C, but the Blue Smart charger does not fail.

Eleven LEDs for status display charging algorithm:
Test/Bulk (Constant Current Phase), Absorption (Constant Current Phase), Recondition (Regenerative), Float, Storage (Storage Mode), Ready

Mode button settings:
Normal (14.4V) / High (14.7V) / Recondition (Regenerees) / Li-Ion

This text is machine translated.
