Name: Victron Energy VRLA charger Phoenix Smart IP43 Charger 24/25 (1+1) 120-240V Charging current (max.) 25 A
Brand: Victron Energy
SKU: 3058960

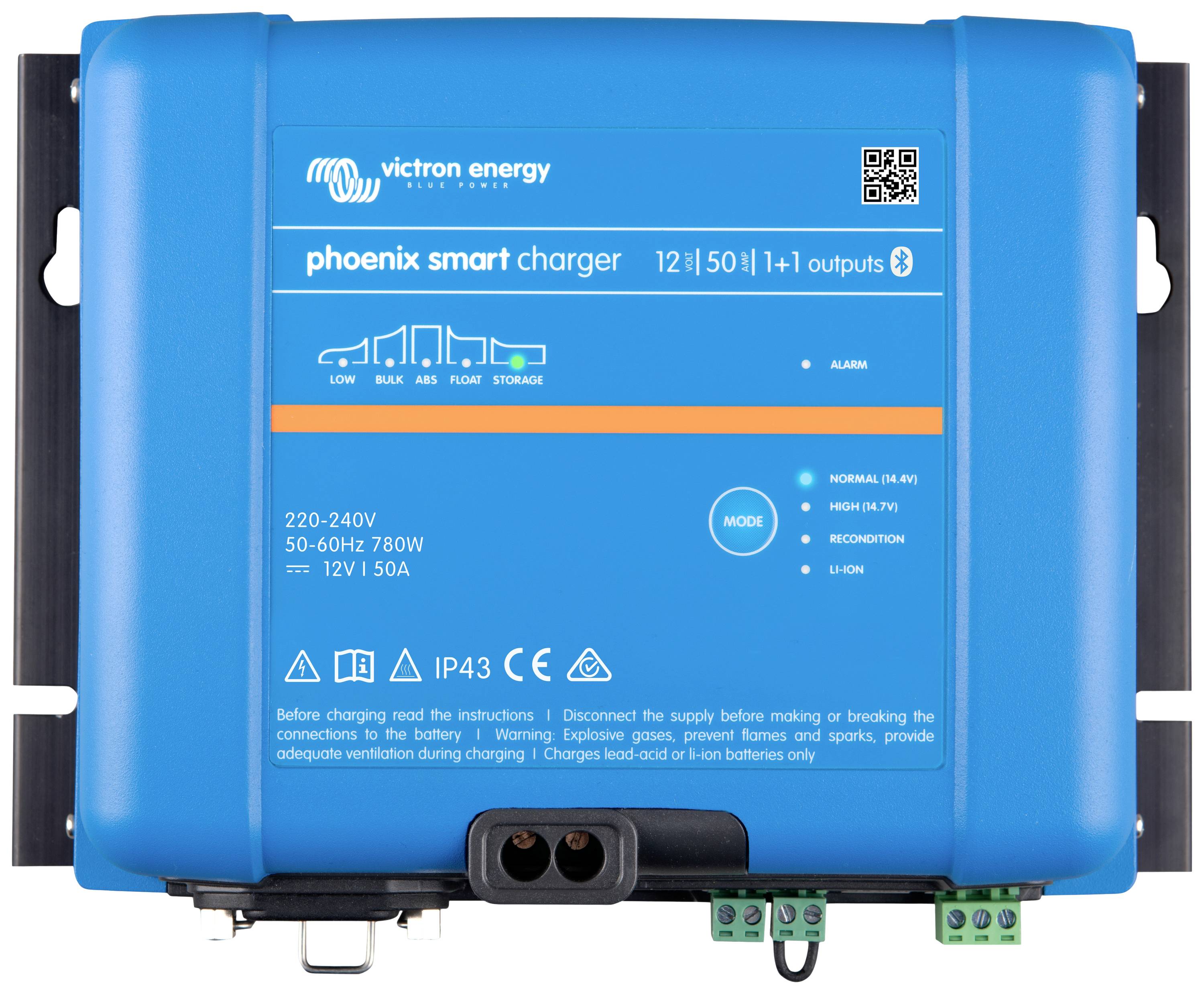

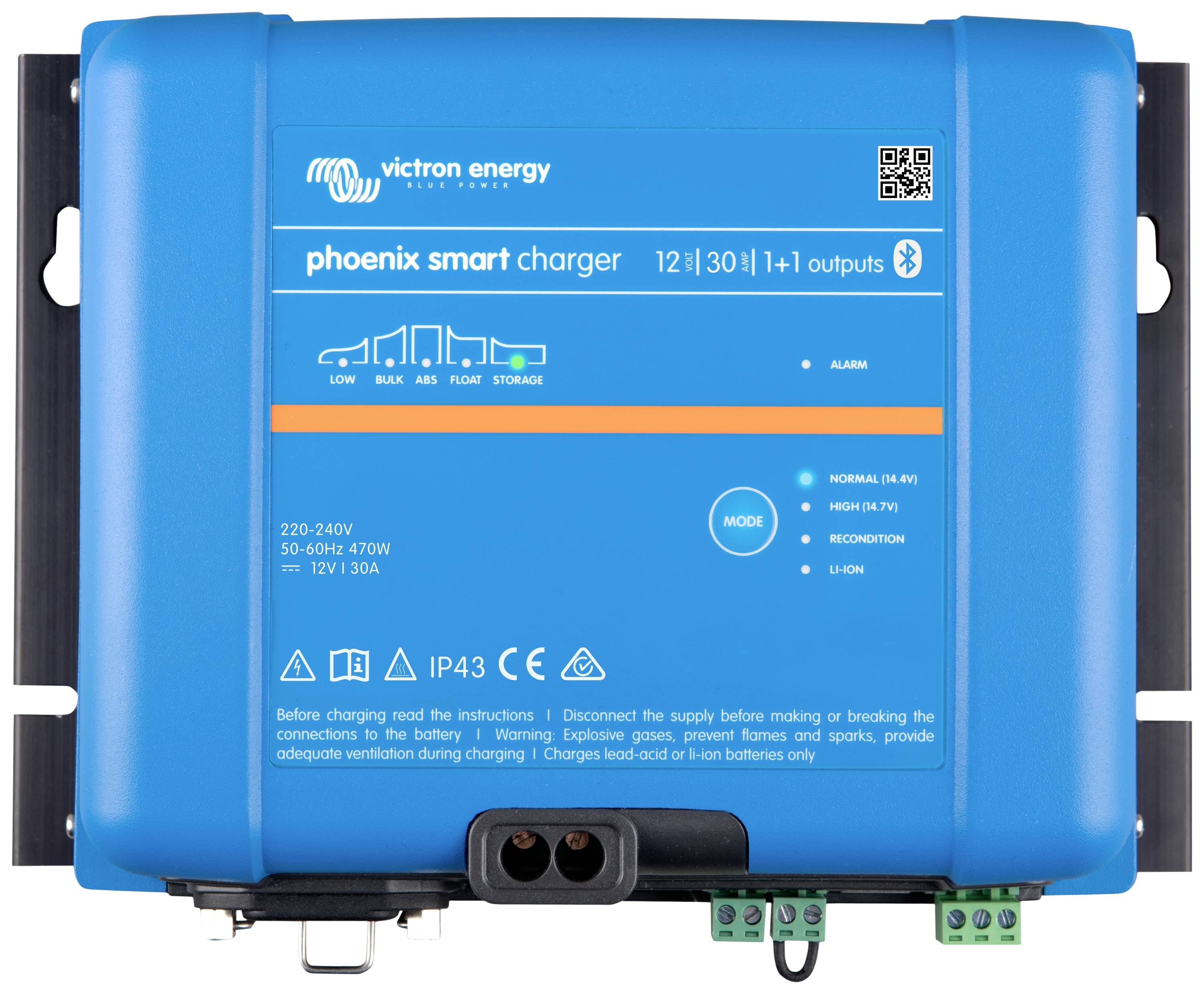

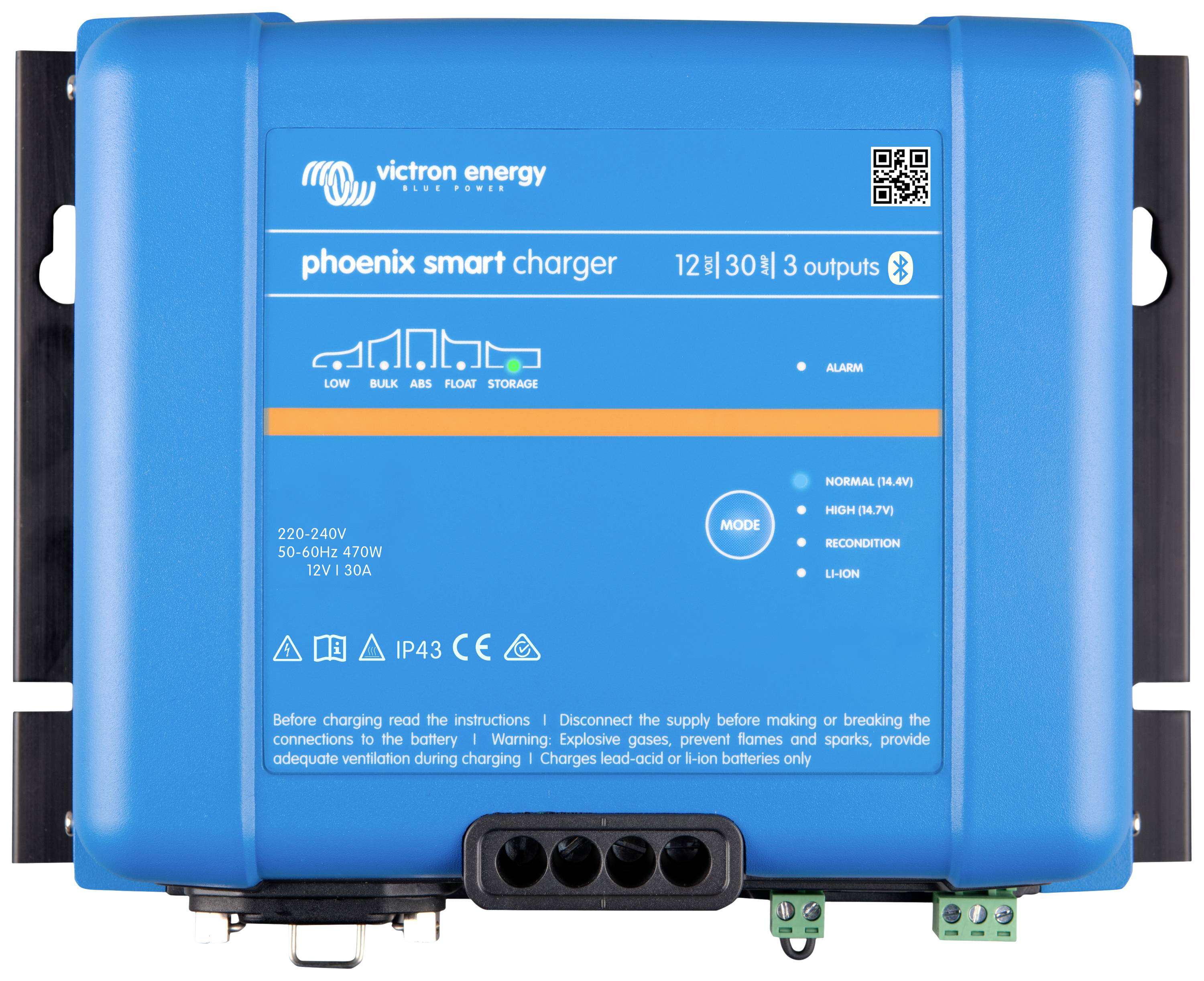

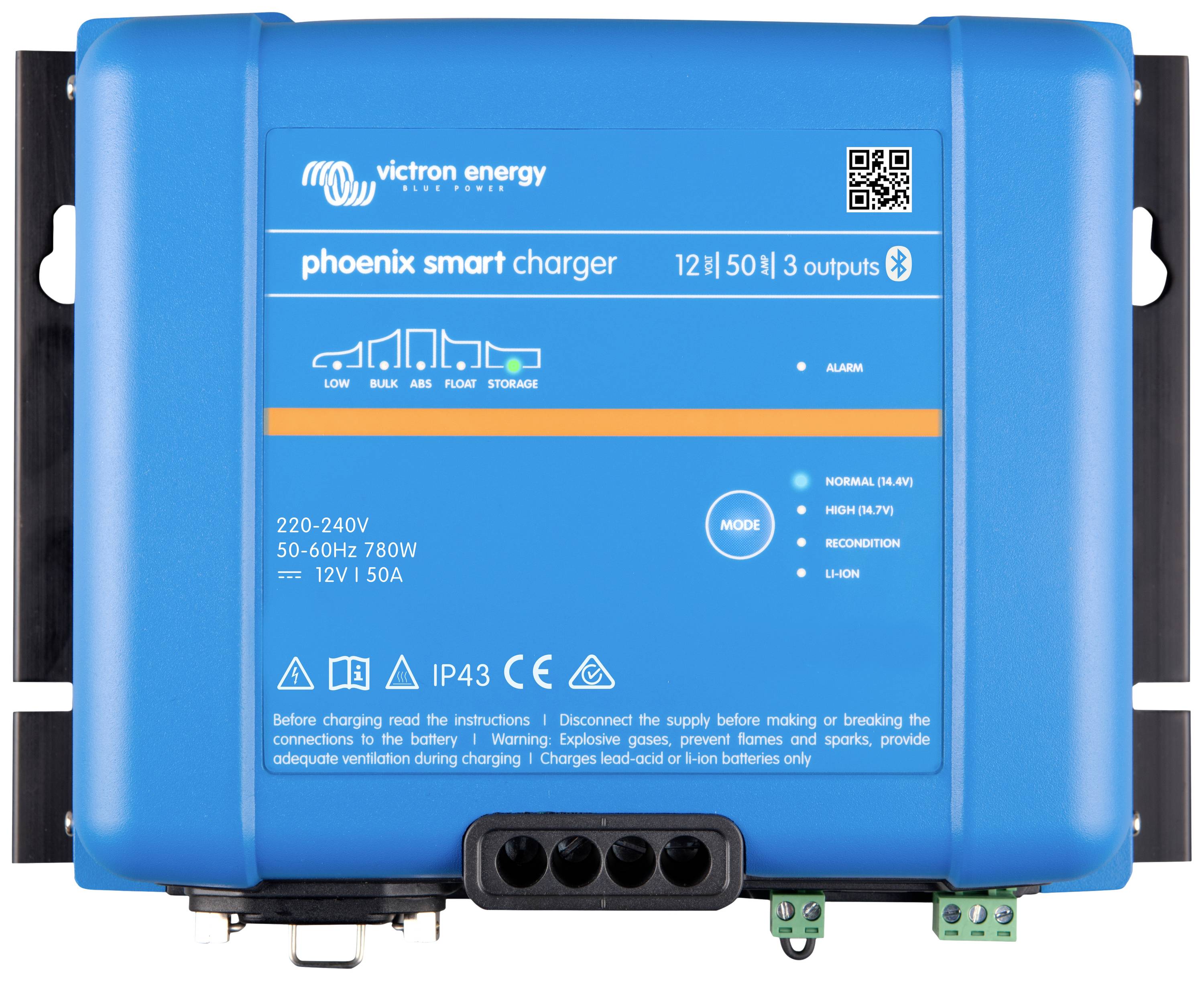

Blue charger with the inscription 'phoenix smart charger'. Shows input/output voltage, IP43 protection class and LED indicators.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Victron Phoenix Smart IP43 charger 24/25 (1+1) 120-240V

25A charging current
Output 24 VDC
Input 90 – 375 VDC or 85 - 250 VAC

Technical specifications

Product type: VRLA charger

Matching rechargeable battery: Li-ion

Operating voltage: 100 - 250 V

Charging current (max.): 25 A

Charging current at 12 V: 25 A

Charge Voltage: 28.8 V

Length: 249 mm

Width: 180 mm

Height: 116 mm

Weight: 2.7 kg

Dim: (L x W x H) 249 x 180 x 116 mm

Factory colour: Blue

Material: Aluminium

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3058960 Victron Energy VRLA charger Phoenix Smart IP43 Charger 24/25 (1+1) 120-240V Charging current (max.) 25 A

User & Safety Instructions

User & Safety Instructions 3058960 Victron Energy VRLA charger Phoenix Smart IP43 Charger 24/25 (1+1) 120-240V Charging current (max.) 25 A

Description

Looking at boat owners, this 5-stage adaptive charger can provide either 30A or 50A charging for each of the three battery banks. Or the Phoenix 1+1 model supplies 3A to the starter battery, the rest to the bank. 24V models are available with 16A/25A charge. Bluetooth-enabled, you can monitor the charger and set alarms directly from your mobile phone.

This text is machine translated.

Features

45-65 Hz
IP43
DC connection screw terminal 16mm² (AWG6)
AC connection IEC 320 C14 connector with holder
Built-in Bluetooth Smart
Phoenix Smart (1+1): Two outputs for charging 2 battery banks
Phoenix Smart (3): Three full power outputs for charging 3 battery banks
Automatic voltage compensation
Adaptive six-stage charging algorithm: Bulk (constant current phase) – Absorption (constant voltage phase) – Recondition
(Recovery Phase) – Float (Load Recovery Phase) – Storage – Refresh
The correct charge quantity: Variable constant-voltage phase
Prevent damage from excessive gasification: BatterySafe mode
Less maintenance and aging when the battery is idle: The memory mode
Also charges lithium-ion (LiFePOstalter) batteries
Fully programmable charging algorithm
Optional external battery voltage and temperature measurement via Bluetooth
Remote-controlled on/off switching
VE direct interface
Programmable relay
Synchronized charging

Scope of delivery

Battery charger
