Victron Energy VRLA charger Skylla-i 24/100 (3) 24 V Charging current (max.) 100 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

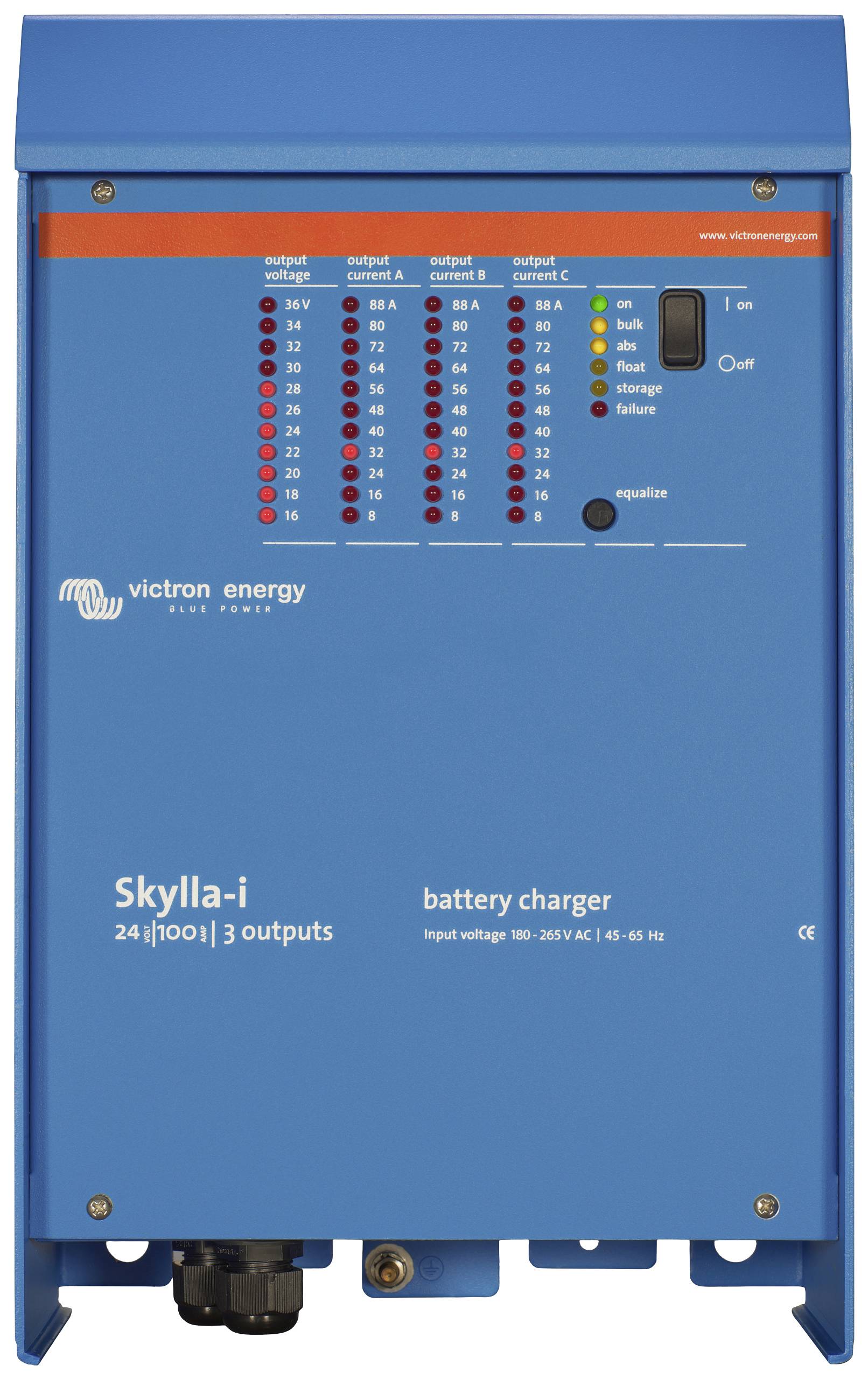

Victron Skyla-i 24/100 battery chargers (3)
- 3x100A charging current
- Output 24VDC
- Input voltage 185-265 VAC
Technical specifications
- Product type
VRLA charger
- Matching rechargeable battery
SLA
Lead-acid
Lead acid membrane
- Suitable for lead-type rechargeables
24 V
- Recommended battery capacity (min.)
500 Ah
- Recommended battery capacity (max.)
1000 Ah
- Operating voltage
230 V / AC
- Charging current (max.)
100 A
- Charging current at 24 V
100 A
- Length
250 mm
- Width
150 mm
- Height
405 mm
- Weight
7 kg
- Dim
(L x W x H) 250 x 150 x 405 mm
- Factory colour
Blue
- Connector
Pin contact
- Material
Aluminium
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3058963 Victron Energy VRLA charger Skylla-i 24/100 (3) 24 V Charging current (max.) 100 A
User & Safety Instructions
User & Safety Instructions 3058963 Victron Energy VRLA charger Skylla-i 24/100 (3) 24 V Charging current (max.) 100 A
Description
The Skyla-i Series offers:
The correct charge amount for a lead-acid battery; d.h a constant voltage adjusted time.
A BatterySafe mode, i.e. to prevent damage from excessive gas development.
One storage mode; d.h less maintenance and aging when the battery is at rest.
One NMEA 2000 CAN bus connector
PowerControl; d.h Setting of a maximum land current
A remote control and is suitable for lithium-ion batteries (LiFePo4).
This text is machine translated.
The correct charge amount for a lead-acid battery; d.h a constant voltage adjusted time.
A BatterySafe mode, i.e. to prevent damage from excessive gas development.
One storage mode; d.h less maintenance and aging when the battery is at rest.
One NMEA 2000 CAN bus connector
PowerControl; d.h Setting of a maximum land current
A remote control and is suitable for lithium-ion batteries (LiFePo4).
This text is machine translated.
Features
- 45-65 Hz
- Temperature Sensor
- IP21
- Skylla-i (3): Three full power outputs for charging 3 battery banks
- Protection from extreme conditions
- Flexible combination with add ons
- Synchronised parallel operation
- Battery saver mode, bearing mode, temperature compensation
- Battery voltage sensor
- Suitable for AC and DC current supply (AC-DC and DC-DC operation)
- Use as a power source
- Suitable for lithium-ion batteries (LiFePo4)
Scope of delivery
- Battery charger
