Name: Victron Energy VRLA charger Skylla-TG 24/50 GMDSS 24 V Charging current (max.) 50 A
Brand: Victron Energy
SKU: 3058970

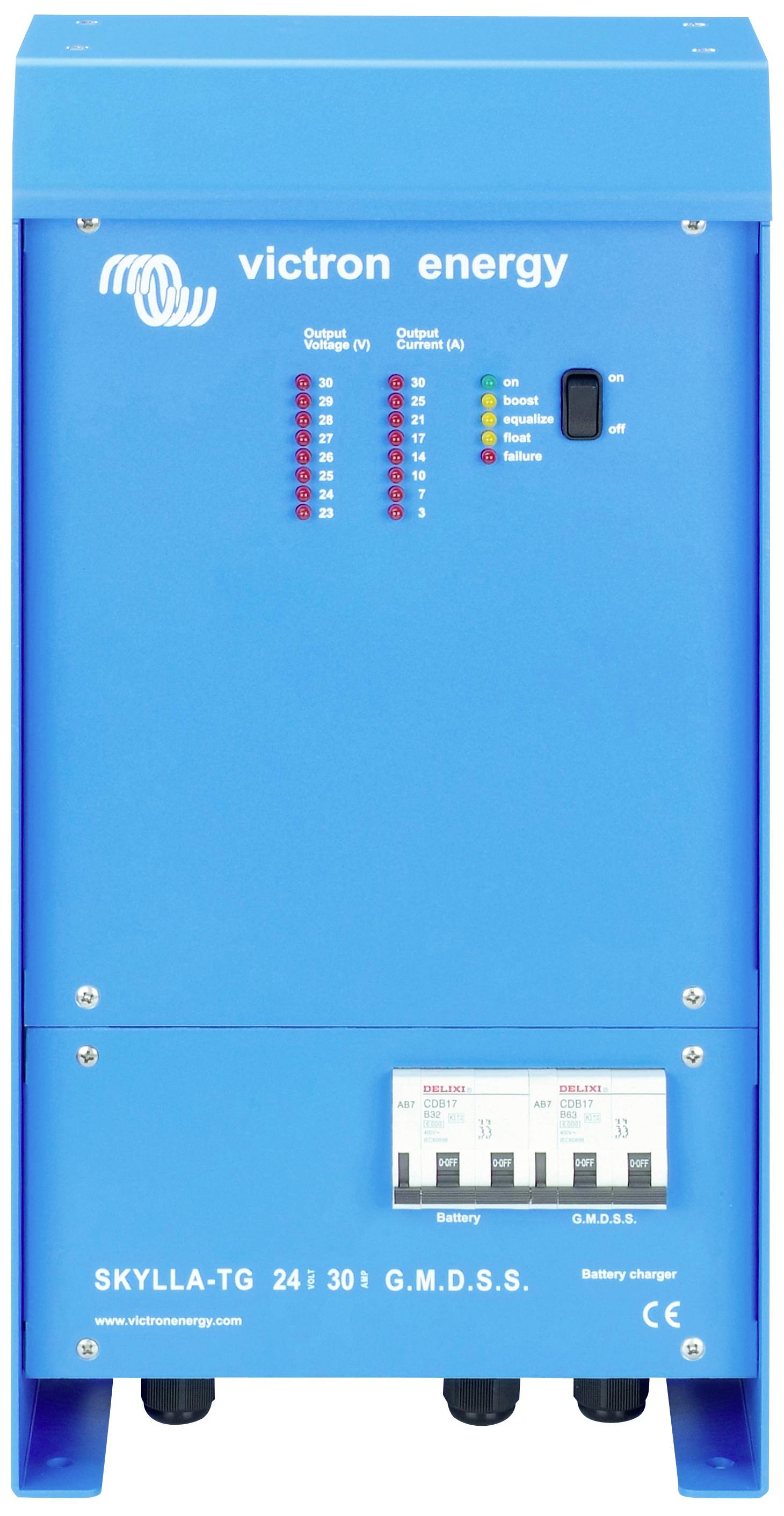

A blue battery charger from Victron Energy with multiple LED indicators and a toggle switch. Model: Skylla-TG 24i 30i GMDSS.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Victron Skyla-TG 24/50 GMDSS battery charger

50A charging current
Output 24 VDC
Input 120-230 VAC / 45-65 Hz

Technical specifications

Product type: VRLA charger

Matching rechargeable battery: SLA
Lead-acid
Lead acid membrane

Suitable for lead-type rechargeables: 24 V

Recommended battery capacity (min.): 250 Ah

Recommended battery capacity (max.): 500 Ah

Operating voltage: 230 V / AC

Charging current (max.): 50 A

Charging current at 24 V: 50 A

Length: 250 mm

Width: 147 mm

Height: 485 mm

Weight: 7.4

Dim: (L x W x H) 250 x 147 x 485 mm

Factory colour: Blue

Material: Aluminium

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3058970 Victron Energy VRLA charger Skylla-TG 24/50 GMDSS 24 V Charging current (max.) 50 A

User & Safety Instructions

User & Safety Instructions 3058970 Victron Energy VRLA charger Skylla-TG 24/50 GMDSS 24 V Charging current (max.) 50 A

Description

The Skylla-TG 24/30 and 24/50 GMDSS chargers from Victron have been developed to provide all necessary monitoring and alarm data. Both the battery and GMDSS systems are directly connected to the charger. Data and alarm messages are displayed on a digital panel (VE.Net GMDSS panel, not supplied). The charger is connected to the panel via a standard eight-wire UTP cable.

This text is machine translated.
