Vishay TLWY7600 LED wired Yellow Rectangular 7.6 x 7.6 mm 30 ° 70 mA 2.1 V
EAN:
Part number:
Item no:
Product type
LED wired
Forward voltage U(F)
2.1 V
Forward current I(F)
70 mA
Casing
7.6 x 7.6 mm
Type
Radial lead
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
5
-
€ 0.61
15
8% = € 0.05
€ 0.56
25
10% = € 0.06
€ 0.55
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 5
Total (€ 0.61 / piece)
€ 1.17
-48 %
€ 3.05
plus VAT.
14-day return policy included
Highlights & Details
Vishay TLWY7600 LED wired Yellow Rectangular 7.6 x 7.6 mm 30 ° 70 mA 2.1 V
- High light intensity
Our service for you
Technical specifications
- Product type
LED wired
- Type
TLWY 7600
- Factory colour
Yellow
- Forward voltage U(F)
2.1 V
- Forward current I(F)
70 mA
- Operating voltage
2.1 V
- Operating current
70 mA

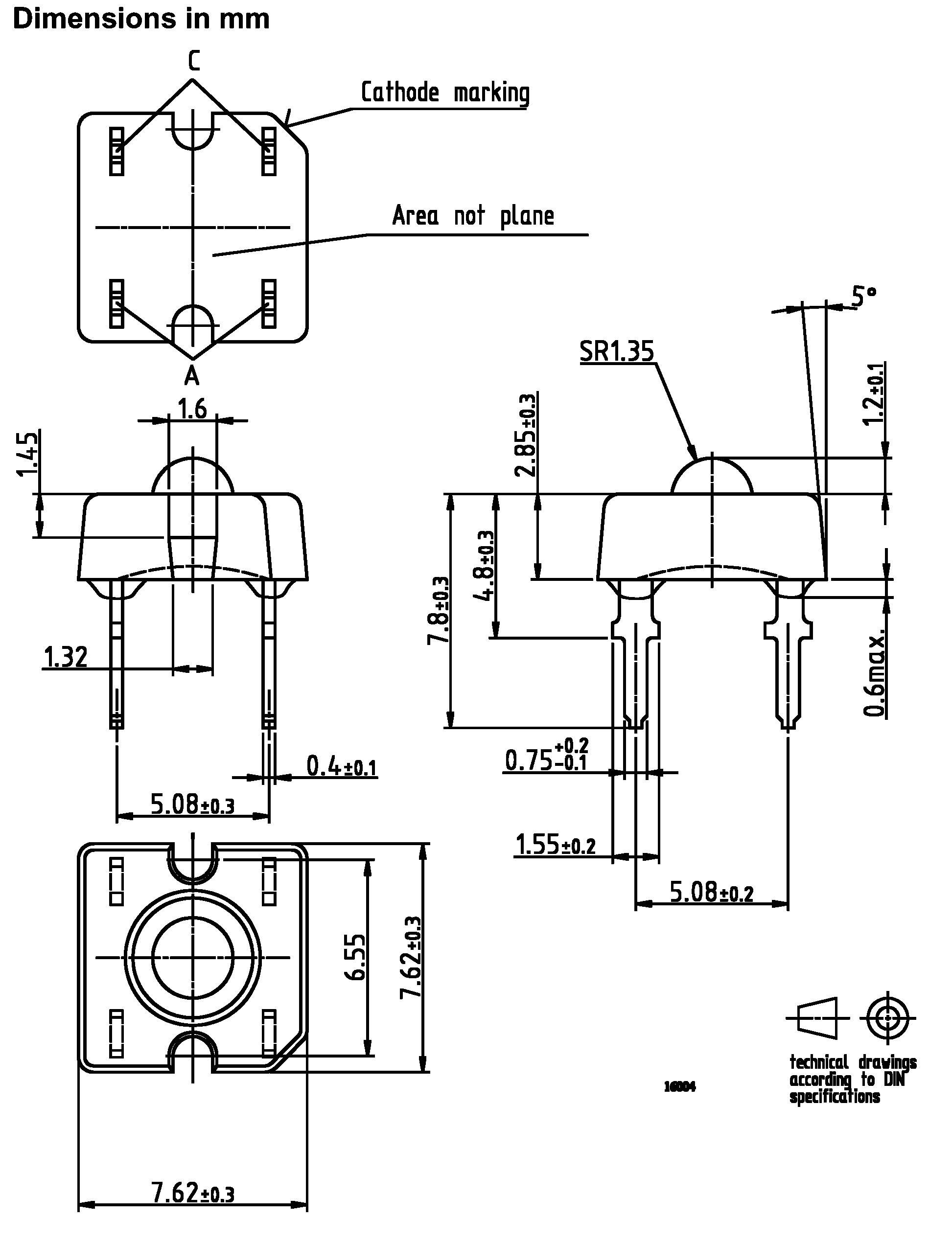

- Casing
7.6 x 7.6 mm
- Type
Radial lead
- Luminous flux (Φ)
1.4 lm
- Wavelength
592 nm
- Radiation angle
30°
- Type (LEDs)
Non-tinted
Water clear
- LED features
LED water clear
- Technology
AlInGaP
GaAs
- Lens type
Rectangular
- Dim
(L x W) 7.6 mm x 7.6 mm
- Min. temperature
-40 °C
- Max. temperature
110 °C
- Length
7.6 mm
- Width
7.6 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- Operating temperature
-40 - +110 °C
Documents & Downloads
Datasheet
Datasheet 184444 Vishay TLWY7600 LED wired Yellow Rectangular 7.6 x 7.6 mm 30 ° 70 mA 2.1 V
User & Safety Instructions
User & Safety Instructions 184444 Vishay TLWY7600 LED wired Yellow Rectangular 7.6 x 7.6 mm 30 ° 70 mA 2.1 V
Description
This is a clear non-diffuse LED for special applications that require a strong light flow. The LED's excellent heat dissipation allows it to be used at high ambient temperatures.
Hints
All packs are selected according to luminous intensity and colour to ensure a matching appearance.
