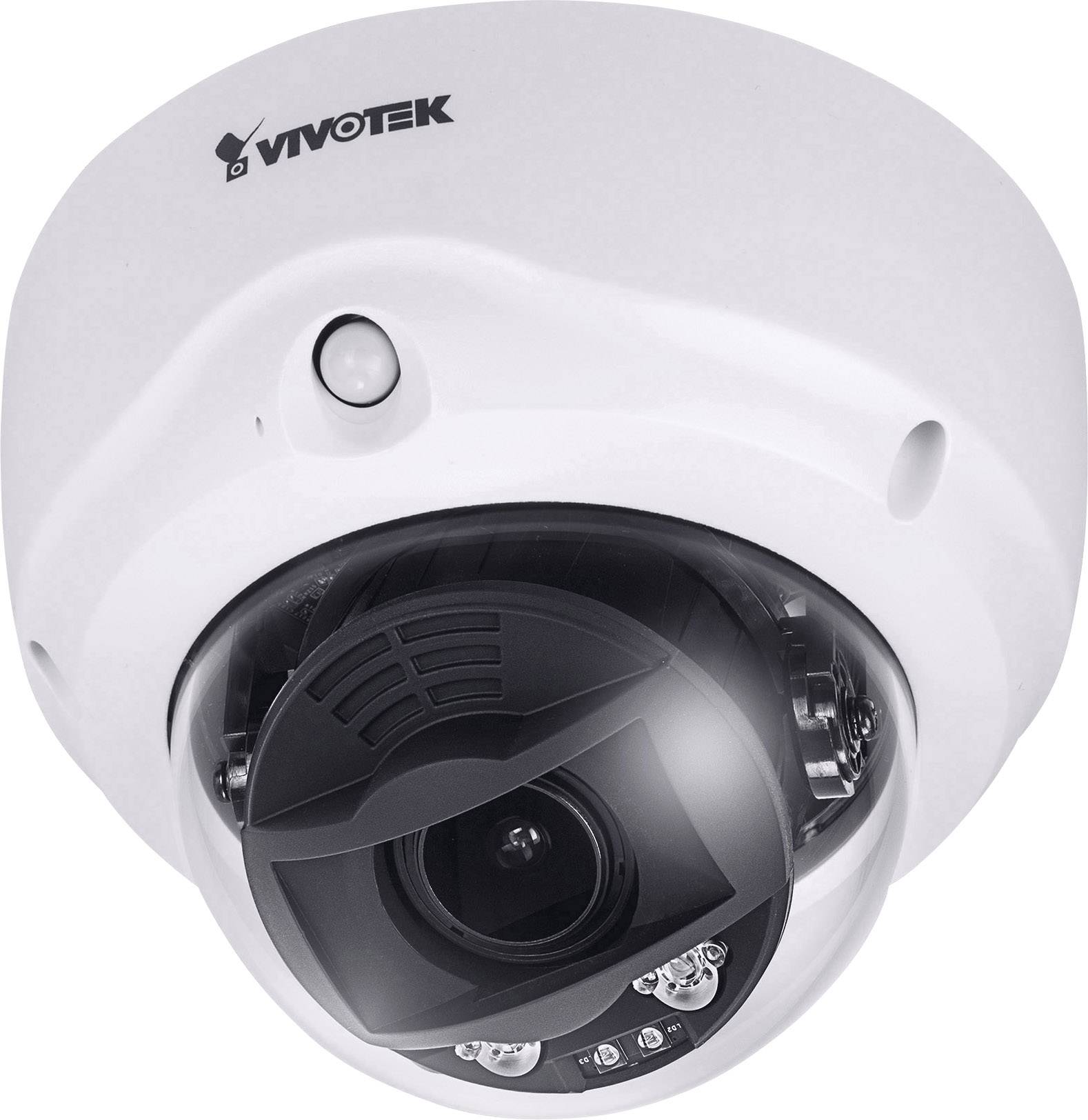

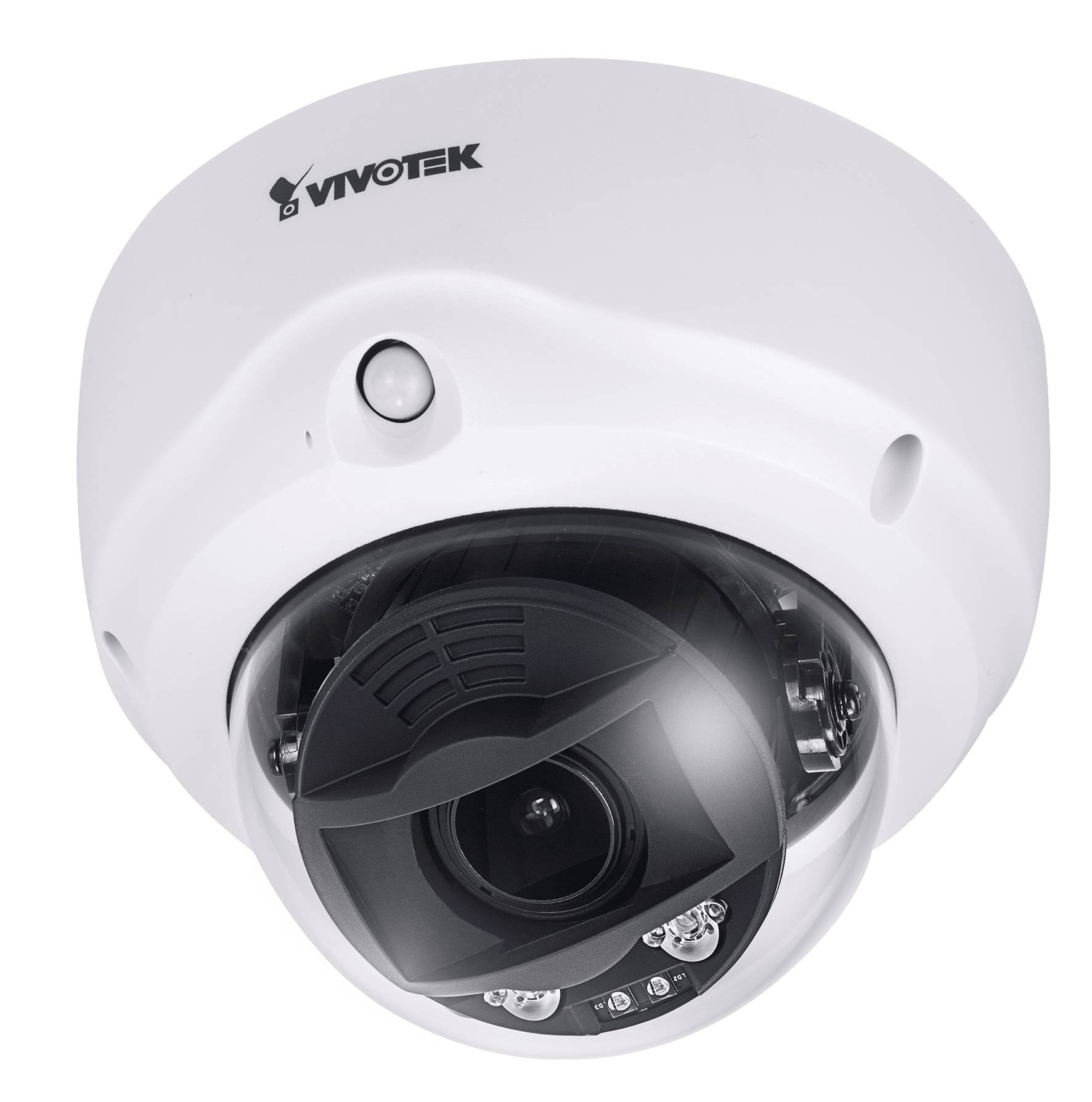

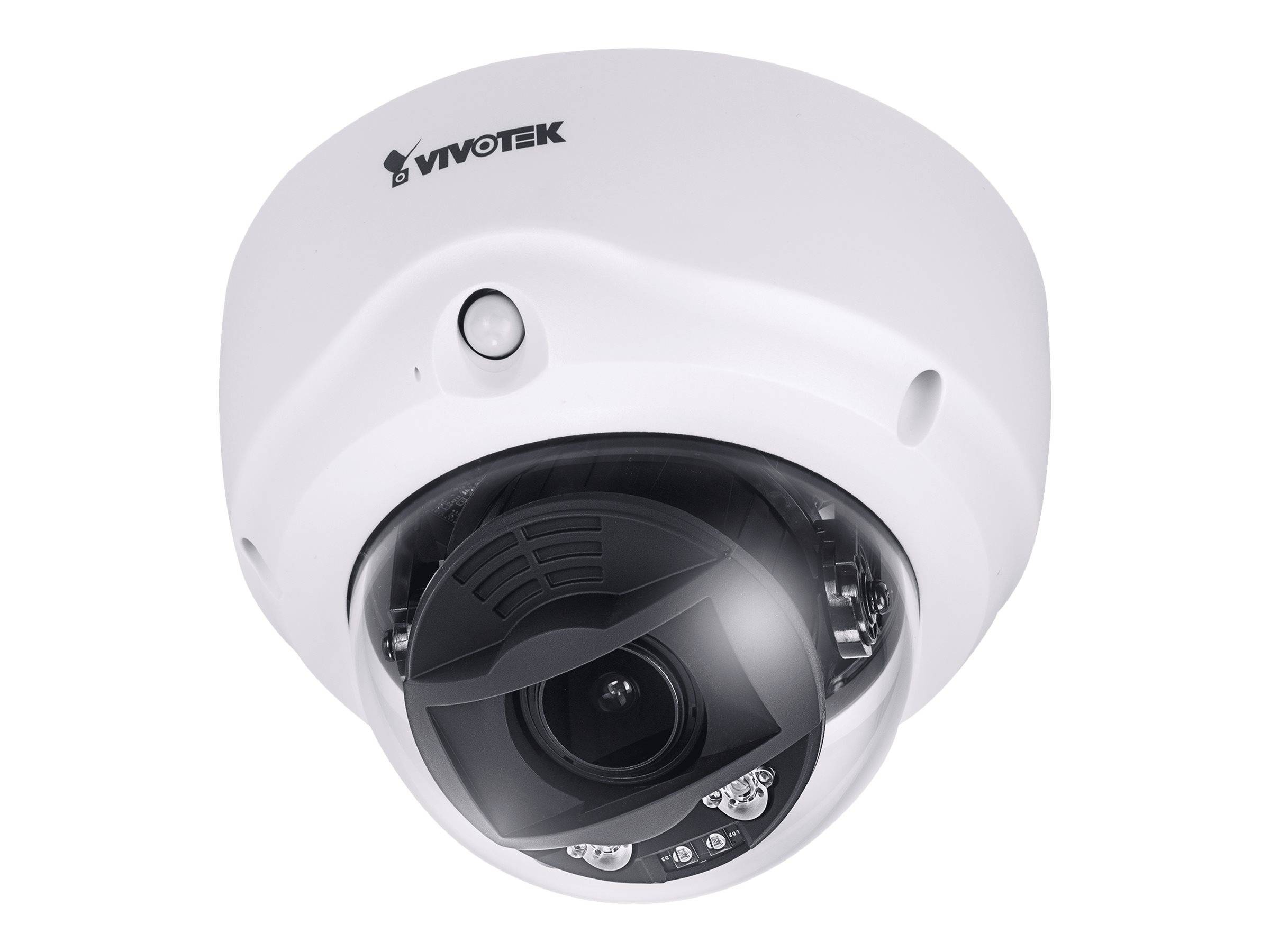

Vivotek FD9165-HT LAN IP CCTV camera 1920 x 1080 p
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
LAN IP-Dome camera;1920 x 1080 p;Vivotek;FD9165-HTIndoors
- 2-Megapixel-CMOS-Sensor
- 1920 x 1080 pixels at 60 frames per second
- Varifokal-Objektiv with P-Iris
Technical specifications
- Video compression: H.265, H.264 and MJEPG
- Max. Frame rate: 60 fps@1920 x 1080
- Pan/Tilt/Rotation: 353°/65°/180°
- Zoom: ePTZ: 48 x digital zoom (4x on IE plug-in, 12 x built in)
- Operating voltage: 24V, DC 12 V, IEEE 802.3af PoE Class 0
- Product type
CCTV camera
- CCTV features
IR LEDs
Microphone
2-way communication
Saves footage on SD card
ONVIF support
PoE IEEE 802.3af
- Camera type
Dome camera
- Resolution (max.)
1920 x 1080 p
- Sensor size
12.7 mm (1/2")
- Sensor type
CMOS
- Focal length
4 - 9 mm
- Viewing angle
152° (diagonal)
- Max. viewing angle hor.
120°
- Vertical viewing angle
60°
- Transfer type
LAN
- Light sensitivity (+ IR)
0 lx
- Light sensitivity (- IR)
0.04 lx
- IR range (max.)
50 m
- Used at
Indoors
- Type
microSD card
- Height
104 mm
- (Ø)
139 mm
- Dim
(Ø x H) 139 mm x 104 mm
- Weight
490 g
- F-numbers
F1.3 ~ 2.2
- Factory colour
White
- Signal standard
IP
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1667884 Vivotek FD9165-HT LAN IP CCTV camera 1920 x 1080 p
User & Safety Instructions
User & Safety Instructions 1667884 Vivotek FD9165-HT LAN IP CCTV camera 1920 x 1080 p
Description
The FD 9165-HT of vivotek is the new flagship under the dome cameras for indoor use. By a full-HD-sensor is a resolution of 1920 x 1080 at 60 FPS is possible. The camera is equipped with the most up-to-date SNV II and WDR vpro technology and delivers unprecedented picture quality both in flash as well as very dark light conditions.
This text is machine translated.
This text is machine translated.
Features
- Automatic IR-blocking filter for Day & Night Function
- Built-in IR-spotlight
- 3D noise reduction SNV II
- Smart IR technology, in order to avoid overexposure
- Smart Stream for optimized bandwidth usage
- Two-way audio
- WDR Pro II for unparalleling visibility in extremely bright or dark environments
- Built-in microSD/SDHC/SDXC card slot.
Scope of delivery
- Camera
- Drillhole template
- Fasteners
- Quick guide.
Hints
Memory card not included
