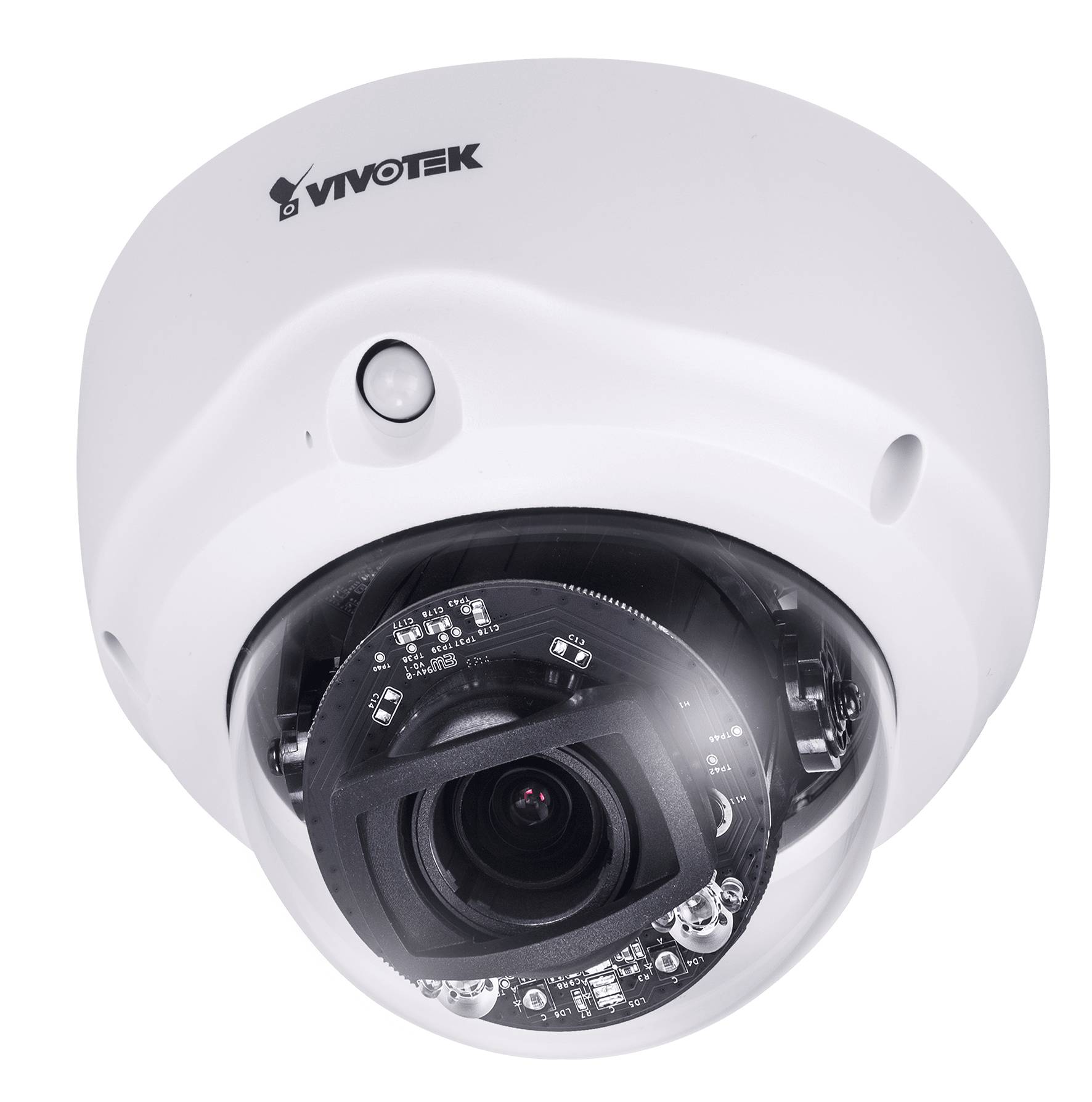

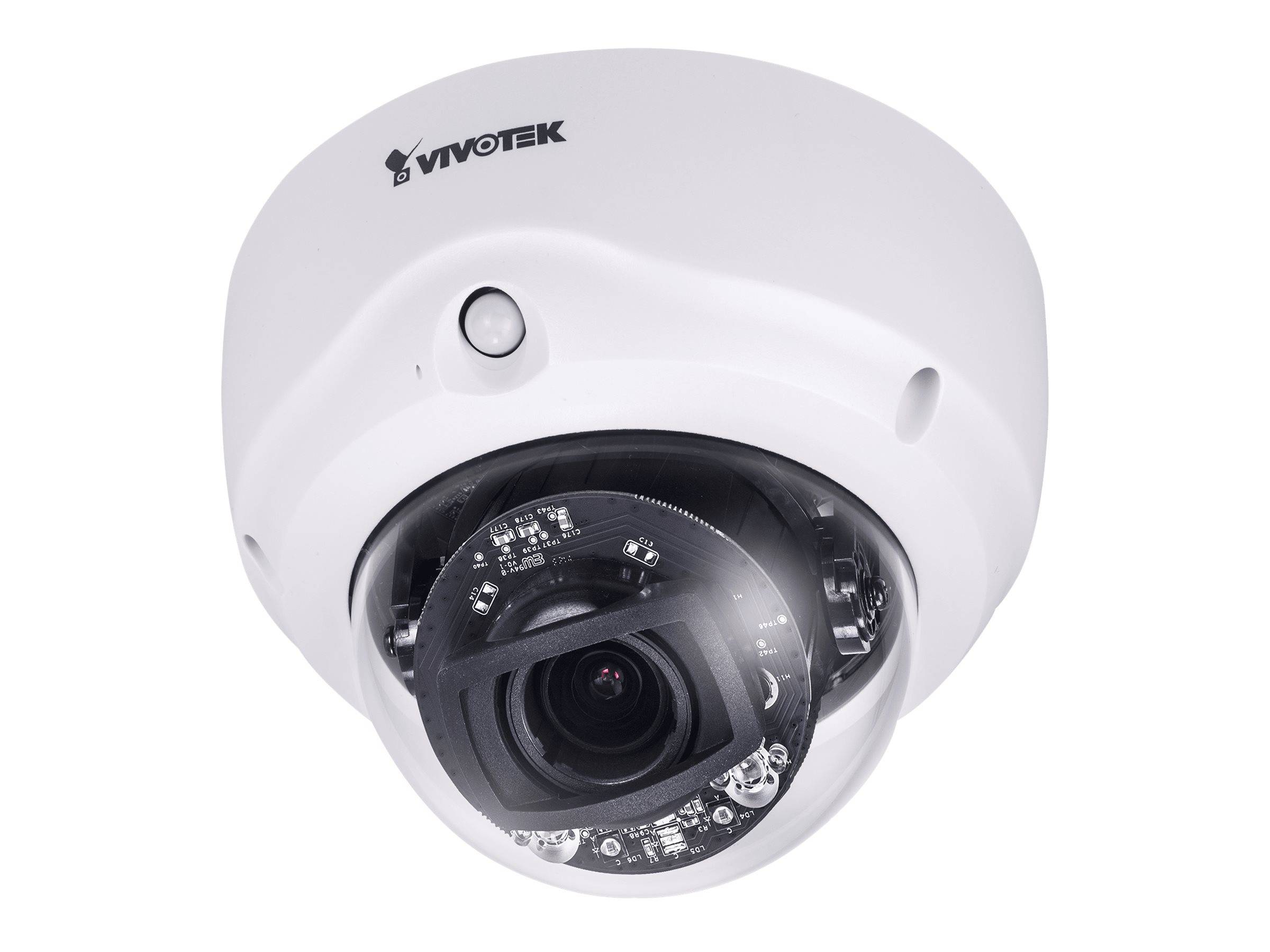

Vivotek FD9167-HT 21191937 LAN IP CCTV camera 1920 x 1080 p
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
LAN IP-Dome camera;1920 x 1080 p;VivotekFD9167-HT;21191937Indoors
- 2 MP resolution
- P-iris lens with Remote Focus
- 30 images per second/1920 x 1080
Technical specifications
- Diagonal view angle: 117°
- Real-time video compression: H.265, H.264 and MJEPG
- Frame rate: 30 fps@1920 x 1080
- Number of video streams: 3
- Lens type: P-iris with Remote Focus
- Zoom: ePTZ: 48 x digital zoom (4x on IE plug-in, 12 x built in)
- Operating temperature: -10 °C to + +50 °C.
- Product type
CCTV camera
- CCTV features
Saves footage on SD card
2-way communication
IR LEDs
Microphone
PoE IEEE 802.3af
ONVIF support
Optical zoom
- Camera type
Dome camera
- Resolution (max.)
1920 x 1080 p
- Sensor size
9.07 mm (1/2.8")
- Sensor type
CMOS
- Focal length
2,8 - 12 mm
- Max. viewing angle hor.
97°
- Vertical viewing angle
53°
- App compatibility
Yes
- Transfer type
LAN
- Light sensitivity (+ IR)
0 lx
- Light sensitivity (- IR)
0.07 lx
- IR range (max.)
30 m
- Used at
Indoors
- Type
SDXC card
- Height
104 mm
- (Ø)
139 mm
- Dim
(Ø x H) 139 mm x 104 mm
- F-numbers
F1.4 - 2.8
- Signal standard
IP
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1720167 Vivotek FD9167-HT 21191937 LAN IP CCTV camera 1920 x 1080 p
User & Safety Instructions
User & Safety Instructions 1720167 Vivotek FD9167-HT 21191937 LAN IP CCTV camera 1920 x 1080 p
Description
VIVOTEKs FD 9167-HT is a professional highly efficient indoor dome camera with an excellent picture quality.
With the use of the H.265 technology, the camera is in a position to achieve efficient image compression rates. In addition, the vivotek smartstream III technology, the quality in desired areas to optimize and thus to maximize the efficiency of bandwidth usage.
As a professional day/night camera is the FD 9167-HT with WDR Pro, SNV, 3 DNR and so-called Smart IR optimization and allows the user to enjoy the smallest image detail in all lighting conditions. In addition, the use of customer-specific programs for individual scenarios and applications from the VIVOTEK VADP-platform.
This text is machine translated.
With the use of the H.265 technology, the camera is in a position to achieve efficient image compression rates. In addition, the vivotek smartstream III technology, the quality in desired areas to optimize and thus to maximize the efficiency of bandwidth usage.
As a professional day/night camera is the FD 9167-HT with WDR Pro, SNV, 3 DNR and so-called Smart IR optimization and allows the user to enjoy the smallest image detail in all lighting conditions. In addition, the use of customer-specific programs for individual scenarios and applications from the VIVOTEK VADP-platform.
This text is machine translated.
Features
- Automatic IR-blocking filter for Day & Night Function
- Built-in IR-spotlight, range up to 30 meters
- 3D noise reduction
- IR lighting up to 30 m
- Smart IR technology, in order to avoid overexposure
- Smart Stream III for optimized bandwidth usage
- Two-way audio
- WDR Pro technology for clear images in difficult lighting situations
- PIR Sensor
- MicroSD/SDHC/SDXC card slot (memory card not included in the delivery).
Scope of delivery
- Camera
- Drillhole template
- Fixings
- Quick guide.
