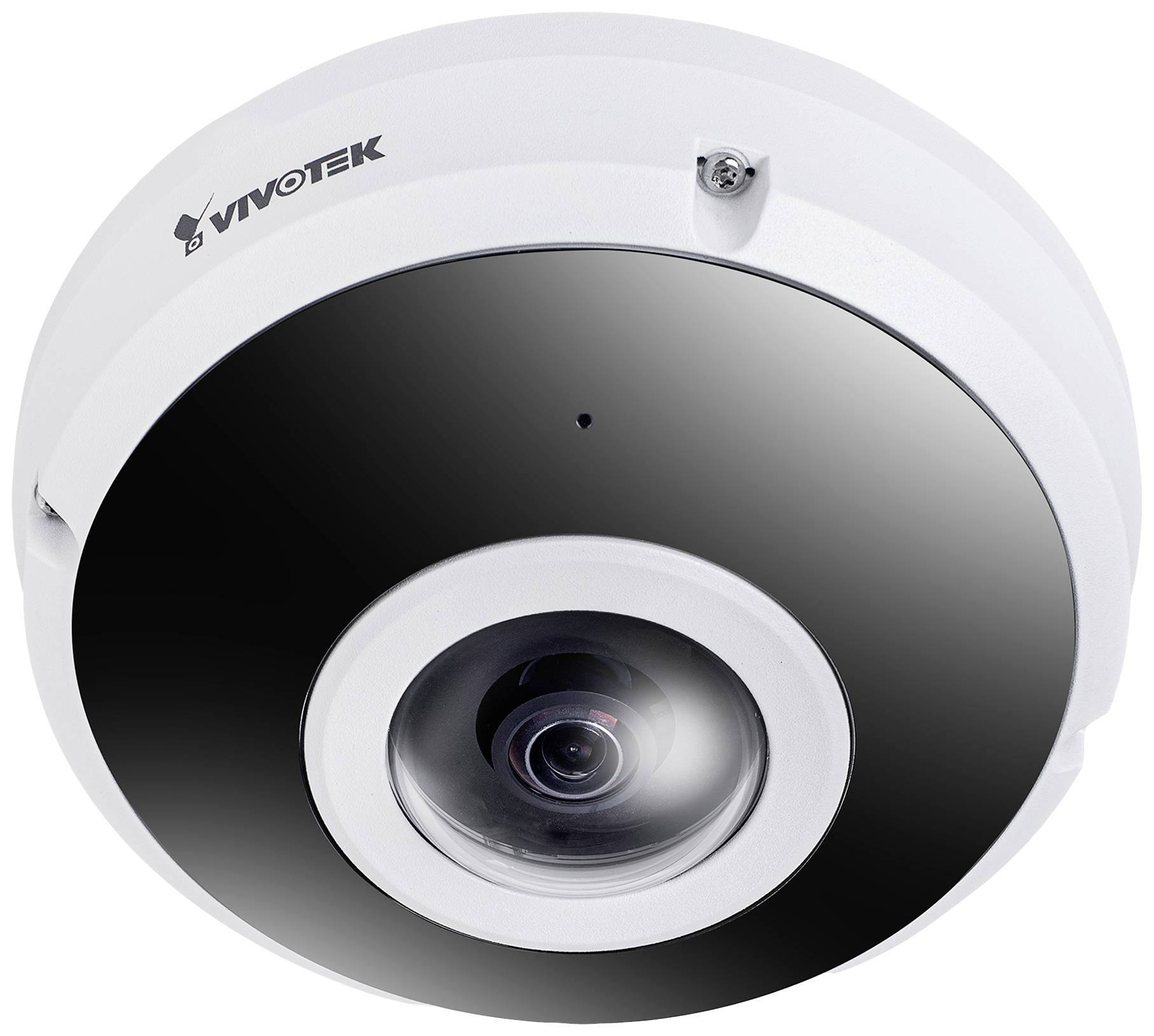

Vivotek FE9391-EHV-v2,N/A LAN IP CCTV camera 2944 x 2944 p
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
LAN IP-Dome camera;2944 x 2944 p;Vivotek;FE9391-EHV-v2,N/AOutdoors
- 12-megapixel CMOS sensor
- 30 FPS @ 2944x2944
- WDR Pro (120dB) for improved visibility in high-contrast scenes
Technical specifications
- Pan/tilt/zoom functions ePTZ: 12 x digital zoom (12 x for IE plug-in)
- Product type
CCTV camera
- CCTV features
Fish eye lens
IR LEDs
Microphone
PoE IEEE 802.3af
Saves footage on SD card
Tamperproof
ONVIF support
- Camera type
Dome camera
- Resolution (max.)
2944 x 2944 p
- Sensor size
11.04 mm (1/2.3")
- Sensor type
CMOS
- Focal length
1,22 mm
- Max. viewing angle hor.
180°
- Vertical viewing angle
180°
- Vertical viewing angle
180°
- Transfer type
LAN
- IR range (max.)
20 m
- Used at
Outdoors
- Height
68.2 mm
- (Ø)
150 mm
- Dim
(Ø x H) 150 mm x 68.2 mm
- Weight
695 g
- F-numbers
F1.8
- Factory colour
White
IP66
IK10
- Signal standard
IP
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2866118 Vivotek FE9391-EHV-v2,N/A LAN IP CCTV camera 2944 x 2944 p
User & Safety Instructions
User & Safety Instructions 2866118 Vivotek FE9391-EHV-v2,N/A LAN IP CCTV camera 2944 x 2944 p
Description
Vivotek FE9391-EHV-v2 Fisheye network camera, 12-megapixel CMOS sensor, 30 FPS @ 2944x2944, with WDR Pro (120dB) for improved visibility, intelligent motion detection, Smart VCA, trend micro IoT security, local dewarp
This text is machine translated.
This text is machine translated.
Features
- Intelligent motion detection to reduce false alarms
- Smart VCA (intrusion detection, crowd detection, Loitering detection)
- Trend Micro IoT Security
- Local Dewarp.
Scope of delivery
- Vivotek FE9391-EHV-v2 Fisheye network camera
- Quick installation guide
Hints
Memory card not included
