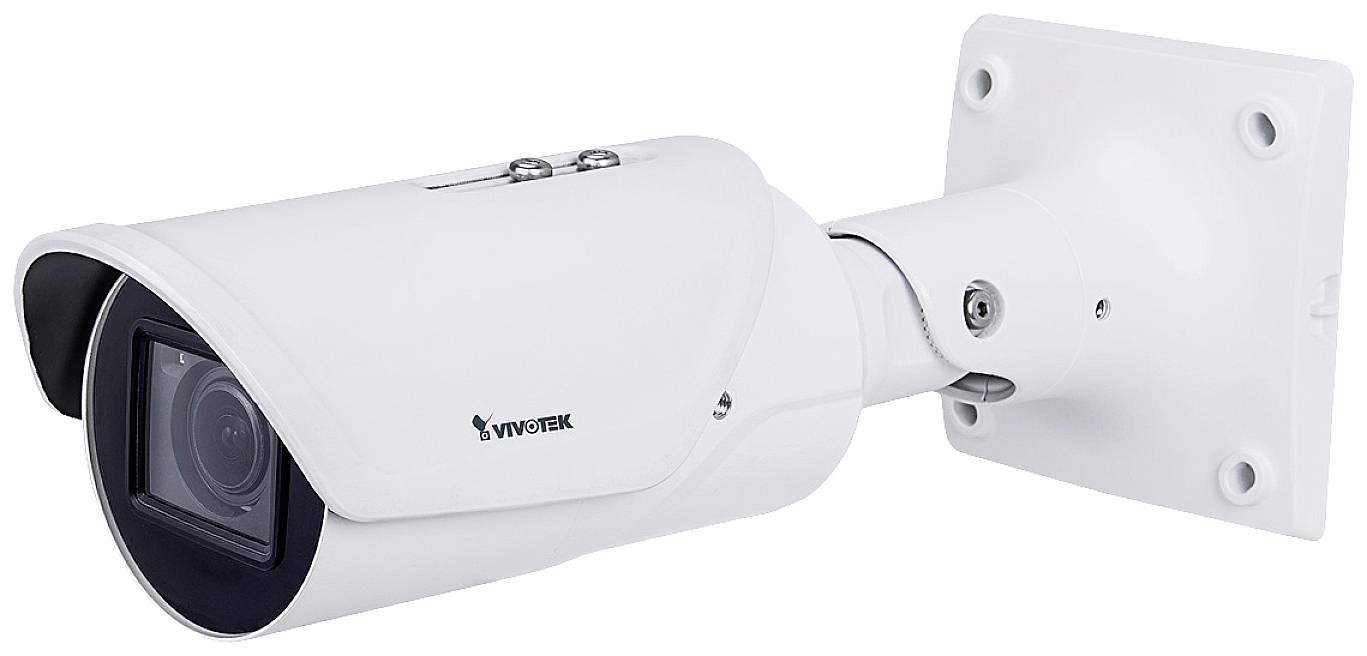

Vivotek IB9387-HT-A IB9387-HT-A LAN IP CCTV camera 2688 x 1520 p

Image similar
EAN:
Part number:
Item no:
Unavailable

Sales and shipping:
Conrad ElectronicTerms & Conditions

Technical specifications

  • Number of video streams: 3Audio output: YesAudio input: YesOperating temperature: -10 °C to + +60 °C.Frame rate at max resolution Images/second: 30Aperture control: P-IrisDigital output: YesDigital input: YesCOMPRESSION METHOD: H.264, H.264, MJPEGResolution: 5 MPXpower over Ethernet PoE: YesDay/Night Mode: YesWDR technology: WDR Pro
Product type

CCTV camera

CCTV features

Saves footage on SD card

Motion detector

IR LEDs

Optical zoom

Motorized lens

Camera type

Bullet camera

Power supply

PoE (Power over Ethernet)

Resolution (max.)

2688 x 1520 p

Sensor size

9.4 mm (1/2.7")

Sensor type

CMOS

Focal length

2,7 - 13,5 mm

Max. viewing angle hor.

100°

Vertical viewing angle

72°

App compatibility

Yes (software)

Transfer type

LAN

Light sensitivity (+ IR)

0 lx

Light sensitivity (- IR)

0.1 lx

IR range (max.)

50 m

Used at

Outdoors

Type

microSD card

Width

11.8 cm

Height

11.8 cm

Depth

29.4 cm

Dim

(W x H x D) 11.8 x 11.8 x 29.4 cm

Weight

1.86

Factory colour

Multicolour

Signal standard

IP

UKCA

yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2559023 Vivotek IB9387-HT-A IB9387-HT-A LAN IP CCTV camera 2688 x 1520 p

Description

VIVOTEKs IB9387 is a bullet IP outdoor camera that provides up to 30 fps at a resolution of 2560x1920 pixels and is capable of capturing high-quality images, regardless of whether they are high-contrast or low-light environments. 30 frames/s at 1920x2560 pixels H. 265 compression method SmartStream III technology for bandwidth optimization SNV (Supreme Night Visibility) for poor lighting conditions WDR Pro for optimum view at extreme brightness or dark environments built-in IR emitter, Effective up to 50m distance Intelligent IR-technology for avoiding overexposure Intelligent motion detection for reducing false alarms Trend Micro IoT-security Protection class IP66, IP67 and IK10 MicroSD/SDHC/SDXC card slot VIVOTEK VAST Software the VIVOTEK VAST is a professional video/central management software (VMS or CMS), Designed to manage all VIVOTEK IP monitoring products with intuitive operation and numerous functions. It integrates the latest H. 265 video compression and supports hundreds of cameras and substations in a hierarchical structure for viewing, recording and event management. In addition, VAST also offers the video wall solution (VAST Matrix) for live monitoring of hundreds of cameras. In addition to the image information of the VIVOTEK network cameras, VAST also integrates a wide range of functions of the camera, such as seamless recording (seamless recording), which continues to record to the camera in the event of a network interruption, 360° fisheye support (equalization) and the VCA metadata integration (line overshoot, surrounding or field detection). VAST is a full-fledged server/client software, which can be used in almost all application areas. * For up to 32 VIVOTEK cameras for free download on the VIVOTEK website! VIVOTEK CYBER-SECURITY Features: “Brutal Force Attack Detection” - after a predefined number of failed login attempts, the attacker’s IP address is automatically blocked. Intrusion Detection and Prevention detects abnormal activity and automatically locks access to the camera. This actively prevents unauthorized attempts to access the Web management interface or the retrieval of questionable Web pages. Instant Damage Control - An unknown attack is automatically analyzed and resolved by a remote anti-intrusion team. The risk of spreading the virus to other Internet devices is effectively reduced and users can resume work quickly and safely. VIVOTEK Smart Motion Detection / Intelligent Motion Detection: VIVOTEK Smart Motion Detection Technology reduces the number of false alarms that are often triggered by switching the camera between day and night operation, rapid changes in lighting conditions, small animals, insects and weather conditions (e.g. rain, snow, wind, etc.). The People-Detection function enables people to be identified by your silhouette and distinguished from other objects or animals with the help of an integrated database. The Time Filter allows the user to set a time that a person must be in the monitored area until the camera is triggered. The number of false alarms is significantly reduced with the help of the many Smart Motion Detection functions and saves security personnel a lot of time in the course of this.

This text is machine translated.
