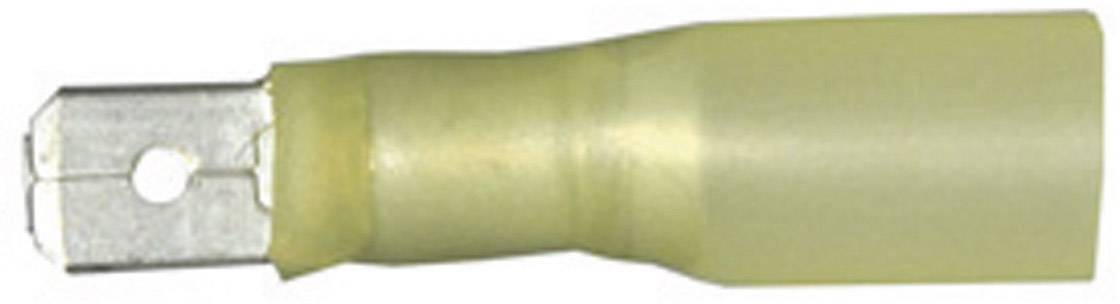

Vogt Verbindungstechnik 3912h Blade terminal + heatshrink Connector width: 6.3 mm Connector thickness: 0.8 mm 180 ° Part
EAN:
Part number:
Item no:
Product type
Blade terminal
Connector width
6.3 mm
Connector thickness
0.8 mm
Insulation type
Partially insulated
Connection angle
180 °
Datasheet (PDF)
Number
Minimum order quantity: 3
Total (€ 1.29 / piece)
€ 3.87
incl. VAT
14-day return policy included
Highlights & Details
Flat plug with partially insulated, heat-shrink sleeve
- 100% watertight
Our service for you
Technical specifications
- Shrink temperature: +150 °C
- Product type
Blade terminal
- Factory colour
Yellow
- Connector width
6.3 mm
- Connector thickness
0.8 mm
- Support sleeve
Yes
- Insulation type
Partially insulated
- Connection angle
180°
- Contact material
Brass tin plated
- Content
1 pc(s)
- Manufacturer part #
3912h
- Type
3912h
- max. cross section
6 mm²
- Min. cross section
4 mm²
- Insulation material
PE
- Cross-section range
4 - 6 mm²
- RoHS-compliant
Yes
- Size
6.3 x 0.8 mm
- Features
+ heatshrink
- Temperature range
-10 - +105 °C
- Insulation
HDPE
- Material (details)
Tin-plated brass
- Type
6.3 x 0.8 mm
- Shrink temperature
+150 °C
- Cross section
4 - 6 mm²
12 - 10
Documents & Downloads
Datasheet
Datasheet 735893 Vogt Verbindungstechnik 3912h Blade terminal + heatshrink Connector width: 6.3 mm Connector thickness: 0.8 mm 180 ° Part
User & Safety Instructions
User & Safety Instructions 735893 Vogt Verbindungstechnik 3912h Blade terminal + heatshrink Connector width: 6.3 mm Connector thickness: 0.8 mm 180 ° Part
Description
Internally coated with self-adhesive. The stripped wires are simply inserted, crimped with a commercially available crimping tool and heated with a hot air blower until the adhesive runs out sideways. Resistant to petrol, oil, salt water, battery acid and cleaning agents.
