Name: VOLTCRAFT 1070D USB Oscilloscope 70 MHz 250 MSa/s 6 KP 8 Bit Digital storage (DSO) 1 pc(s)
Brand: VOLTCRAFT
SKU: 1409505
Availability: SoldOut

A portable oscilloscope by Voltcraft with three channels. The device is compact and is primarily used for electronic measurements.

A black device with 'VOLTCRAFT' printed on it, equipped with multiple ports and an antenna, for data transmission.

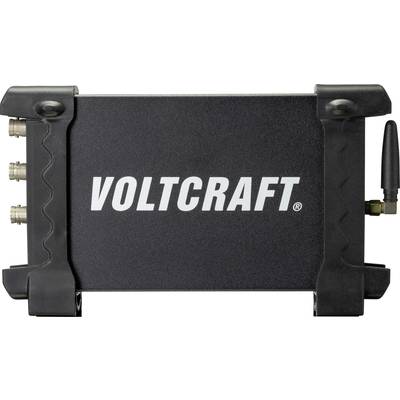

A black device with the inscription 'VOLTCRAFT'. It has four connection sockets on the left side and an aerial on the right side.

Back of a measuring device with three round connections, labelled as 'CH1', 'CH2' and 'EXT', with additional connections on the right.

The image shows the back of a router with a USB port, an antenna, and several status LEDs indicating the connection.

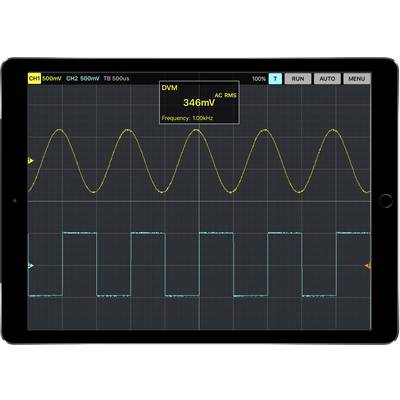

Oscilloscope screen shows two waveforms. The upper is a sine wave, the lower a square wave. Text: 'DVM 346mV AC RMS'.

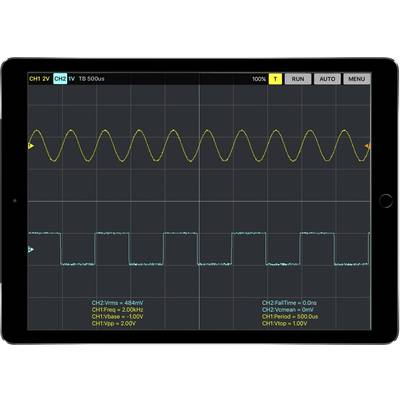

'Oscilloscope display shows two signals: upper with sinusoidal wave, lower as square wave. CH1 details bottom right.'

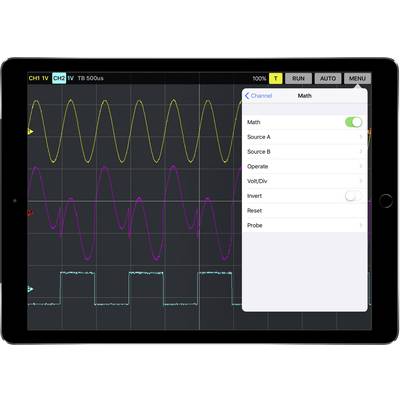

An oscilloscope screen displays two waveforms in yellow and purple with a menu for mathematical functions on the right.

1/8

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 219.99 / piece)

€ 330.00

-33 %

€ 219.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

1070D Smart Wifi Scope

Wireless transfer of measurements to smartphones or tablets
Free app for iOS and Android
70 MHz bandwidth
Sampling rate 250 MS/s

Our service for you

Technical specifications

Measurement input: Two separate chanals CH1 - CH2
Bandwidth: 70 MHz
Input impedance: 1 Mohm // 25 pF
Max. input voltage: CH1 - CH2: 35 V/DC or 35 Vp/AC
External trigger: 35 V/DC or 35 Vp/AC
Input coupling: DC-AC-GND
Test probe ratio: 1:1, 10:1, 100:1, 1000:1
Time base: 4 ns - 1h/div
Rise time: ≤7 ns
Sampling rate: 250 MS/s
Memory depth: 2000 / 3000 / 6000 test points
Trigger mode: Auto, Normal, Single
Software: Windows® XP/VISTA/7/8
Interface: USB2.0
Power supply: 5 V/1 A via USB port
Rechargeable battery: 3.7 V/2000 mAh
Dimensions (L x W x H): approx. 210 x 40 x 125 mm
Weight: approx. 470 g (without attachments)

Product type: USB Oscilloscope

Bandwidth: 70 MHz

Channel sample rate: 250 MSa/s

Resolution: 8 Bit

Oscilloscope features: Digital storage (DSO)

Time base: 4 ns - 1h/div

No. of analogue inputs: 2

: Manufacturer's standards (no certificate)

Reading category: CAT I

Vertical deflection: 10 mV - 5 V/div

Input impedance: 1 MΩ

Input coupling: DC AC GND

Input voltage: 35 V

Power supply (details): Battery pack, USB

Dim: (L x W x H) 200 x 120 x 35 mm

Weight: 300 g

Width: 120 mm

Height: 35 mm

Length: 200 mm

Interfaces: Wi-Fi

Channel memory depth: 6 KP

Type: 1070D

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1409505 VOLTCRAFT 1070D USB Oscilloscope 70 MHz 250 MSa/s 6 KP 8 Bit Digital storage (DSO) 1 pc(s)

Warranty Terms

Warranty Terms 1409505 VOLTCRAFT 1070D USB Oscilloscope 70 MHz 250 MSa/s 6 KP 8 Bit Digital storage (DSO) 1 pc(s)

Description

The digital oscilloscope is intended for displaying electrical parameters and signals. The oscilloscope features two BNC sockets for connecting the test lead. Measured signals can be displayed on a PC via USB cable or on an Android or Apple tablet via WLAN.
