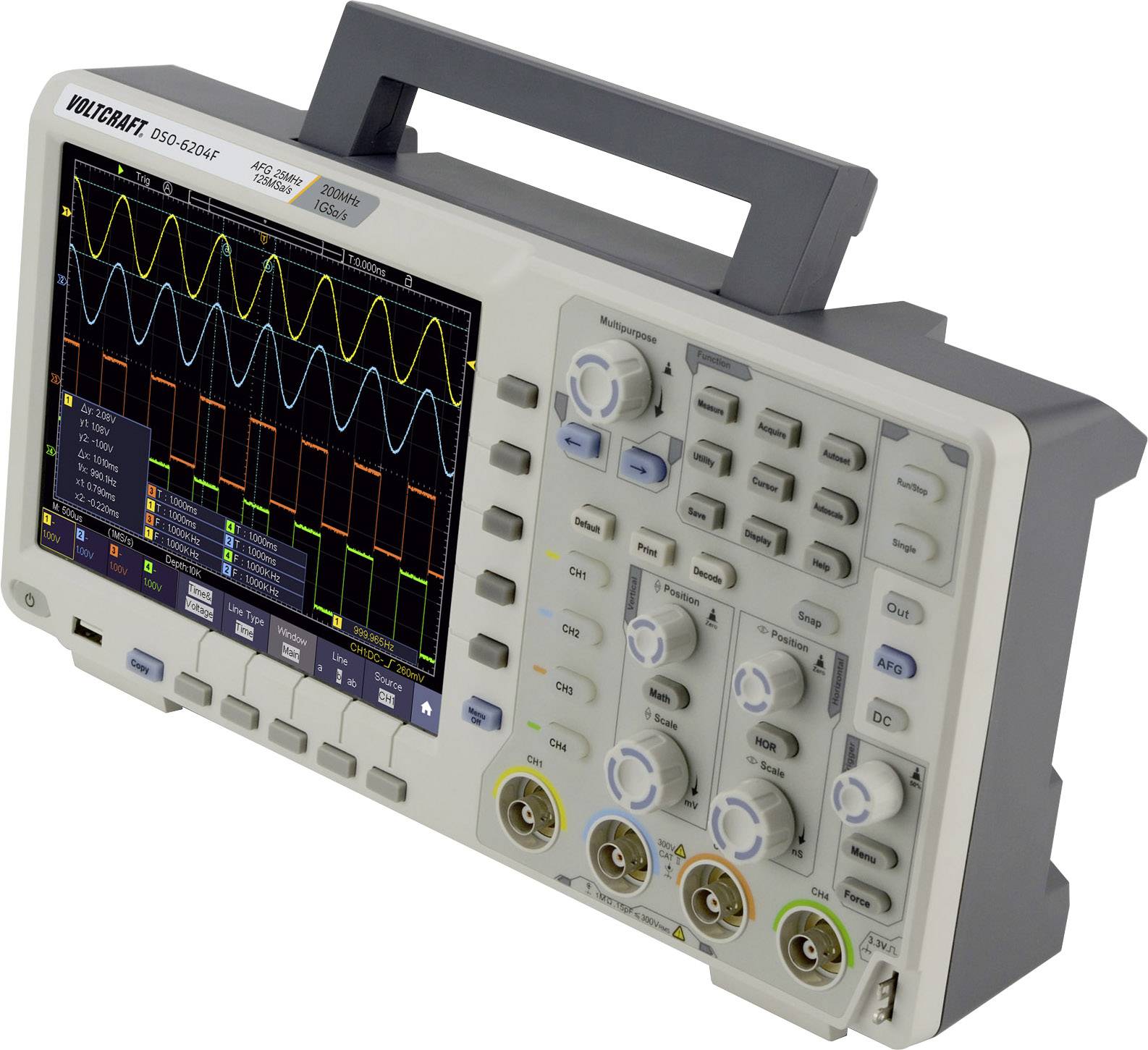

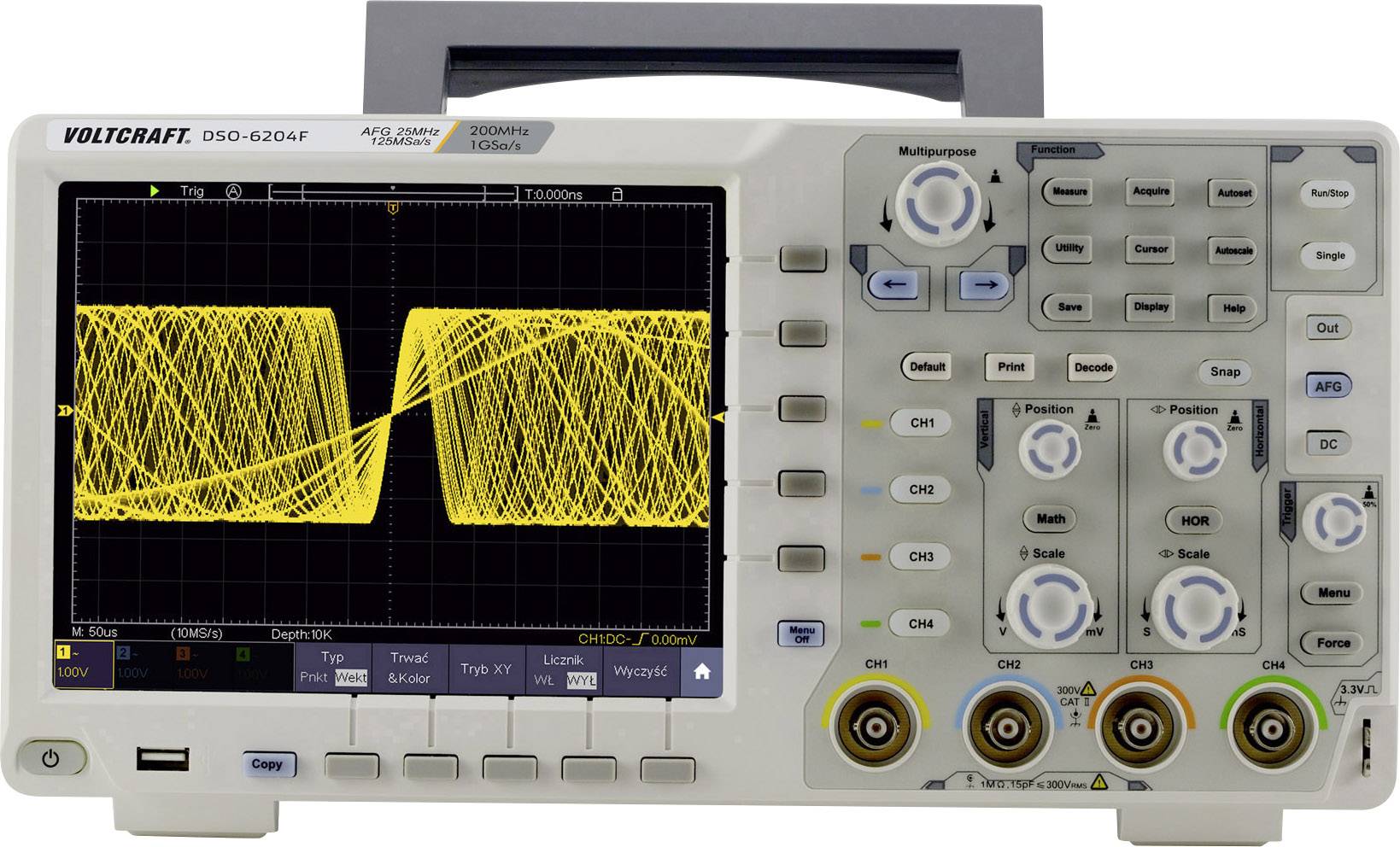

A multi-channel oscilloscope with several waveforms displayed on the screen, featuring various buttons and rotary controls for adjusting settings.

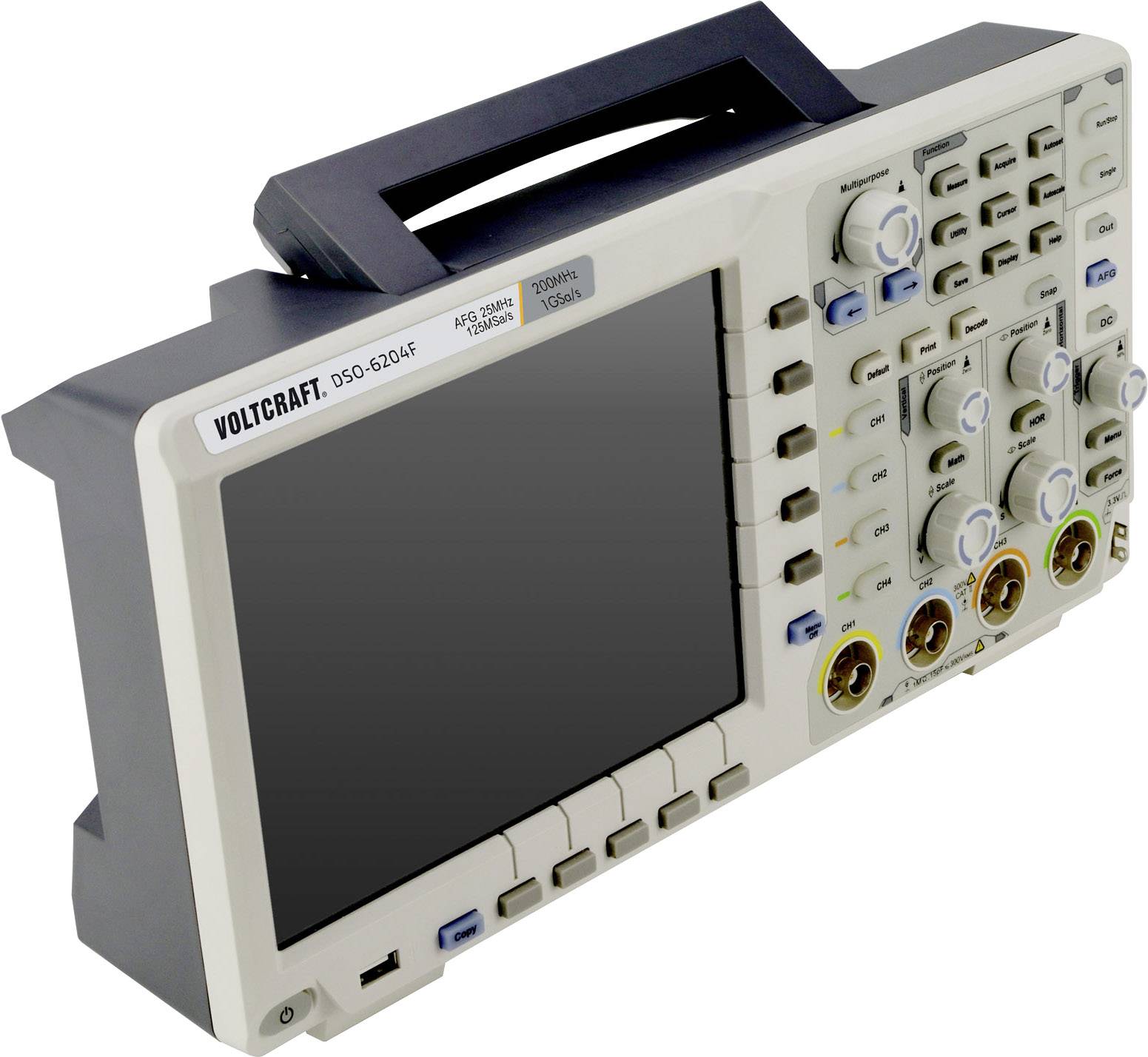

A portable digital storage oscilloscope with a large display, two channels, and multiple control buttons for voltage signal analysis.

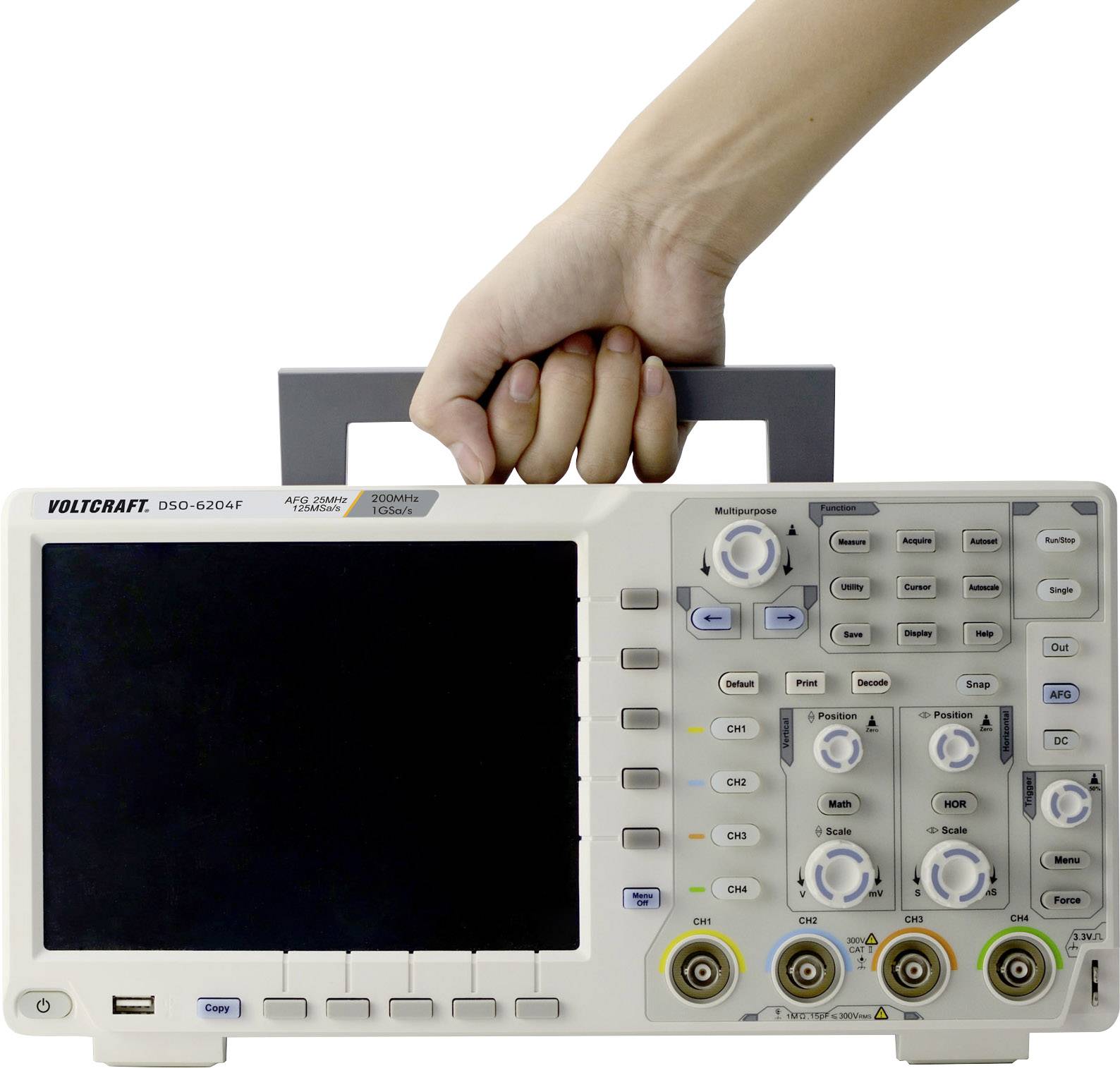

A hand is holding a portable digital oscilloscope with multiple control buttons and a large display for technical measurements.

An oscilloscope displays a sine wave on the screen. A hand touches the display to take measurements or adjust settings.

A hand is operating a portable oscilloscope, displaying a sinusoidal voltage curve.

'Oscilloscope screen showing a sinusoidal wave; hand pointing at the display, as if adjusting settings.'

'Oscilloscope screen shows a single voltage pulse with an amplitude of 2 V at 1 MHz'

'Oscilloscope display shows a periodic rectangular signal with 1 MHz frequency. Vertical axis: Voltage, Horizontal axis: Time.'

Oscilloscope screen shows a sinusoidal wave with constant amplitude and frequency. X-axis: Time, Y-axis: Voltage.

Oscilloscope image of a sinusoidal signal with yellow waveform. Horizontal axis shows time (0-20 ns), vertical axis voltage (0-100 mV).

Oscilloscope display of a square wave signal with menu for selecting averages. Frequency: 100 kHz, Average: 16, Amplitude: 2 V.

'Oscilloscope display shows a periodic digital signal with irregular spikes at the beginning, followed by regular rectangular pulses.'

'Oscilloscope display: Yellow sine wave at 902.5 Hz, amplitude of 7.8V, period of approximately 1.108 ms. Coordinates and time measurement visible.'

Oscilloscope display with two waveforms. Top: rectangular waveform, bottom: sine wave. Both in yellow, with time and voltage as axes.

Oscilloscope screen displays five sine waves in different colours, with the same frequency but varying amplitudes.

An oscilloscope display shows three wave signals. The top blue wave has the largest amplitude, the middle orange wave has a medium frequency, and the bottom green wave has the highest frequency.

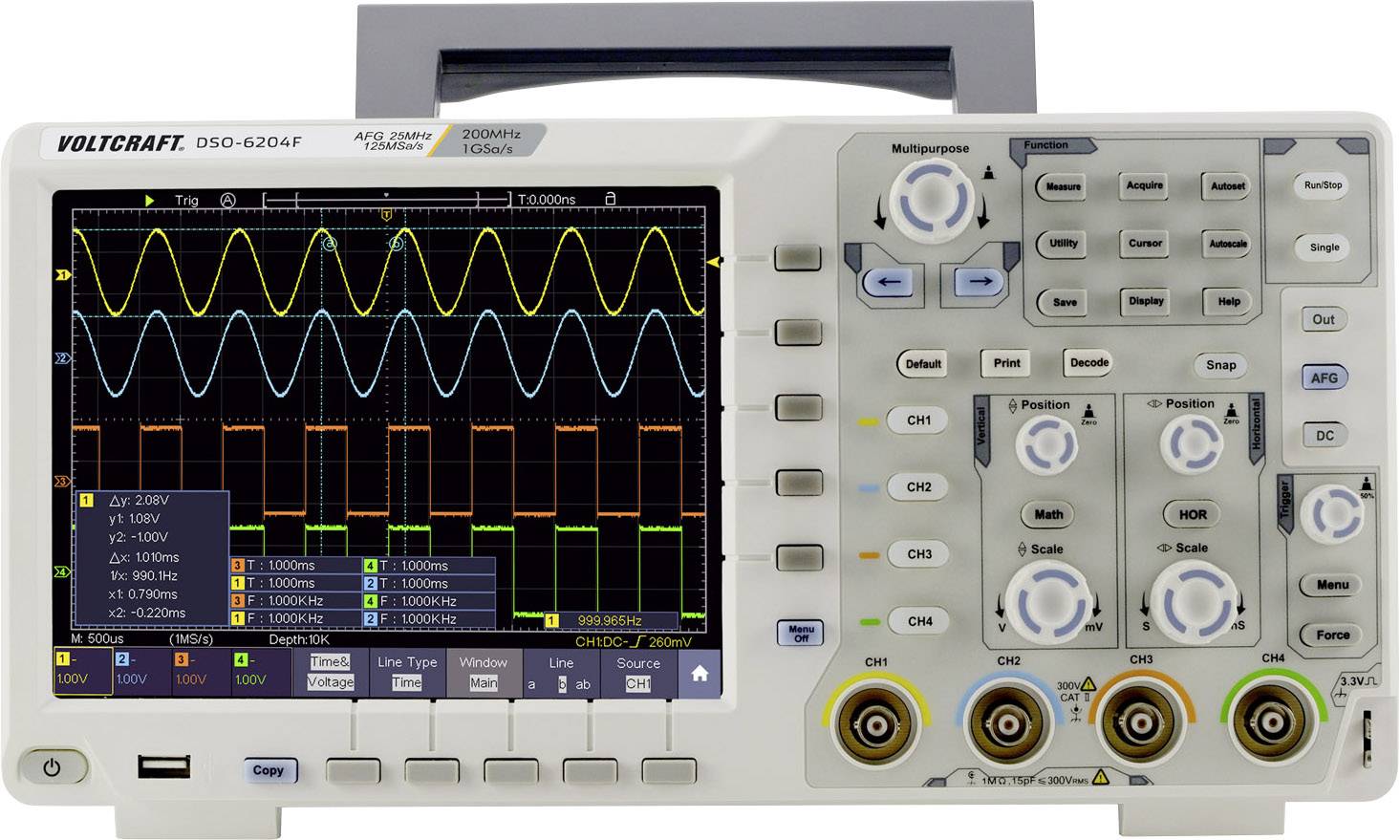

Oscilloscope image with two wavy lines. The upper line is yellow, the lower line is blue. Delta values in a box in the bottom left: Δy 2.10V, Δx 1000ms. Frequency of both signals: 1000kHz.

Oscilloscope screen displays four different waveforms: sine waves at the top, square waves at the bottom, each with frequencies and time axis.

Oscilloscope display with three overlapping waveforms in yellow, blue and green. Shows frequency and amplitude of the signals.

'Three-Channel Oscilloscope Software: Upper wave shows sine wave, middle shows waveform with lower frequency, lower shows square wave.'

'Oscilloscope screen displays a Lissajous figure with intersecting curves in blue, yellow and red, illustrating amplitude and frequency differences.'

1/27

Our service for you

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

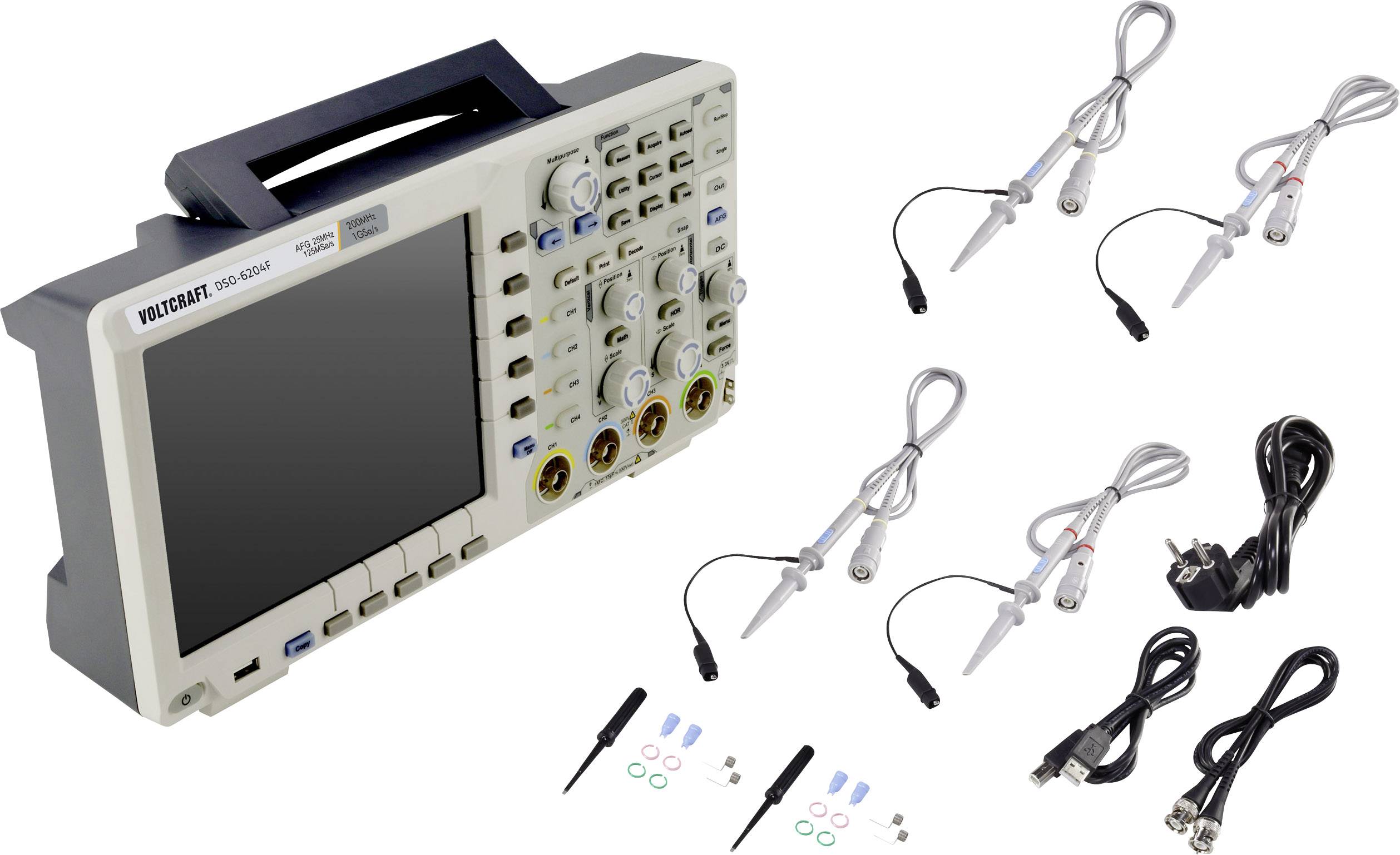

DIGITAL-OSCILLOSCOPE DSO-6204F

200 MHz Bandwidth

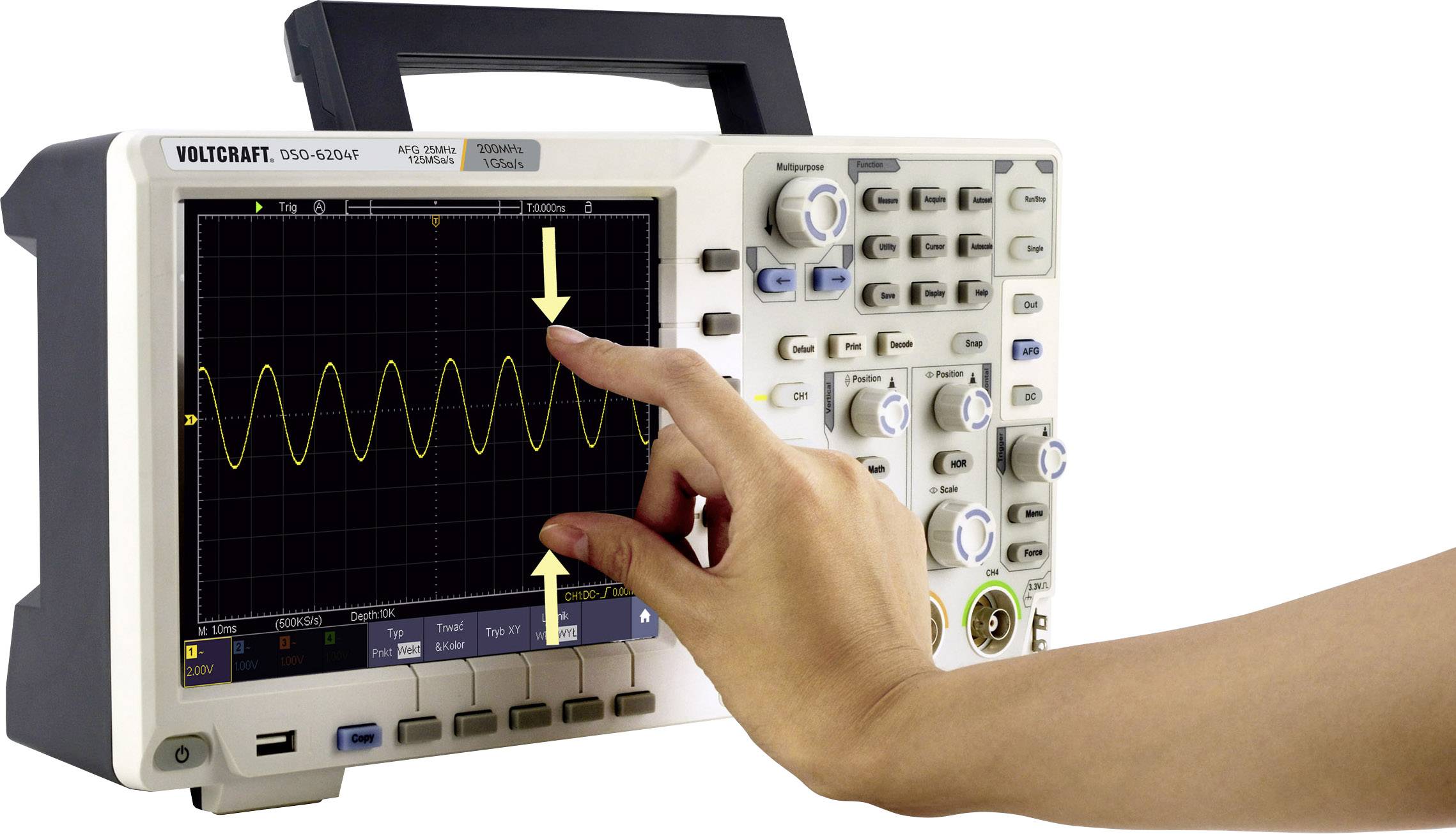

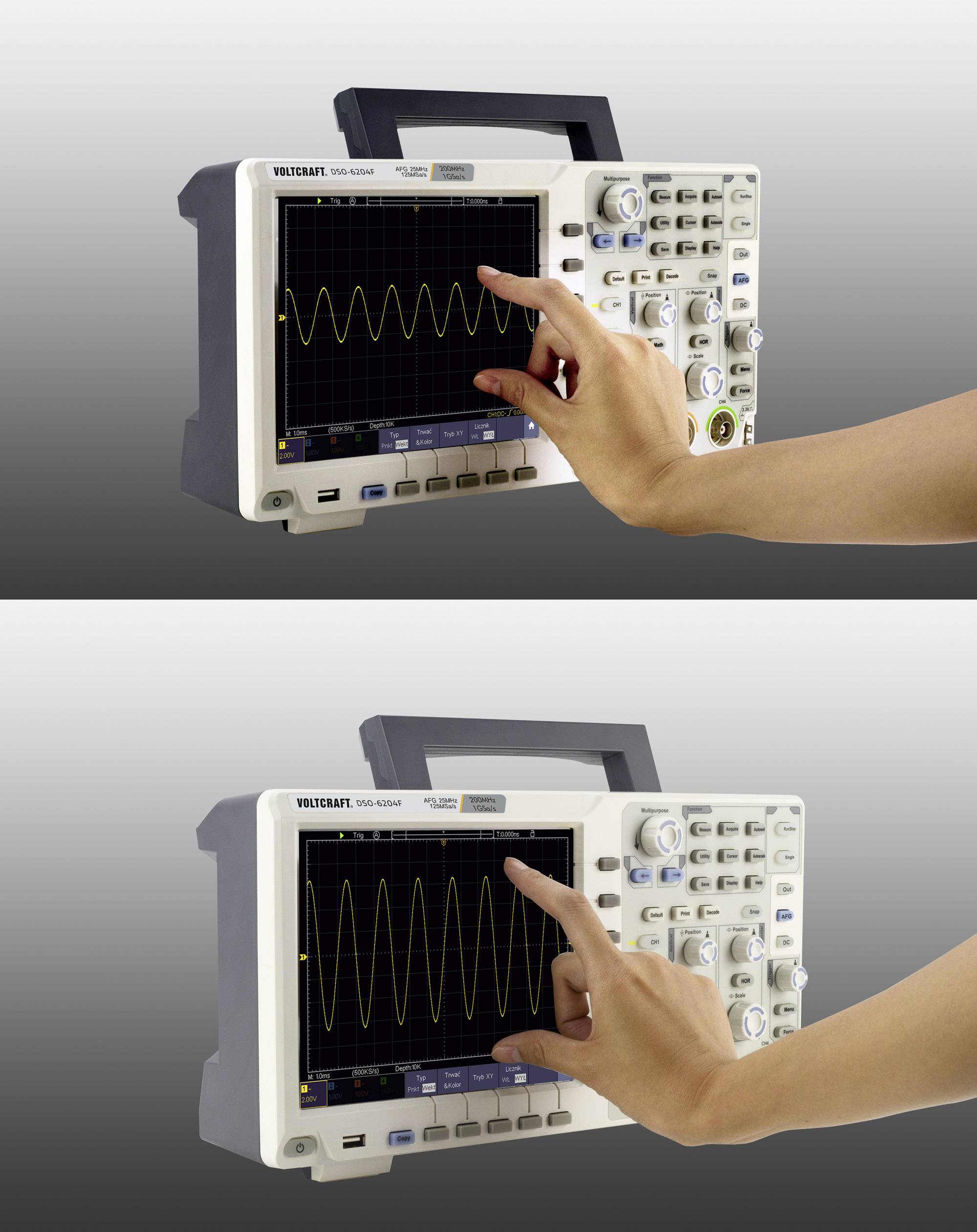

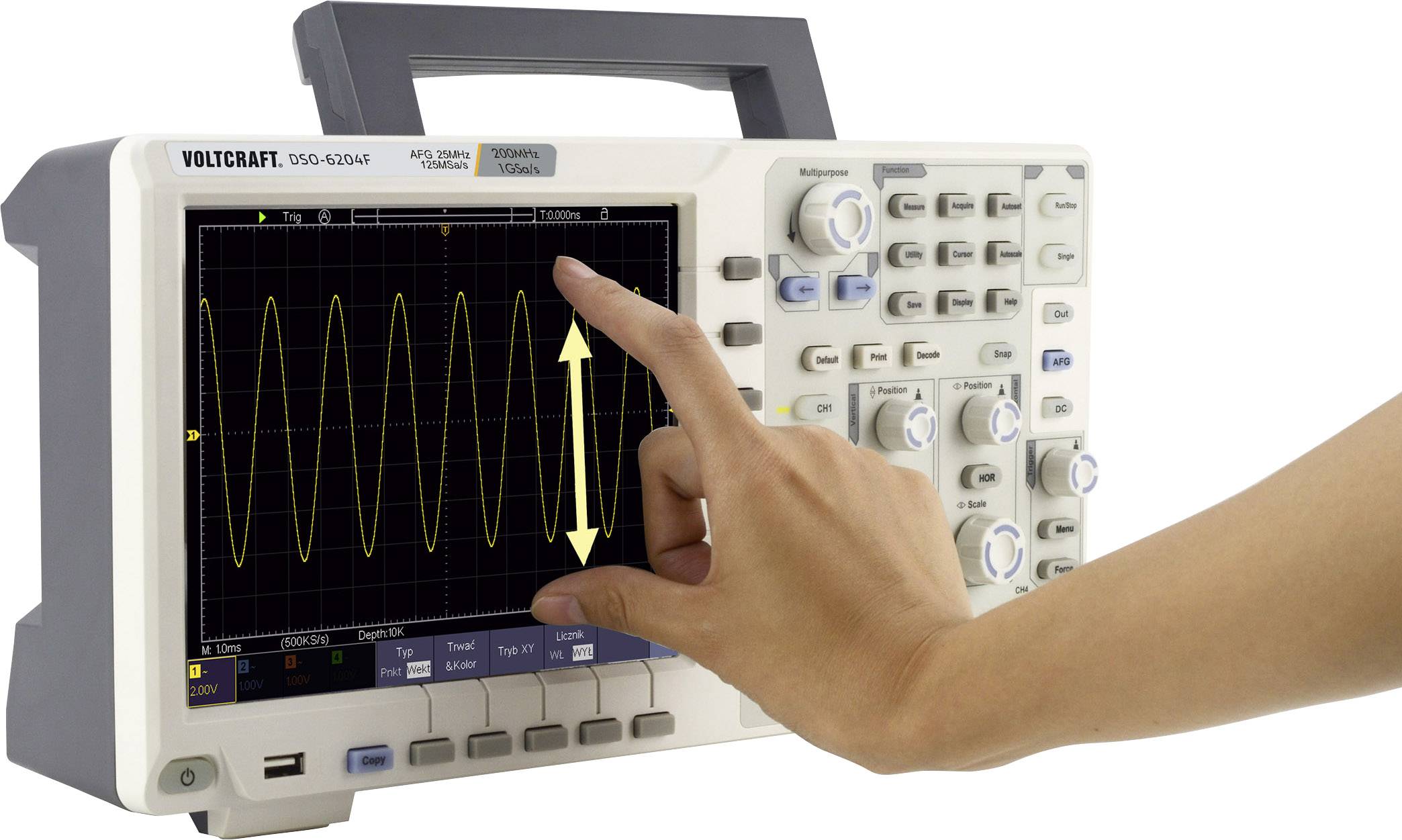

8" (20.32cm) 800 x 600 pixel multi-touch screen (smartphone-like zoom function)
Colour temperature mode
25 MHz DDS arbitrary waveform generator

Technical specifications

Mathematical operations: + - * / FFT Intg user-defined
Refresh rate: 45.000 wfms/s
Slew rate< 1.75 ns
SPI, I²C, RS232, and CAN bus decoder
Battery slot
Function generator: 25 MHz, 125 MSa/s, 14-bit vertical resolution
Waveforms: sine, square, ramp, pulse
Arbitrary functions: exponential, sin(x)/x, staircase, noise

Product type: Digital

Bandwidth: 200 MHz

Channel sample rate: 1 GS/s

Displays: Multi-touch 800 x 600 pixels

Resolution: 8 Bit

Screen size: 20,32 cm (8") cm

Oscilloscope features: Digital storage (DSO)
Function generator

Time base: 2 ns/div - 100 s/div

No. of analogue inputs: 4

: ISO standards

Reading category: CAT II

Vertical deflection: 1 mV/div - 10 V/div

Input impedance: 1 MΩ

Input coupling: DC / AC / GND

Input voltage: 1 MΩ < = 400Vrms

Power supply (details): 100–240 V/AC 50/60 Hz, CATII

Dim: (L x W x H) 90 x 340 x 178 mm

Weight: 2674 g

Display: LCD / 800 x 600 p

Calibration service: 5 measured values per range up to 500 MHz, calibration without accompanying probes

Width: 340 mm

Height: 178 mm

Length: 90 mm

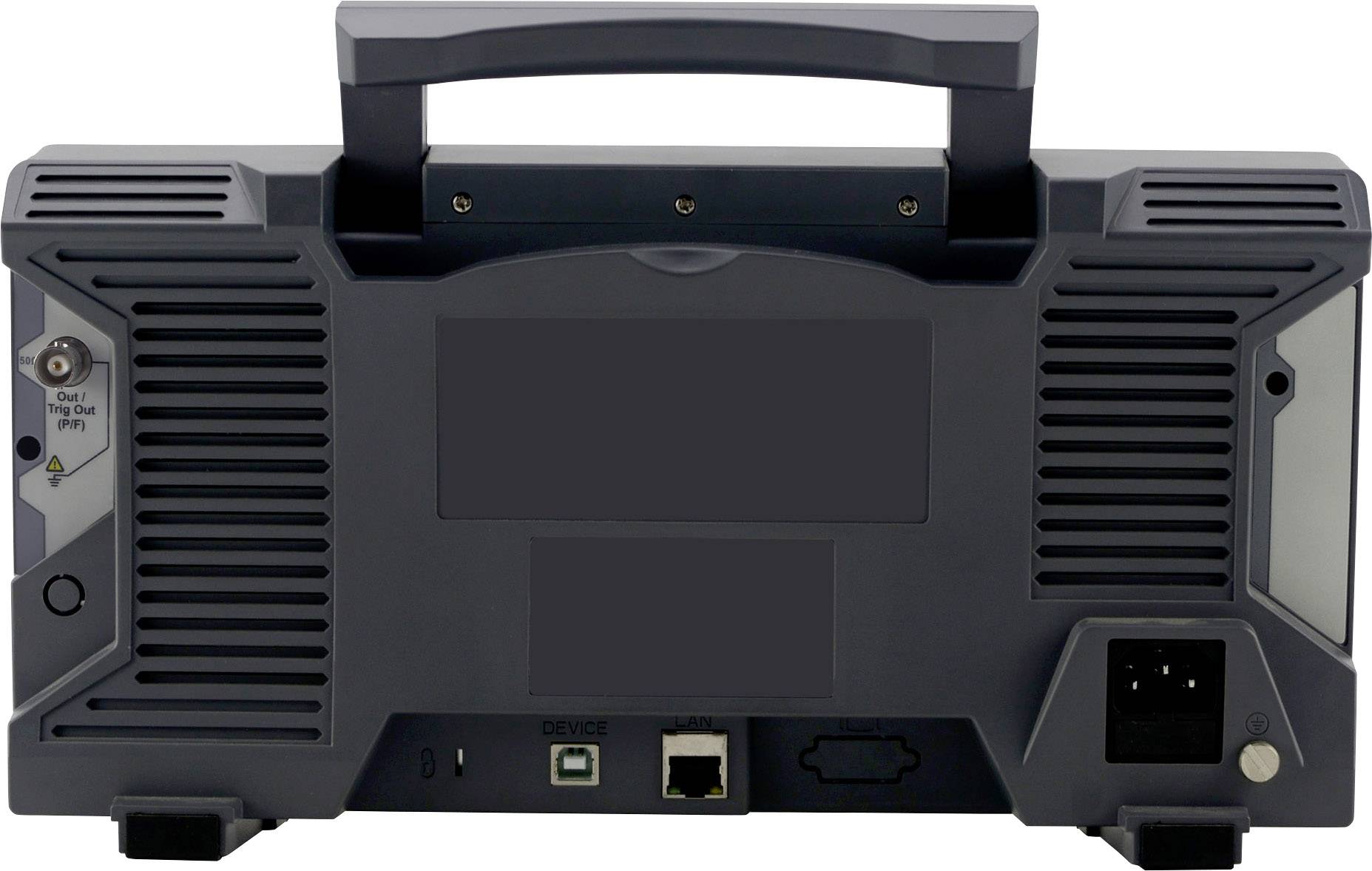

Interfaces: USB

Channel memory depth: 10000 KP

Type: DSO-6204F

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 1975022 VOLTCRAFT DSO-6204F Digital Calibrated to (ISO standards) 200 MHz 1 GS/s 10000 KP 8 Bit Digital storage (DSO), Function

User & Safety Instructions

User & Safety Instructions 1975022 VOLTCRAFT DSO-6204F Digital Calibrated to (ISO standards) 200 MHz 1 GS/s 10000 KP 8 Bit Digital storage (DSO), Function

Information

Information 1975022 VOLTCRAFT DSO-6204F Digital Calibrated to (ISO standards) 200 MHz 1 GS/s 10000 KP 8 Bit Digital storage (DSO), Function

Conformity certificate

Conformity certificate 1975022 VOLTCRAFT DSO-6204F Digital Calibrated to (ISO standards) 200 MHz 1 GS/s 10000 KP 8 Bit Digital storage (DSO), Function

Warranty Terms

Warranty Terms 1975022 VOLTCRAFT DSO-6204F Digital Calibrated to (ISO standards) 200 MHz 1 GS/s 10000 KP 8 Bit Digital storage (DSO), Function

Download

Download 1975022 VOLTCRAFT DSO-6204F Digital Calibrated to (ISO standards) 200 MHz 1 GS/s 10000 KP 8 Bit Digital storage (DSO), Function

Description

The DSO-6204F digital storage oscilloscope has been designed for R&D facilites, laboratories and service engineers. As usual, settings are adjustable using buttons or touchscreen. Zooming in or screen swiping works pretty much like when using a smarphone or tablet.

Colour temperature display
Recurring waveforms are colour-coded according to how often they are detected.

Bus decoder
Decodes SPI and I²C, RS232 and CAN-bus signals. Decoded values can be displayed in binary, decimal, Hex or ASCII format and compiled in event tables. Decoded CAN-bus signals are displayed in colour. This makes distinguishing between data, data length code and frame information much easier. CAN-Bus checksum errors are flagged by colour changes.

Data acquisition and processing
Readings and screen content can be transferred to and stored on a PC via USB, LAN, or Wi-Fi. When transfering data to USB memory, file names can be entered using the touchscreen.

Touch-control function generator
Settings of the 25 MHz function generator are selectable via buttons or via touchscreen. Available are sine, square, ramp and pulse waveforms. Moreover, the device comes with 46 additional arbitrary waveform presets including exponential, sine, staircase and noise. Also stores user-defined arbitrary waveforms.

Clone function
Oscilloscope input waveforms can be cloned and forwarded to the function generator. The section to be cloned is selected via touchscreen.

Battery power option
Using a Li-ion rechargeable battery (optional) significantly increases the range of uses. Opting for battery-power (optional) makes the oscilloscope a highly mobile and versatile tool. One battery charge enables 3 hours of continuous use. Under laboratory conditions, battery operation also acts as a galvanic isolator.
