VOLTCRAFT IST 3003 EVSE Tester for VDE0100 installation tester Wallbox eMobility PE pre-test
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 284.87 / piece)
€
Highlights & Details

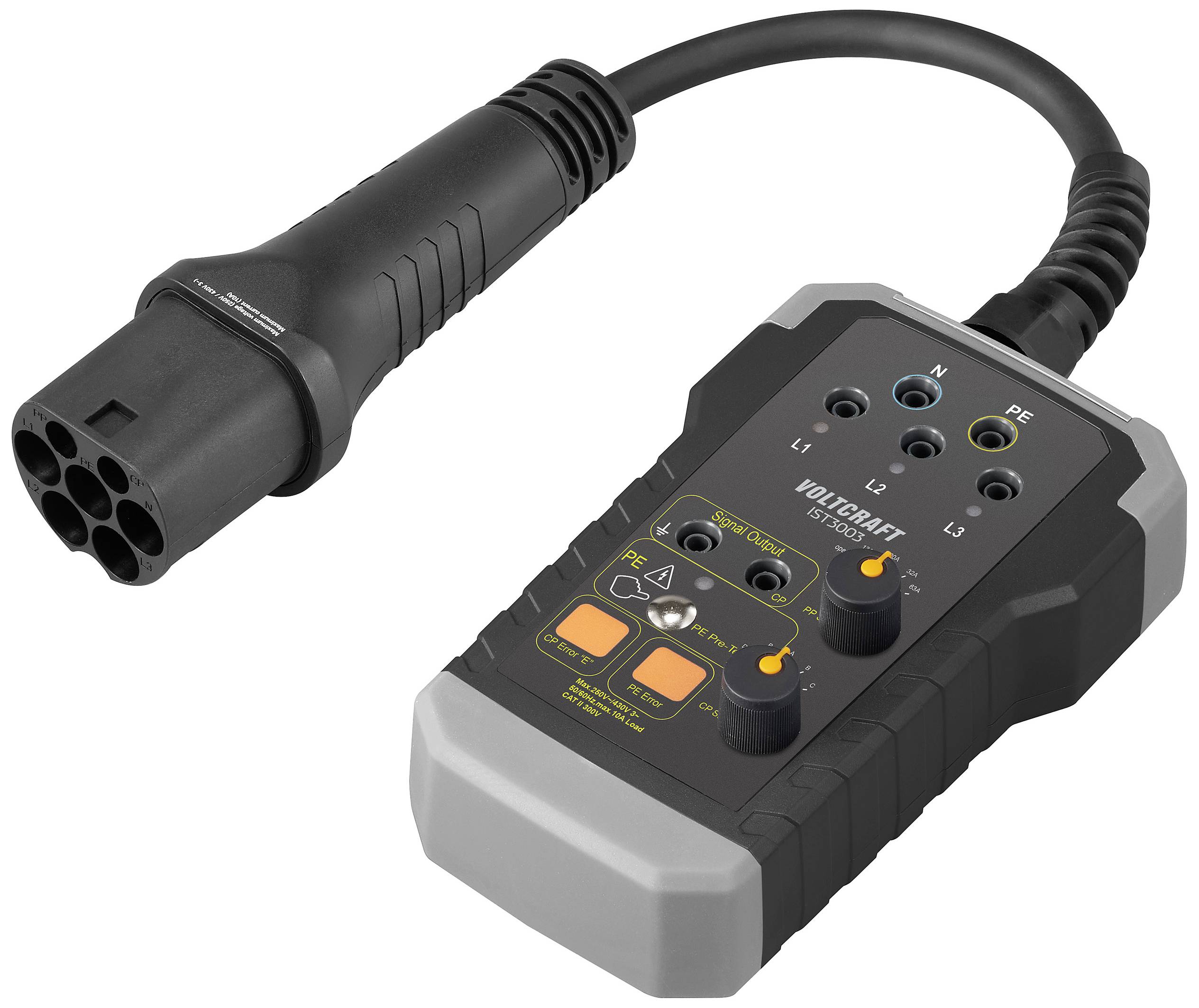

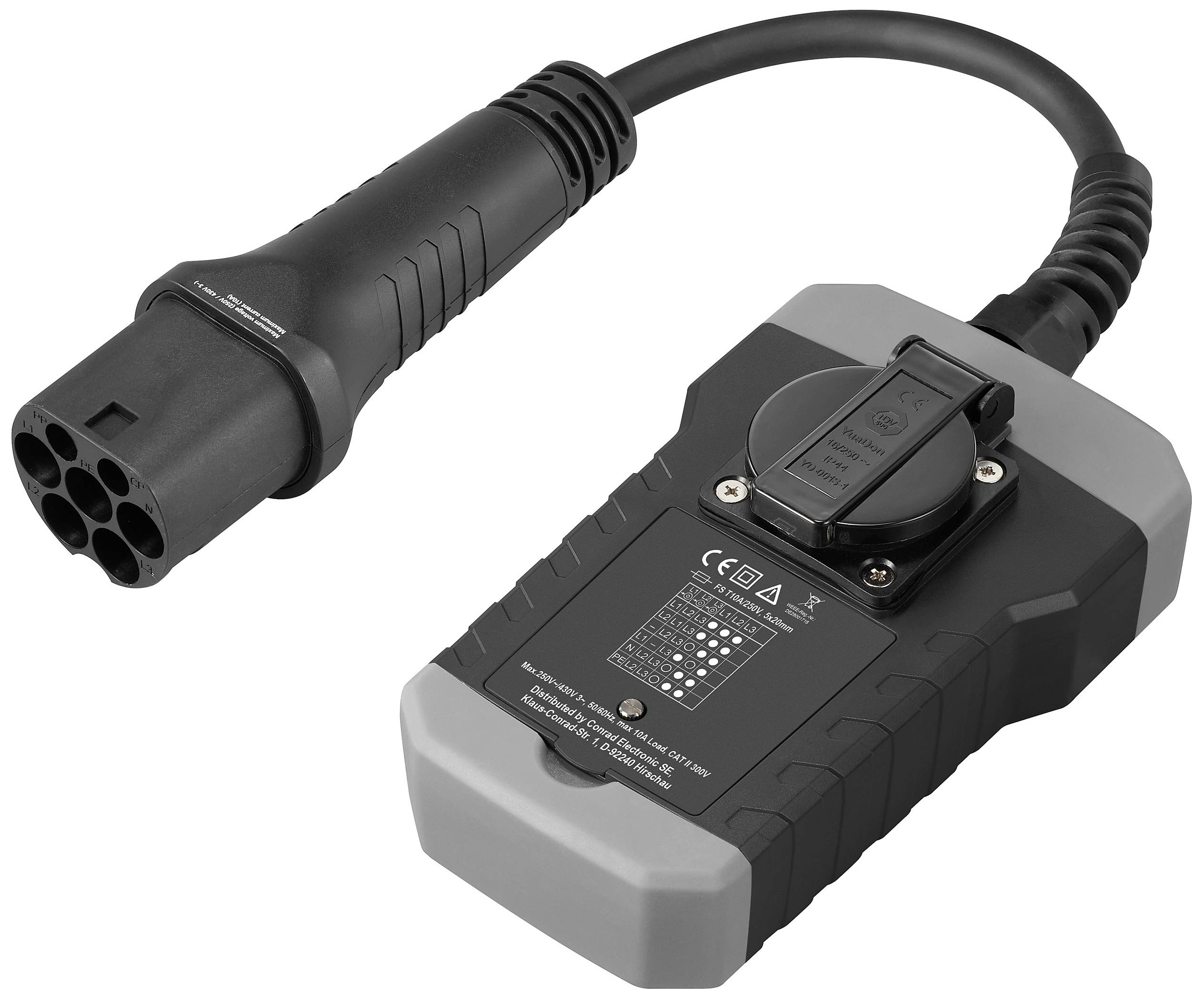

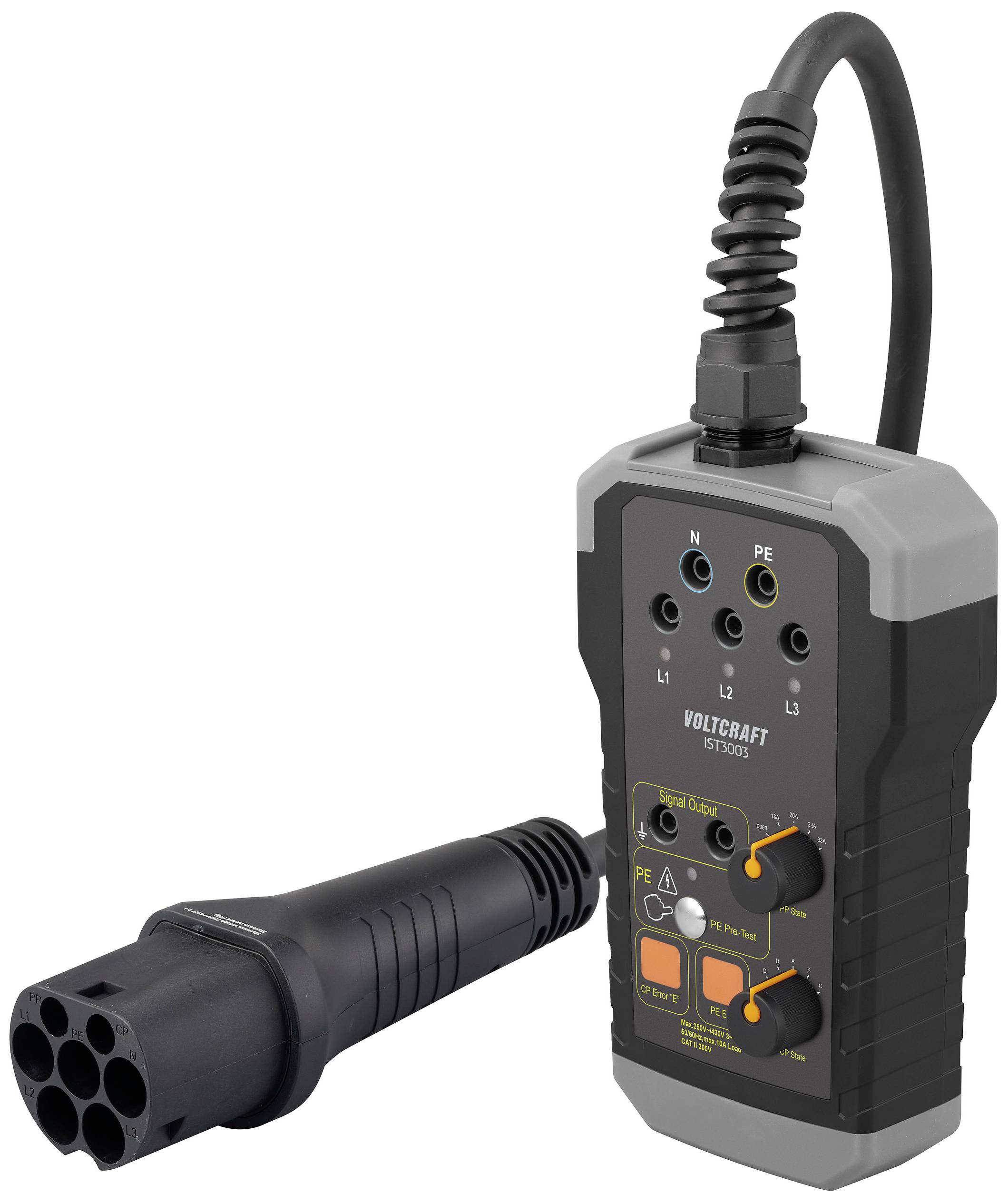

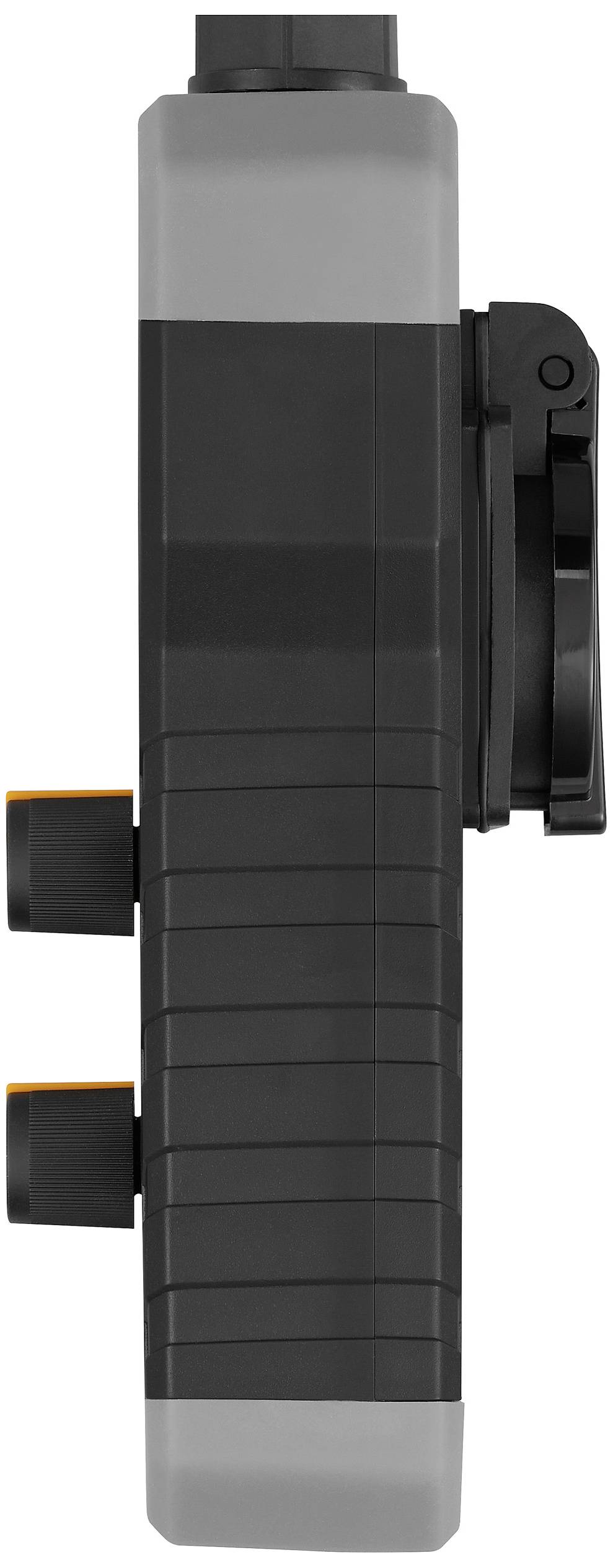

VOLTCRAFT IST 3003 EVSE Adapter
- Max. Input voltage 250 V (single phase), Max. 430 V (three-phase) 50/60 Hz
- Measurement category CAT II 300 V
- Check the electrical safety of charging stations for electric vehicles
- Compatible with every VDE0100 tester
- PE pre-test
- Simulation of CP error "E" and PE error (ground fault)
Technical specifications
- Input voltage: Max. 250 V (single phase), max. 430 V (three phase) 50/60 Hz
- Maximum test current 10 A.
- Pollution level: 2
- Type of test connector: IEC62196-2 Type 2 connector
- Height
75 mm
- Length
170 mm
- Width
100 mm
Manufacturer's standards (no certificate)
- Reading category
CAT II 300 V
- Type
IST 3003
- Weight
830 g
- Plastic free packaging
Plastic-free packaging
- Product type
Adapter plug
Documents & Downloads
Datasheet
Datasheet 2997217 VOLTCRAFT IST 3003 EVSE Tester for VDE0100 installation tester Wallbox eMobility PE pre-test
User & Safety Instructions
User & Safety Instructions 2997217 VOLTCRAFT IST 3003 EVSE Tester for VDE0100 installation tester Wallbox eMobility PE pre-test
Warranty Terms
Warranty Terms 2997217 VOLTCRAFT IST 3003 EVSE Tester for VDE0100 installation tester Wallbox eMobility PE pre-test
Description

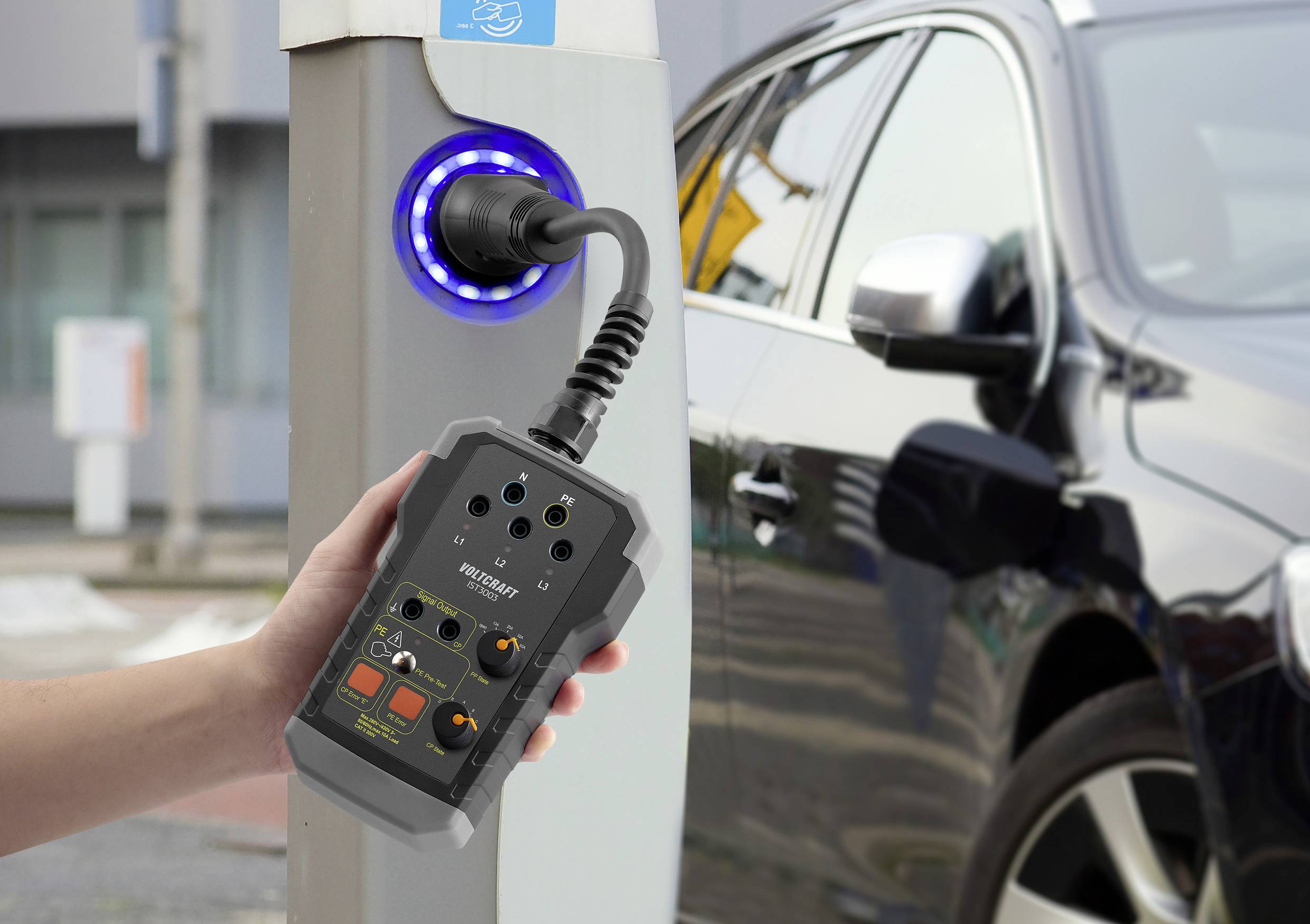

The VOLTCRAFT IS A 3003 EVSE adapter which can be used in conjunction with any VDE0100 tester to check the electrical safety of charging stations for electric vehicles.

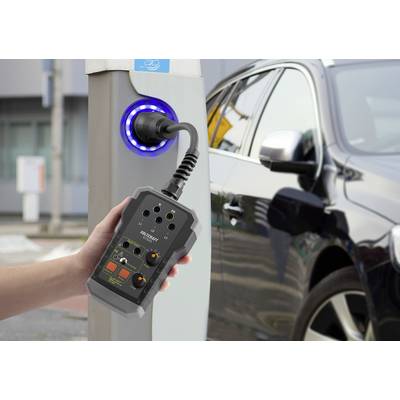

The adapter simulates the electric vehicle, which is thus not required for the testing of the charging station.
To check the safety of charging stations, the VOLTCRAFT IS A 3003 EVSE adapter which can be used for all important tests and simulations:PE pre-test, CP and PE fault tests, PP cable simulation of the various codes for charging cables with 13, 20, 32 and 63 A, and via CP the vehicle states A, B, C and D.
The VOLTCRAFT IS 3003 EVSE adapter corresponds to the standard EN 61010-1 and the measurement category CAT II 300 V. The input voltage can be up to 250 V with single-phase systems, at three-phase maximum 430 V with 50/60 Hz. A user manual is supplied with the product.
This text is machine translated.
The adapter simulates the electric vehicle, which is thus not required for the testing of the charging station.
To check the safety of charging stations, the VOLTCRAFT IS A 3003 EVSE adapter which can be used for all important tests and simulations:PE pre-test, CP and PE fault tests, PP cable simulation of the various codes for charging cables with 13, 20, 32 and 63 A, and via CP the vehicle states A, B, C and D.
The VOLTCRAFT IS 3003 EVSE adapter corresponds to the standard EN 61010-1 and the measurement category CAT II 300 V. The input voltage can be up to 250 V with single-phase systems, at three-phase maximum 430 V with 50/60 Hz. A user manual is supplied with the product.
This text is machine translated.
Features
- PP simulation (open circuit): 13 A, 20 A, 32 A, 63 A.
- CP SIMULATION STATES: A, B, C, D
- Standards: EN 61010-1
Scope of delivery
- EVSE adapter

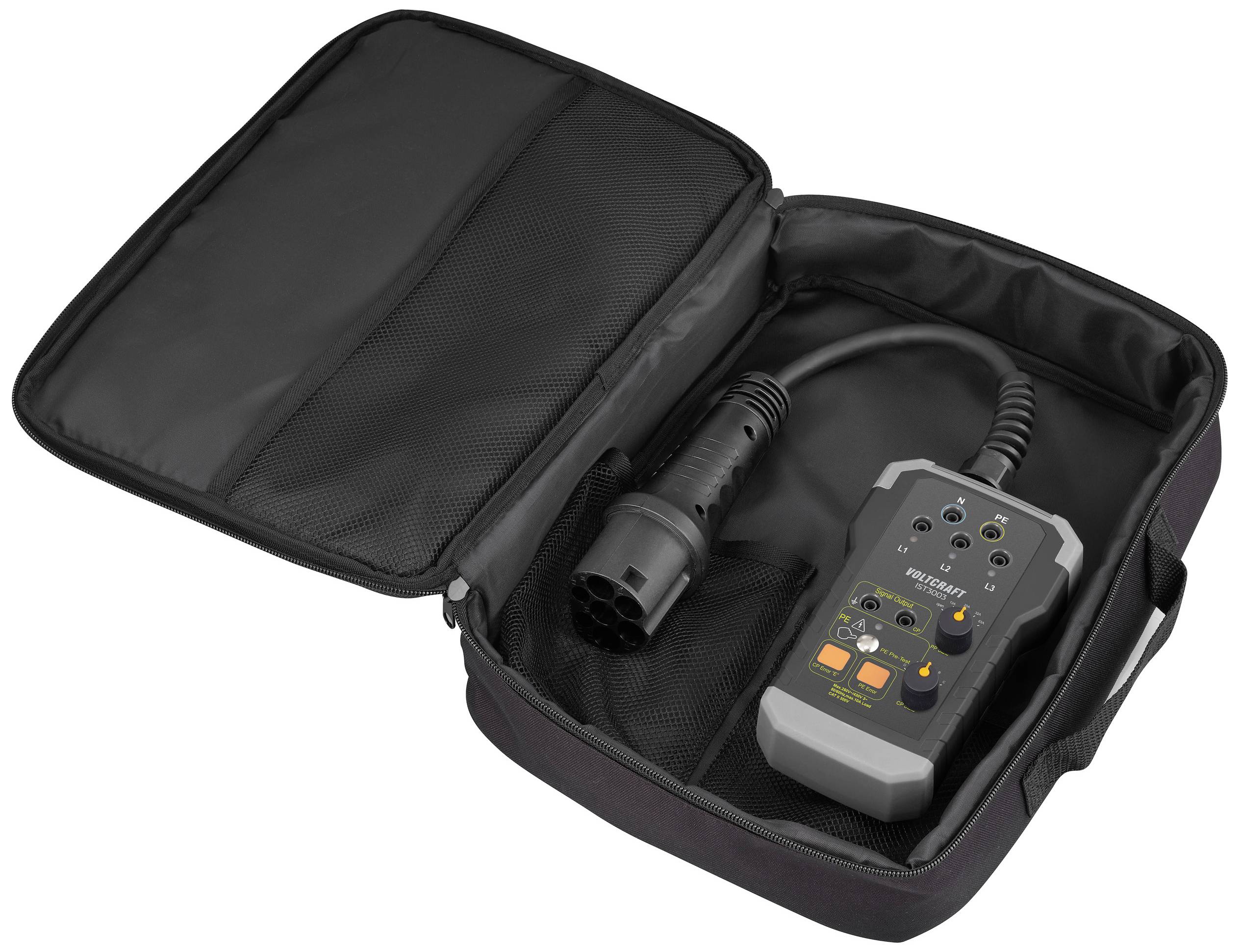

- Carry bag
- User manual
Frequently Bought Together
(*All information is plus legal VAT) This article
VOLTCRAFT IST 3003 EVSE Tester for VDE0100 installation tester Wallbox eMobility PE pre-test
Conrad Electronic
€ 284.87*

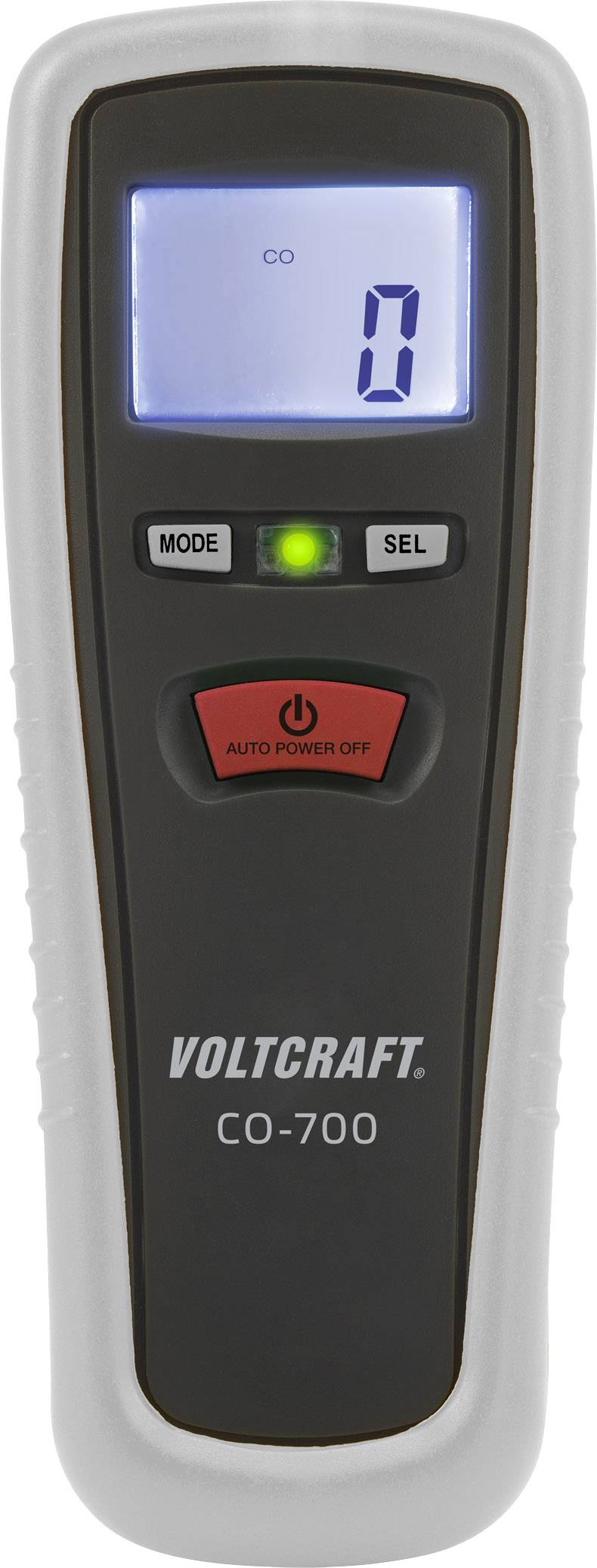

VOLTCRAFT CO-700 Carbon monoxide detector 0 - 1000 ppm
