VOLTCRAFT MSL-507 Test lead 4 mm plug Alligator clips 1.00 m Black, Red 1 pc(s)
EAN:
Part number:
Item no:
281 Set(s)
Sales and shipping:
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 25.20
3
4% = € 1.09
€ 24.11
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 25.20 / piece)
€
Highlights & Details

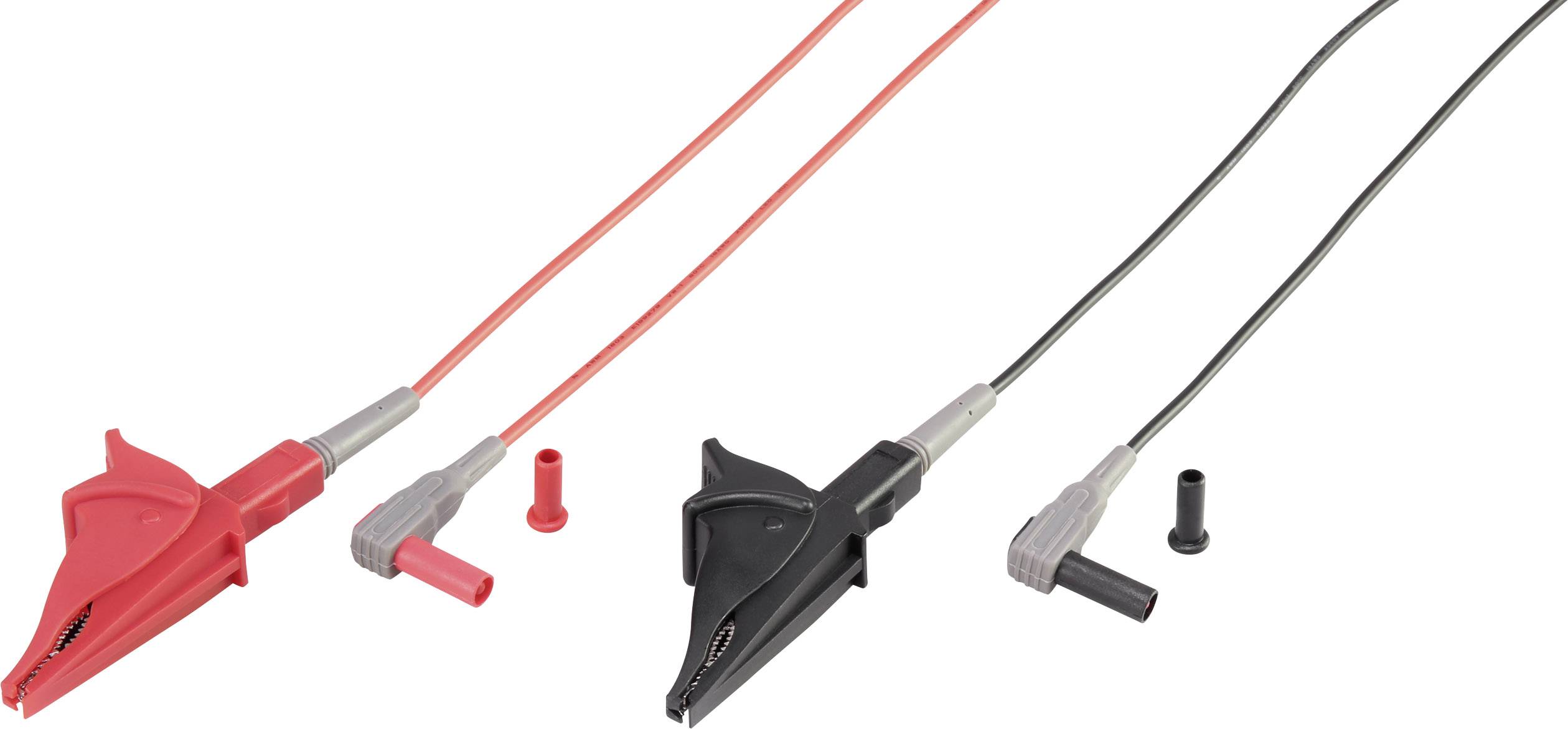

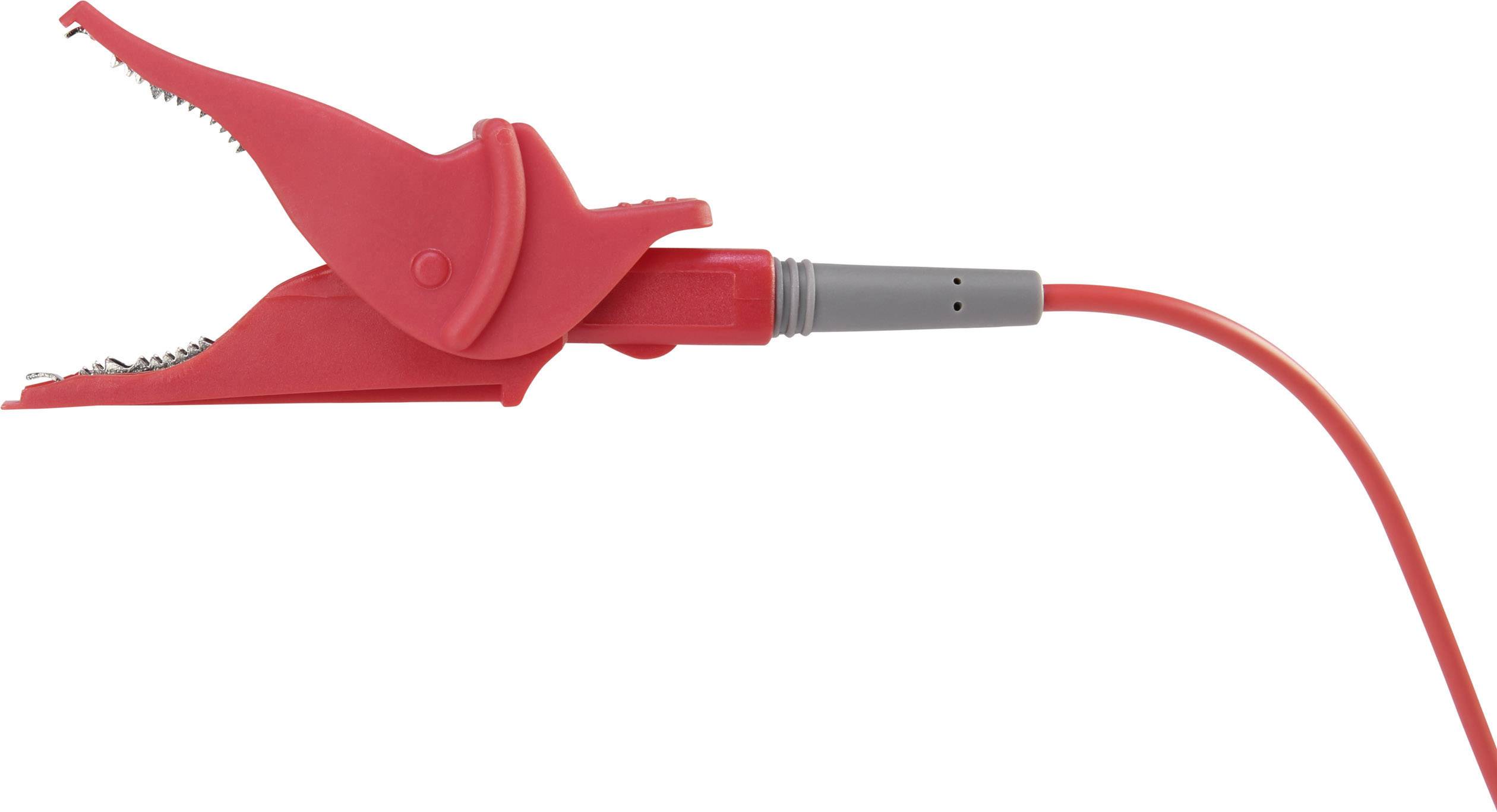

Test lead with alligator clip MSL-507
- CAT III 1000 V, CAT IV 600 V
- Terminal with cable is firmly connected
- Perfect in tensile loading
- Highly flexible silicon cable
Technical specifications
- Factory colour
Black
Red
- Cable cross section
0.85 mm²
- Diameter/connectortype
4 mm / Banana Plug
- Temperature range
0 ~ 40 °C
- Nominal current
10 A
- Nominal current - rounded value
10 A
- Cable length
1.00 m
- Type A
4 mm plug
- Type B
Alligator clips
- Width
45 mm
- Material
PP
Silicone
- Reading category
CAT III 1000 V
CAT IV 600 V
- Plug features
Angled
- Type
MSL-507
- Nominal voltage
1000 V
- Contact material
Copper
- Jack diameter
4 mm
- Product type
Test lead
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1619409 VOLTCRAFT MSL-507 Test lead 4 mm plug Alligator clips 1.00 m Black, Red 1 pc(s)
Conformity certificate
Conformity certificate 1619409 VOLTCRAFT MSL-507 Test lead 4 mm plug Alligator clips 1.00 m Black, Red 1 pc(s)
Warranty Terms
Warranty Terms 1619409 VOLTCRAFT MSL-507 Test lead 4 mm plug Alligator clips 1.00 m Black, Red 1 pc(s)
Description
Perfect for connecting to all the multimeter types. To be measured elements can easily and safely be contacted. So your hands remain free for other tasks. In this model is the cable insulation made of silicone and thus heat-resistant than conventional PVC. The risk of damage to the cable due to hot soldering iron is thus reduced.
This text is machine translated.
This text is machine translated.
Scope of delivery

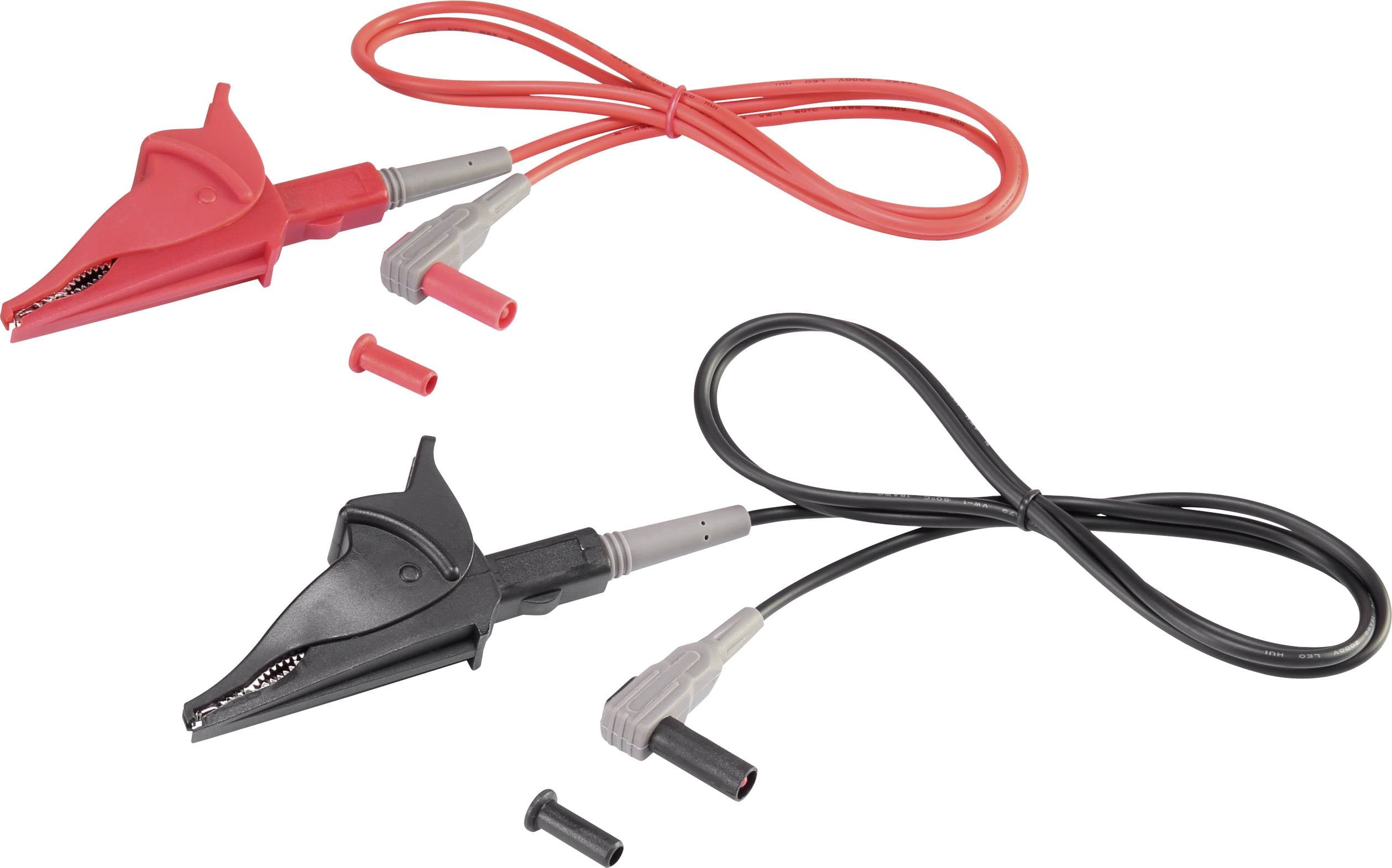

- Test lead, red
- Test lead black
