Name: VOLTCRAFT MSP-3010 Bench PSU (adjustable voltage) 0 - 30 0 - 10 A 600 W 4 mm socket No. of outputs 2 x
Brand: VOLTCRAFT
SKU: 3474029
Availability: BackOrder

A dual-channel AC/DC power supply with digital displays showing outputs of 10 volts and 5 amps for both channels. Four control knobs included.

A digital voltmeter displaying values for voltage, current, and power. It shows '10.0 A' and '100 V' on two screens with various control knobs.

'A dual digital power supply with two displays showing 10.0 V, 0.0 A for the DC section, and 0.0 V, 0.0 A for the AC section. Knobs and LED indicators are present.'

'Back of a white electronic device with a switch for 50Hz, Auto, and 60Hz settings, and a power socket at the bottom.'

'Bench Power Supply with digital display, showing voltage and amperage outputs. Includes a power cord and extra fuse.'

1/5

Our service for you

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 659.00 / piece)

€ 659.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

VOLTCRAFT MSP-3010 AC/DC Switching power supply 2x 30 V 2 A

No. of outputs 2 x
0 - 30 V AC / 0 - 10 A; 0 - 30 V DC / 0 -10 A
600 W
4 mm socket

Technical specifications

Dimension (W x H x D): 170 x 160 x 250 mm

Type: MSP-3010

Product type: Bench PSU (adjustable voltage)

No. of outputs: 2 x

: 600 W

Technology: SMPSU

Interfaces: 4 mm socket

Dim: (L x W x H) 250 x 170 x 160 mm

: Manufacturer's standards (no certificate)

Weight: 3 kg

Output: 4 mm socket

Output voltage (max.): 30 V AC

Output voltage (min.): 0 V AC

Output voltage 2 (max.): 30 V DC

Output voltage 2 (min.): 0 V DC

Max. output current: 10 A

Output current (min.): 0 A

Output current 2 (max.): 10 A

Output current 2 (min.): 0 A

Inputs: 100-127 V AC or 220-240 V AC, 50/60 Hz

MTBF: 2000 h

Width: 170 mm

Height: 160 mm

Length: 250 mm

Max. temperature: 85 °C

Min. temperature: 0 °C

Plastic free packaging: Plastic-free packaging

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 3474029 VOLTCRAFT MSP-3010 Bench PSU (adjustable voltage) 0 - 30 0 - 10 A 600 W 4 mm socket No. of outputs 2 x

User & Safety Instructions

User & Safety Instructions 3474029 VOLTCRAFT MSP-3010 Bench PSU (adjustable voltage) 0 - 30 0 - 10 A 600 W 4 mm socket No. of outputs 2 x

Warranty Terms

Warranty Terms 3474029 VOLTCRAFT MSP-3010 Bench PSU (adjustable voltage) 0 - 30 0 - 10 A 600 W 4 mm socket No. of outputs 2 x

Features

600 W AC and DC power output
AC and DC both constant voltage and constant current
AC and DC can be set separately

Scope of delivery

Switching power supply
Power cord
Manual

Description

Features

600 W AC and DC power output
AC and DC both constant voltage and constant current
AC and DC can be set separately

Scope of delivery

Switching power supply
Power cord
Manual

Frequently Bought Together

(^*All information is plus legal VAT)

This article

VOLTCRAFT MSP-3010 Bench PSU (adjustable voltage) 0 - 30 0 - 10 A 600 W 4 mm socket No. of outputs 2 x

Conrad Electronic

€ 659.00^*

VOLTCRAFT MSB-300 Test lead Banana jack 4 mm Silicone 2.00 m Red 1 pc(s)

Conrad Electronic

€ 12.99^*

-22%

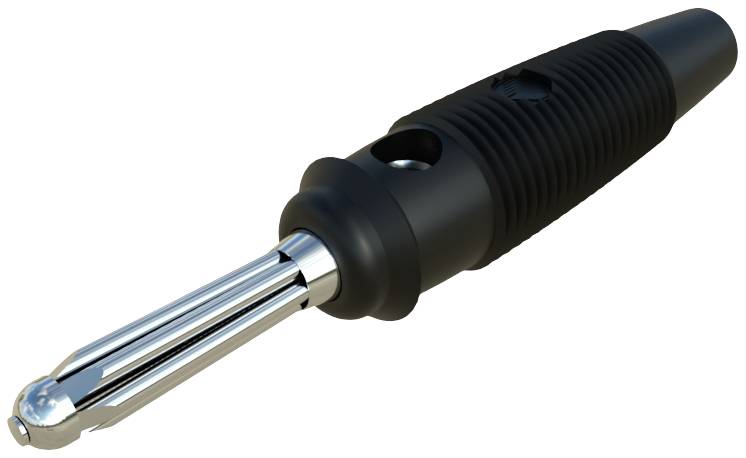

Hirschmann Test & Measurement BUELA 20 K Banana plug Plug, straight Pin diameter: 4 mm Black 1 pc(s) Piece
