Buy VOLTCRAFT V-Charge 50 Scale model multifunction charger 12 V, 230 V 7 A

A charger in a grey and red housing with a display and buttons for configuring charging parameters. Model 'V-Charge 50'.

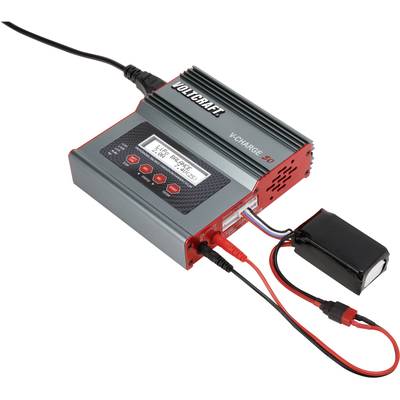

A charger with a display and buttons is charging a battery. The display shows '14.25V' and '025:04 MIN'. Cables connect the device and battery.

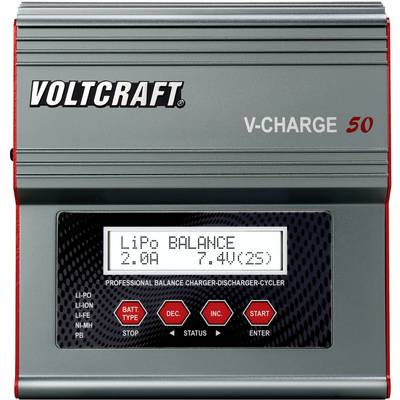

Charger with display showing 'LiPo BALANCE 2.0A 7.4V(2S)'. Device identified as VOLTCRAFT V-CHARGE 50, with functions such as mode selection and start.

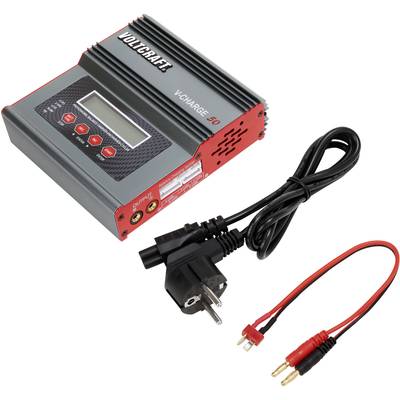

A battery charger with a display and control buttons. Beside it are two cables: one with a plug and one with two crocodile clips.

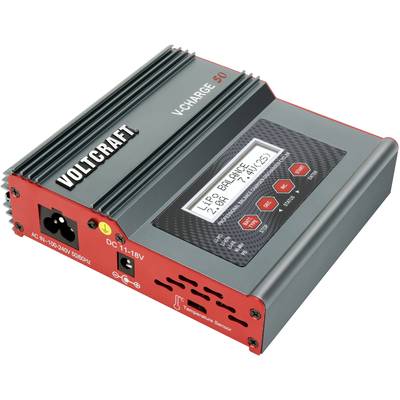

A charger with the inscription 'VOLTCRAFT V-CHARGE 50', displays a screen with battery charging information. Connection sockets on the right.

Red power supply rear panel with AC input (100-240V, 50/60Hz), DC output (11-18V) and connection for temperature sensor.

Rear view of a red charger with 'Balance Charging Socket'. Several white connectors and two round terminals are visible.

1/7

Our service for you

Unavailable

Show alternatives

Sales and shipping:

Conrad Electronic Terms & Conditions

Total (€ 65.54 / piece)

€ 65.54

plus VAT.

Report legal concerns

Highlights & Details

Multifunction charger V-Charge 50

Suitable for NiCd, NiMH, LiPo, LiIon, LiFe and lead batteries
Integrated balancer
Two-line lit LC display

Technical specifications

Supply voltage: 100 - 240 V/AC, 50/60 Hz
Direct voltage input: 11 - 18 V/DC
Max. charging current: 0.1 - 7.0 A
Charging output: max. 50 W
Discharge current: 0.1 - 2.0 A
Discharge output: max. 5 W
Suitable rechargeable batteries: NiMH/NiCd, 1 - 15 cells LiPo/LiIon/LiFe, 1 - 6 cells Pb, 1 - 10 cells
Delta-U-recognition: NiMH/NiCd: 3 - 15 mV/cell (adjustable)
Dimensions (W x H x D): approx. 137 x 45 x 147.5 mm
Weight: approx. 600 g

Type: V-Charge 50

Operating voltage: 100 - 240 V
11 - 18 V / DC

Max. charging capacity: 50 W

Charging current (max.): 7 A

Max. discharge power: 5 W

Discharge current: 2 A

Charging slots: 1

Connector system: 4 mm

Balancer plug-in: XH

Dim: (L x W x H) 142 x 134 x 36 mm

Height: 36 mm

Length: 142 mm

Width: 134 mm

Suitable for (No. of LiPo/LiIon/LiFe batteries) (max.): 6

Suitable for (No. of LiPo/LiIon/LiFe batteries) (min.): 1

Suitable for (no. of NiCd/NiMH batteries) (max.): 15

Suitable for (No. of NiCd/NiMH batteries) (min.): 1

Suitable for lead-type rechargeables (max.): 20 V

Suitable for lead-type rechargeables (min.): 2 V

Manufacturer part #: 1416554

Operating voltage: 12 V
230 V

Weight: 640 g

Product type: Scale model multifunction charger

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1416554 VOLTCRAFT V-Charge 50 Scale model multifunction charger 12 V, 230 V 7 A

Information

Information 1416554 VOLTCRAFT V-Charge 50 Scale model multifunction charger 12 V, 230 V 7 A

Warranty Terms

Warranty Terms 1416554 VOLTCRAFT V-Charge 50 Scale model multifunction charger 12 V, 230 V 7 A

Description

The V-Charge 50 Multi-functional charger for all ambitious model makers: the ideal all-round charging device types of rechargeable batteries. Also lets you select battery type and charging/discharging settings individually. The charger can be powered both by 11-18 V DC and by 100V-240V mains using the built-in power supply unit. At home, when travelling, or at the airport, V-Charge 200 Duo is always a perfect choice.

This text is machine translated.
