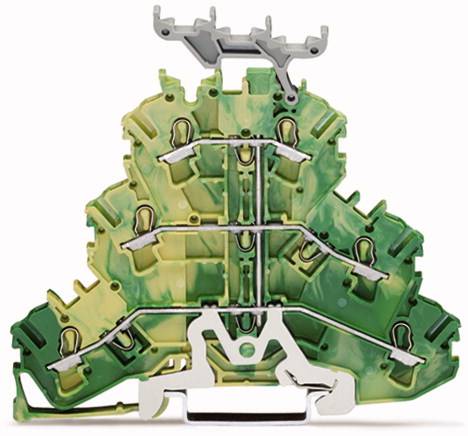

WAGO 2002-3237 Triple port PG terminal 5.20 mm Pull spring Configuration: Terre Green, Yellow 50 pc(s) Piece
Packaging type
Piece
Product type
Triple port PG terminal
Connection
Pull spring
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
2.50 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Three-level terminal
- 2002-3237
Technical specifications
- Packaging type
Piece
- Product type
Triple port PG terminal
- Features
Complies with ATEX Ex-e II standards
+ label
- Connection
Pull spring
- Configuration
Terre
- Cross section (flexible) (min.)
0.25 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.25 mm²
- Cross section (inflexible) (max.)
2.50 mm²
- AWG (min.)
22
- AWG max.
12
- Clamp width
5.20 mm
- No. of rows
3
- Pins per row
2
- Number of pins
6
- Factory colour
Green
Yellow
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Stripping length (max.)
10 mm
- Manufacturer part #
2002-3237
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
2002-3237

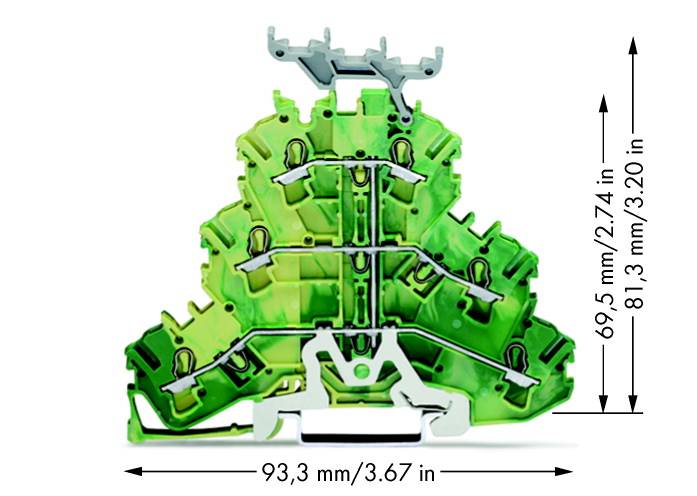

- Dim
(L x W x H) 5.20 x 5.20 x 81.30 mm
- Width
5.20 mm
- Height
81.30 mm
- Length
5.20 mm
- Weight
21.256 g
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 655434 WAGO 2002-3237 Triple port PG terminal 5.20 mm Pull spring Configuration: Terre Green, Yellow 50 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 655434 WAGO 2002-3237 Triple port PG terminal 5.20 mm Pull spring Configuration: Terre Green, Yellow 50 pc(s) Piece
What kind of Serial Terminals are you looking for?
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
