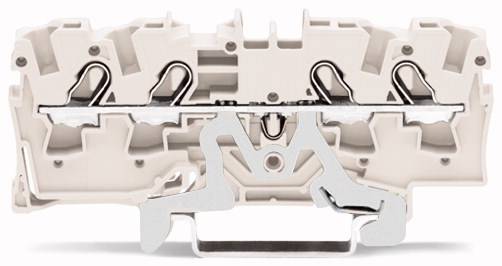

WAGO 2004-1408 Shielding terminal 6.20 mm Pull spring White 50 pc(s) Package
Packaging type
Package
Product type
Shielding terminal
Connection
Pull spring
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
4 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
4-conductor shielding terminal
- 2004-1408
Technical specifications
- Packaging type
Package
- Product type
Shielding terminal
- Features
+ CAGE CLAMP®
- Connection
Pull spring
- Cross section (flexible) (min.)
0.50 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.50 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
20
- AWG max.
10
- Clamp width
6.20 mm
- No. of rows
1
- Pins per row
4
- Number of pins
4
- Factory colour
White
- Nominal current
10 A
- Nominal current - rounded value
10 A
- Stripping length (max.)
11 mm
- Manufacturer part #
2004-1408
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
2004-1408

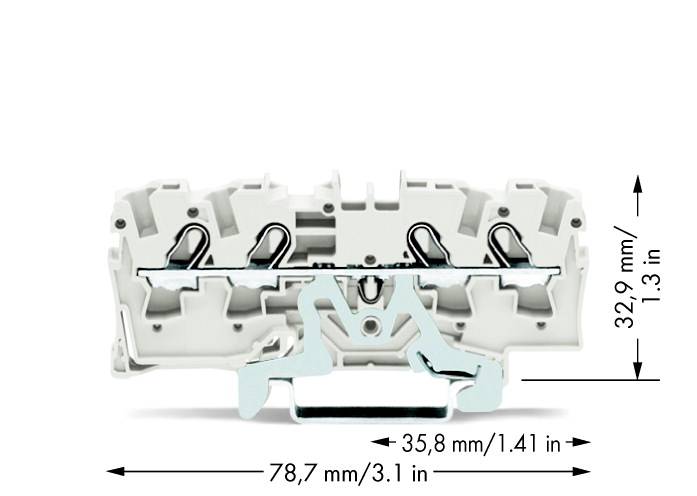

- Dim
(L x W x H) 6.20 x 6.20 x 32.90 mm
- Width
6.20 mm
- Height
32.90 mm
- Length
6.20 mm
- Weight
15.888 g
- Connector colour
White
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 657105 WAGO 2004-1408 Shielding terminal 6.20 mm Pull spring White 50 pc(s) Package
User & Safety Instructions
User & Safety Instructions 657105 WAGO 2004-1408 Shielding terminal 6.20 mm Pull spring White 50 pc(s) Package
