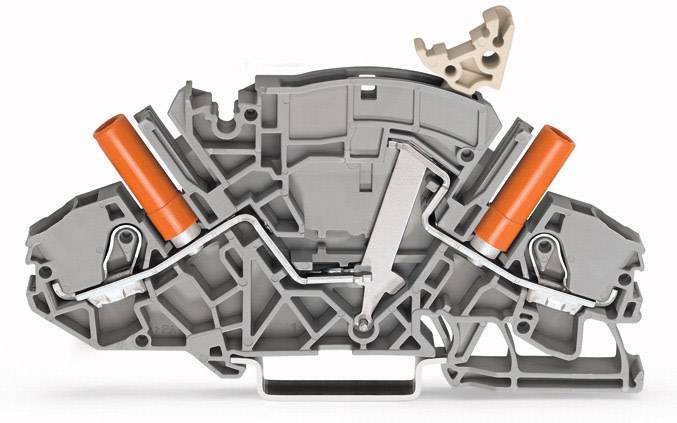

WAGO 2007-8811/044-000 Dual port N/test terminal 8 mm Push-in connector Grey 20 pc(s)
Product type
Dual port N/test terminal
Connection
Push-in connector
Cross section (flexible) (max.)
10 mm²
Cross section (inflexible) (max.)
10 mm²
Nominal current - rounded value
30 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Double-decker separation and measurement terminal 2007-8811/044-000
- 2007-8811/044-000
Technical specifications
- Product type
Dual port N/test terminal
- Features
+ test option
- Connection
Push-in connector
- Cross section (flexible) (min.)
0.50 mm²
- Cross section (flexible) (max.)
10 mm²
- Cross section (inflexible) (min.)
0.50 mm²
- Cross section (inflexible) (max.)
10 mm²
- Clamp width
8 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Grey
- Nominal current
30 A
- Nominal current - rounded value
30 A
- Nominal voltage
500 V
- Min. stripping length
13 mm
- Stripping length (max.)
15 mm
- Manufacturer part #
2007-8811/044-000
- Content
20 pc(s)
- Type
2007-8811/044-000
- Dim
(L x W x H) 99.60 x 8 x 65.30 mm
- Width
8 mm
- Height
65.30 mm
- Length
99.60 mm
- Flammability rating
V0
- Connector colour
Grey
- Insulation material
Thermoplastic
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1931690 WAGO 2007-8811/044-000 Dual port N/test terminal 8 mm Push-in connector Grey 20 pc(s)
User & Safety Instructions
User & Safety Instructions 1931690 WAGO 2007-8811/044-000 Dual port N/test terminal 8 mm Push-in connector Grey 20 pc(s)
