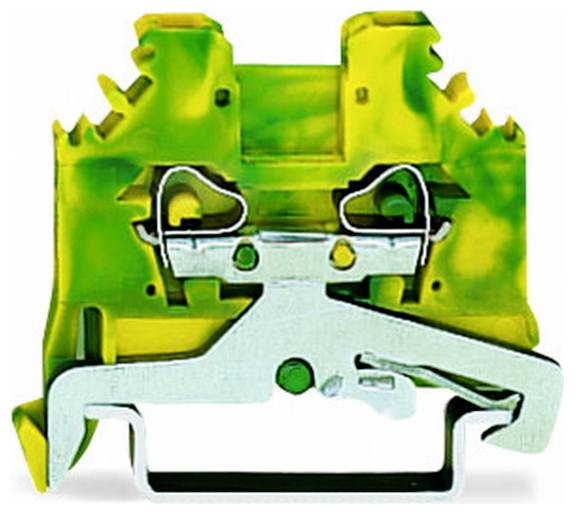

WAGO 280-107 PG terminal Spring-loaded connector Green, Yellow 1 pc(s)

2-conductor protective conductor terminal; 2.5 mm²; lateral labeling receptacles; for mounting rails 35 x 15 and 35 x 7.5; CAGE CLAMP®; 2.50 mm²; green-yellow protective conductor series 280 with CAGE CLAMP®With this protective conductor terminal (article number 280-107), a fast and reliable connection is in the foreground. This earth conductor terminal requires insulation with lengths between 8 and 9 mm for the conductor connection. Protective conductor terminals are connected directly to the rail through an integrated contact base. This creates an electrical and mechanical connection between the electrical conductors and the mounting base. This product uses CAGE CLAMP® technology. With the CAGE CLAMP® universal connector, you have a reliable and maintenance-free connection technology for connecting all types of conductors with a cage tension spring. There is no need for pre-treatment of the conductors, for example by crimping of wire end sleeves. Depending on the type of conductor, this protective conductor terminal is made for conductor cross-sections from 0.08 mm² to 2.5 mm². Actuation is performed via actuator tool for this through terminal block.

This text is machine translated.
