Name: WAGO 862-2605 Appliance connector 60 mm Spring-loaded terminal Configuration: no PE enclosure contact White 200 pc(s) Pi
Brand: WAGO
SKU: 657278

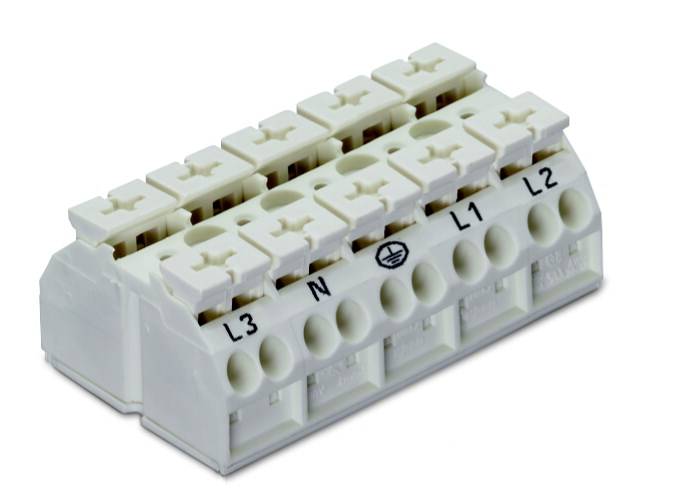

White plastic terminal strip with labels 'L3', 'N', 'L1', 'L2'. Suitable for electrical wiring.

'Technical drawing of an electrical connector. Left: detailed view with dimensions, right: side view with vertical measurements.'

White electrical terminal block labelled 'L1', 'L2', 'L3', 'N'. Suitable for use in electrical circuits.

1/3

Packaging type

Piece

Product type

Appliance connector

Connection

Spring-loaded terminal

Cross section (flexible) (max.)

4 mm²

Cross section (inflexible) (max.)

4 mm²

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Spring-loaded terminal

862-2605

Technical specifications

Packaging type: Piece

Product type: Appliance connector

Features: + CAGE CLAMP®

Connection: Spring-loaded terminal

Configuration: no PE enclosure contact

Cross section (flexible) (min.): 0.50 mm²

Cross section (flexible) (max.): 4 mm²

Cross section (inflexible) (min.): 0.50 mm²

Cross section (inflexible) (max.): 4 mm²

AWG (min.): 20

AWG max.: 12

Clamp width: 60 mm

No. of rows: 1

Pins per row: 5

Number of pins: 5

Factory colour: White

Nominal voltage: 500 V

Min. stripping length: 10 mm

Stripping length (max.): 11 mm

Manufacturer part #: 862-2605

Content: 200 pc(s)

Industrial packaging: Yes

Type: 862-2605

Dim: (L x W x H) 27.50 x 60 x 35 mm

Width: 60 mm

Height: 35 mm

Length: 27.50 mm

Flammability rating: V0

Insulation material: Thermoplastic

UKCA: not relevant

Variants(All information is without VAT, plus shipping costs)
