Name: WAGO 862-594 Appliance connector 48 mm Spring-loaded terminal Configuration: no PE enclosure contact Black 200 pc(s) Pie
Brand: WAGO
SKU: 657247

Black, rectangular connector block with six pole connections. Suitable for connecting electrical wires in devices.

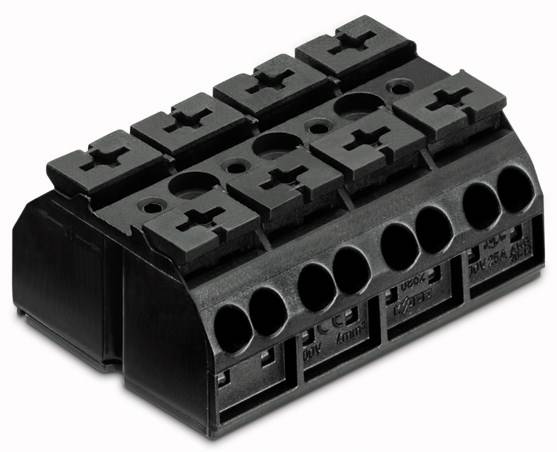

Black terminal block with multiple connection options, suitable for electrical connections and wired assemblies.

Technical drawing of a connector with dimensions: width 60 mm, 48 mm, 36 mm, 24 mm; height 22.3 mm, width 35 mm.

1/3

Packaging type

Piece

Product type

Appliance connector

Connection

Spring-loaded terminal

Cross section (flexible) (max.)

4 mm²

Cross section (inflexible) (max.)

4 mm²

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Spring-loaded terminal

862-594

Technical specifications

Packaging type: Piece

Product type: Appliance connector

Features: + CAGE CLAMP®

Connection: Spring-loaded terminal

Configuration: no PE enclosure contact

Cross section (flexible) (min.): 0.50 mm²

Cross section (flexible) (max.): 4 mm²

Cross section (inflexible) (min.): 0.50 mm²

Cross section (inflexible) (max.): 4 mm²

AWG (min.): 20

AWG max.: 12

Clamp width: 48 mm

No. of rows: 1

Pins per row: 4

Number of pins: 4

Factory colour: Black

Nominal current: 28 A

Nominal current - rounded value: 28 A

Nominal voltage: 500 V

Min. stripping length: 10 mm

Stripping length (max.): 11 mm

Manufacturer part #: 862-594

Content: 200 pc(s)

Industrial packaging: Yes

Type: 862-594

Dim: (L x W x H) 27.50 x 48.00 x 35.00 mm

Width: 48.00 mm

Height: 35.00 mm

Length: 27.50 mm

Flammability rating: V0

Connector colour: Black

Insulation material: Thermoplastic

UKCA: yes
